阿勒泰羊胚胎PDGFD基因编辑研究

doi:10.11843/j.issn.0366-6964.2025.04.019

摘要/Abstract

摘要：

旨在用CRISPR/Cas9技术生产阿勒泰羊血小板源生长因子D(PDGFD)基因SNP位点的基因编辑胚胎。本研究根据阿勒泰羊PDGFD基因脂尾性状相关的3个SNPs位点设计合成5个sgRNA (PDGFD-314-sgRNA2、PDGFD-314-sgRNA5、PDGFD-410-sgRNA、PDGFD-397-sgRNA2、PDGFD-397-sgRNA7)，结合Cas9核酸酶进行体外活性分析。电转阿勒泰羊体外受精4~5 h的胚胎Cas9-sgRNA核糖核蛋白复合物(RNP)，每组35~40枚，3次重复，培养至第7天统计囊胚率，进行基因组靶基因位点扩增及测序分析。受精卵电转PDGFD和MSTN基因(非PDGFD基因)同源重组基因编辑材料，培养至第7天统计囊胚率及进行PDGFD sgRNA脱靶效率分析。结果表明，5个sgRNA在体外均有高效的切割活性；电转受精卵的存活率和卵裂率与对照组差异均不显著(P>0.05)，但电转组囊胚率显著低于对照组(P < 0.05)。PDGFD-397-sgRNA2在绵羊体外胚胎中的编辑效率均高于其它sgRNAs。PDGFD-397-sgRNA2在绵羊基因组上错配1个碱基的脱靶位点有19个，覆盖在外显子区的基因有CFDP1，APOO，PCDH11X等；错配2个碱基的位点有31个，覆盖在外显子区的基因有TIMM17B、C1H1orf228和TLL1等。电转PDGFD和MSTN基因同源重组编辑材料，两组胚胎的存活率和卵裂率差异不显著(P>0.05)，但前者的囊胚率显著低于后者(P < 0.0 5)。本研究结果表明，阿勒泰羊PDGFD基因尾脂性状相关SNP位点的CRISPR/Cas9编辑显著降低体外胚胎的囊胚率，因此，PDGFD基因可能影响绵羊早期胚胎的发育。综上所述，PDGFD基因可能对绵羊胚胎的早期发育有着重要的作用。

关键词: 电转, CRISPR/Cas9, PDGFD, 胚胎发育

Abstract:

The study aimed to generate gene edited embryos of single nucleotide polymorphisms (SNPs) of platelet-derived growth factor D (PDGFD) gene in Altay sheep using CRISPR/Cas9 technology. Five sgRNAs (PDGFD-314-sgRNA2, PDGFD-314-sgRNA5, PDGFD-410-sgRNA, PDGFD-397-sgRNA2, PDGFD-397-sgRNA7) were designed and synthesized based on 3 SNP loci related to lipid tail traits of PDGFD gene in Altay sheep, combined with Cas9 nuclease for in vitro activity analysis. Electroporation of Cas9-sgRNA ribonucleoprotein (RNP) in Altay sheep embryos 4-5 h after in vitro fertilization, 35-40 embryos per group, triple repetition. The blastocyst rate was counted on the 7th day of in vitro culture, and the genomic target gene loci were amplified and sequenced. PDGFD and MSTN genes (non-PDGFD gene) homologous recombination gene editing materials were electroporated into zygotes, and the blastocyst rate and PDGFD sgRNA off-target efficiency were analyzed on the 7th day of culture. All 5 sgRNAs had high cleavage activity in vitro. There was no significant difference in the survival rate and cleavage rate between the electroporated zygotes and control groups (P>0.05), but the blastocyst rate in the electroporation group was significantly lower than that in the control group (P < 0.05). The editing efficiency of PDGFD-397-sgRNA2 was higher than other sgRNAs in embryos. There were 19 off-target sites with one-base mismatch of PDGFD-397-sgRNA2 in the sheep genome, and the genes covering the exon region included CFDP1, APOO, PCDH11X, etc. There were 31 2-base mismatch sites, and TIMM17B, C1H1orf228 and TLL1 genes covered the exon region. PDGFD and MSTN genes homologous recombination editing materials were electroperforated respectively, there was no significant difference in the survival rate and cleavage rate between the two groups (P>0.05), but the blastocyst rate of the PDGFD group was significantly lower than that of the MSTN group (P < 0.05). The results of this study showed that CRISPR/Cas9 editing of SNP locus related to tail fat trait of PDGFD gene in Altay sheep significantly reduced the blastocyst rate of in vitro embryos, suggesting that PDGFD gene may affect the early embryo development of sheep. In conclusion, PDGFD gene may play an important role in the early development of ovine embryo.

Key words: electric transmission, CRISPR/Cas9, PDGFD, embryonic development

中图分类号:

S826.2

马秀玲, 张欣如, 陈莹, 梁红艳, 古丽米热·阿布都热依木, 汪立芹, 林嘉鹏, 李伟健, 王旭光, 吴阳升. 阿勒泰羊胚胎PDGFD基因编辑研究[J]. 畜牧兽医学报, 2025, 56(4): 1700-1711.

MA Xiuling, ZHANG Xinru, CHEN Ying, LIANG Hongyan, ABDUREYIMU Gulimire, WANG Liqin, LIN Jiapeng, LI Weijian, WANG Xuguang, WU Yangsheng. PDGFD Gene Editing in Altay Sheep Embryos[J]. Acta Veterinaria et Zootechnica Sinica, 2025, 56(4): 1700-1711.

图/表 10

表 1

表 2

表 3

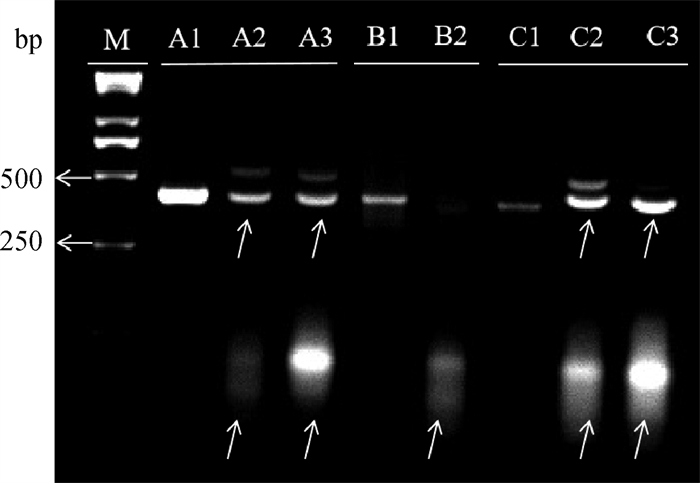

图 1

表 4

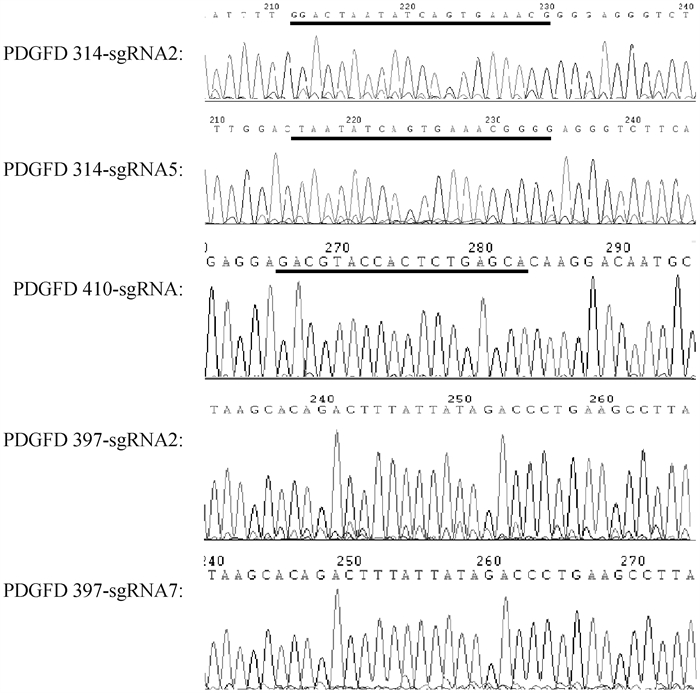

图 2

表 5

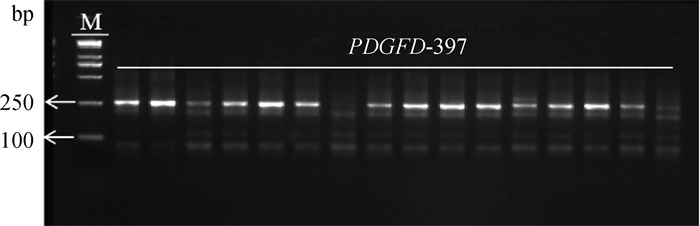

图 3

图 4

表 6

参考文献 40

1	FARHADI S , HASANPUR K , GHIAS J S , et al. Comprehensive gene expression profiling analysis of adipose tissue in male individuals from fat-and thin tailed sheep breeds[J]. Animals (Basel), 2023, 13 (22): 3475.
2	张越, 曹贵方. 绵羊尾脂沉积的研究进展[J]. 当代畜禽养殖业, 2022 (4): 16- 18. doi: 10.3969/j.issn.1005-5959.2022.04.006
	ZHANG Y , CAO G F . Research progress on tail fat deposition in sheep[J]. Journal of Contemporary Livestock and Poultry Industry, 2022 (4): 16- 18. doi: 10.3969/j.issn.1005-5959.2022.04.006
3	甘尚权, 张伟, 沈敏, 等. 绵羊X染色体59578440位点多态分析及其与尾(臀)脂性状相关性研究[J]. 新疆农业科学, 2013, 50 (12): 2311- 2316.
	GAN S Q , ZHANG W , SHEN M , et al. Polymorphism analysis of 59578440 locus on X chromosome of sheep and its correlation with tail (hip) fat traits[J]. Xinjiang Agricultural Sciences, 2013, 50 (12): 2311- 2316.
4	马林. 绵羊尾脂沉积相关lncRNA的比较转录组研究[D]. 杨凌: 西北农林科技大学, 2018.
	MA L. Comparative transcriptome study of lncRNA related to tail fat deposition in sheep[D]. Yangling: Northwest A&F University, 2018. (in Chinese)
5	宋淑珍, 刘俊斌, 朱才业, 等. 断尾对兰州大尾羊生长性能、脂肪沉积分布和屠宰性能的影响[J]. 畜牧兽医学报, 2023, 54 (2): 642- 655. doi: 10.11843/j.issn.0366-6964.2023.02.021
	SONG S Z , LIU J B , ZHU C Y , et al. Effects of tail docking on growth performance, fat deposition distribution and slaughter performance of Lanzhou fat-tailed sheep[J]. Acta Veterinaria et Zootechnica Sinica, 2023, 54 (2): 642- 655. doi: 10.11843/j.issn.0366-6964.2023.02.021
6	孟秋赤, 卢光玉, 陈定双, 等. 山羊GPR35基因表达特性分析及对皮下脂肪细胞分化作用的研究[J]. 畜牧兽医学报, 2023, 54 (12): 4993- 5007. doi: 10.11843/j.issn.0366-6964.2023.12.011
	MENG Q C , LU G Y , CHEN D S , et al. Expression characteristics of GPR35 gene in goat and its effect on subcutaneous adipocyte differentiation[J]. Acta Veterinaria et Zootechnica Sinica, 2023, 54 (12): 4993- 5007. doi: 10.11843/j.issn.0366-6964.2023.12.011
7	ROSEN E D , MACDOGALD O A . Adipocyte differentiation from the inside out[J]. Nat Rev Mol Cell Biol, 2006, 7 (12): 885- 896. doi: 10.1038/nrm2066
8	梁慧丽, 解玉静, 司博文, 等. 基于全基因组重测序分析大尾寒羊基因组变异特征和群体结构[J]. 畜牧兽医学报, 2024, 55 (11): 4968- 4979. doi: 10.11843/j.issn.0366-6964.2024.11.016
	LIANG H L , XIE Y J , SI B W , et al. Analysis of genome variation and population structure of large tail Han sheep based on whole genome resequencing[J]. Acta Veterinaria et Zootechnica Sinica, 2024, 55 (11): 4968- 4979. doi: 10.11843/j.issn.0366-6964.2024.11.016
9	王铁男, 刘莉. 羊尾脂的研究及利用现状[J]. 草食家畜, 2021 (3): 6- 10.
	WANG T N , LIU L . Research and utilization status of sheep tail fat[J]. Herbivorous Livestock, 2021 (3): 6- 10.
10	马丽娜, 马青, 李颖康. 滩羊尾脂组织候选基因mRNA表达量分析研究[J]. 畜牧与饲料科学, 2018, 39 (9): 19- 23.
	MA L N , MA Q , LI Y K . Analysis of mRNA expression levels of candidate genes in Tan sheep tail fat tissue[J]. Animal Husbandry and Feed Science, 2018, 39 (9): 19- 23.
11	李星艳, 王世银, 许瑞霞, 等. 阿勒泰羊CFD基因的克隆及其在不同营养状态阿勒泰羊尾脂中的表达分析[J]. 新疆农业科学, 2016, 53 (6): 1136- 1144.
	LI X Y , WANG S Y , XU R X , et al. Cloning of CFD gene in Altay sheep and its expression analysis in tail fat of Altay sheep under different nutritional states[J]. Xinjiang Agricultural Sciences, 2016, 53 (6): 1136- 1144.
12	赵伟利. 脂肪组织差异表达基因RETN、CAV1、PLA2G16与阿勒泰羊尾脂沉积代谢关系的研究[D]. 石河子: 石河子大学, 2015.
	ZHAO W L. Study on the relationship between differentially expressed genes RETN, CAV1, PLA2G16 in adipose tissue and tail fat deposition metabolism of Altay sheep[D]. Shihezi: Shihezi University, 2015. (in Chinese)
13	许瑞霞. 阿勒泰大尾羊FABP4、ADIPOQ和CFD基因分子克隆及其组织差异性表达的研究[D]. 石河子: 石河子大学, 2015.
	XU R X. Molecular cloning of FABP4, ADIPOQ and CFD genes in Altay fat-tailed sheep and study on their tissue differential expression[D]. Shihezi: Shihezi University, 2015. (in Chinese)
14	LI X , YANG J , SHEN M , et al. Whole-genome resequencing of wild and domestic sheep identifies genes associated with morphological and agronomic traits[J]. Nat Commun, 2020, 11 (1): 2815. doi: 10.1038/s41467-020-16485-1
15	DONG K , YANG M , HAN J , et al. Genomic analysis of worldwide sheep breeds reveals PDGFD as a major target of fat-tail selection in sheep[J]. BMC Genomics, 2020, 21 (1): 800. doi: 10.1186/s12864-020-07210-9
16	PAN Z , LI S , LIU Q , et al. Rapid evolution of a retro-transposable hotspot of ovine genome underlies the alteration of BMP2 expression and development of fat tails[J]. BMC Genomics, 2019, 20 (1): 261. doi: 10.1186/s12864-019-5620-6
17	ZHU C , LI N , CHENG H , et al. Genome wide association study for the identification of genes associated with tail fat deposition in Chinese sheep breeds[J]. Biol Open, 2021, 10 (5): bio054932. doi: 10.1242/bio.054932
18	LI Q , LU Z , JIN M , et al. Verification and Analysis of Sheep Tail Type-Associated PDGF-D Gene Polymorphisms[J]. Animals (Basel), 2020, 10 (1): 89.
19	XU Y X , WANG B , JING J N , et al. Whole-body adipose tissue multi-omic analyses in sheep reveal molecular mechanisms underlying local adaptation to extreme environments[J]. Commun Biol, 2023, 6 (1): 159. doi: 10.1038/s42003-023-04523-9
20	KALDS P , HUANG S , ZHOU S , et al. ABE-induced PDGFD start codon silencing unveils new insights into the genetic architecture of sheep fat tails[J]. J Genet Genomics, 2023, 50 (12): 1022- 1025. doi: 10.1016/j.jgg.2023.07.008
21	HOSAKA K , WANG C , ZHANG S , et al. Perivascular localized cells commit erythropoiesis in PDGF-B-expressing solid tumors[J]. Cancer Commun (Lond), 2023, 43 (6): 637- 660. doi: 10.1002/cac2.12423
22	BERNARD M , MENET R , LECORDIER S , et al. Endothelial PDGF-D contributes to neurovascular protection after ischemic stroke by rescuing pericyte functions[J]. Cell Mol Life Sci, 2024, 81 (1): 225. doi: 10.1007/s00018-024-05244-w
23	WENG Z , AHMAD A , LI Y , et al. Emerging roles of PDGF-D signaling pathway in tumor development and progression[J]. Biochim Biophys Acta, 2010, 1806 (1): 122- 30.
24	刘洁琼. PDGF-D在乳腺癌进展、转移及化疗药物运输中的作用和机制研究[D]. 长沙: 中南大学, 2011.
	LIU J Q. The role and mechanism of PDGF-D in breast cancer progression, metastasis and chemotherapy drug delivery[D]. Changsha: Central South University, 2011. (in Chinese)
25	JUNG S C , KANG D , KO E A . Roles of PDGF/PDGFR signaling in various organs[J]. Korean J Physiol Pharmacol, 2024, doi: 10.4196/kjpp.24.309
26	汪立芹, 何宗霖, 林嘉鹏, 等. 萨福克羔羊卵泡诱导发育效果的研究[J]. 中国农业大学学报, 2015, 20 (4): 141- 146.
	WANG L Q , HE Z L , LIN J P , et al. Study on the effect of follicle-induced development in Saffoke lambs[J]. Journal of China Agricultural University, 2015, 20 (4): 141- 146.
27	王宇辉. PDGFD基因编辑对滩羊胎儿期脂尾发育的影响研究[D]. 杨凌: 西北农林科技大学, 2024.
	WANG Y H. Effects of PDGFD gene editing on fetal fat tail development of Tan sheep[D]. Yangling: Northwest A&F University, 2024. (in Chinese)
28	KALDS T G P. 基于基因组编辑和组学分析的绵羊PDGFD基因功能研究[D]. 杨凌: 西北农林科技大学, 2022.
	KALDS T G P. Functional study of PDGFD gene in sheep based on genome editing and omics analysis[D]. Yangling: Northwest A&F University, 2022. (in Chinese)
29	LU W , XU P , DENG B , et al. PDGFD switches on stem cell endothelial commitment[J]. Angiogenesis, 2022, 25 (4): 517- 533. doi: 10.1007/s10456-022-09847-4
30	KIM H J, ChENG P, TRAVISANO S, et al. Molecular mechanisms of coronary artery disease risk at the PDGFD locus[DB/OL]. bioRxiv[Preprint]. 2023: 2023.01.26.525789.
31	WENG Y , CHEN N , ZHANG R , et al. An integral blood-brain barrier in adulthood relies on microglia-derived PDGFB[J]. Brain Behav Immun, 2024, 115, 705- 717. doi: 10.1016/j.bbi.2023.11.023
32	CRISPO M , MULET A P , TESSON L , et al. Efficient generation of myostatin knock-out sheep using CRISPR/Cas9 technology and microinjection into zygotes[J]. PLoS One, 2015, 10 (8): e0136690. doi: 10.1371/journal.pone.0136690
33	GIM G M , KWON D H , EOM K H , et al. Production of MSTN-mutated cattle without exogenous gene integration using CRISPR-Cas9[J]. Biotechnol J, 2022, 17 (7): e2100198. doi: 10.1002/biot.202100198
34	GUO R , WANG H , MENG C , et al. Efficient and specific generation of MSTN-edited Hu sheep using C-CRISPR[J]. Genes (Basel), 2023, 14 (6): 1216. doi: 10.3390/genes14061216
35	PI W , FENG G , LIU M , et al. Electroporation delivery of Cas9 sgRNA ribonucleoprotein-mediated genome editing in sheep IVF zygotes[J]. Int J Mol Sci, 2024, 25 (17): 9145. doi: 10.3390/ijms25179145
36	PAPPANO W N , STEILITZ B M , SCOTT I C , et al. Use of Bmp1/Tll1 doubly homozygous null mice and proteomics to identify and validate in vivo substrates of bone morphogenetic protein 1/tolloid-like metalloproteinases[J]. Mol Cell Biol, 2003, 23 (13): 4428- 4438. doi: 10.1128/MCB.23.13.4428-4438.2003
37	CHU LF , LENG N , ZHANG J , ET al . Single-cell RNA-seq reveals novel regulators of human embryonic stem cell differentiation to definitive endoderm[J]. Genome Biol, 2016, 17 (1): 173. doi: 10.1186/s13059-016-1033-x
38	CELAURO E , CARRA S , RODRIGUEZ A , et al. Functional analysis of the cfdp1 gene in zebrafish provides evidence for its crucial role in craniofacial development and osteogenesis[J]. Exp Cell Res, 2017, 361 (2): 236- 245. doi: 10.1016/j.yexcr.2017.10.022
39	孙珂欣. 滩羊PDGFD基因对其尾部脂肪沉积的影响研究[D]. 杨凌: 西北农林科技大学, 2022.
	SUN K X. Effect of PDGFD gene on tail fat deposition of Tan sheep[D]. Yangling: Northwest A&F University, 2022. (in Chinese)
40	KALDS P , LUO Q , SUN K , et al. Trends towards revealing the genetic architecture of sheep tail patterning: Promising genes and investigatory pathways[J]. Anim Genet, 2021, 52 (6): 799- 812. doi: 10.1111/age.13133

序号 Number	sgRNA名称 Name of sgRNA	核心序列 Core sequence	基因位置 Location of genes
1	PDGFD-314-sgRNA2	GGACTAATATCAGTGAAACG	Oar_v3.1，Chr15:3859314
2	PDGFD-314-sgRNA5	CTAATATCAGTGAAACGGGG	Oar_v3.1，Chr15:3859314
3	PDGFD-410-sgRNA	GACGTACCACTCTGAGCACA	Oar_v.4.0, Chr15:3904410
4	PDGFD-397-sgRNA2	TCAGTGCCTGGCTCAAATAG	Oar_Rambouillet v1.0, Chr15:4172397
5	PDGFD-397-sgRNA7	TGGCTCAAATAGCGGCTTGT	Oar_Rambouillet v1.0, Chr15:4172397

序号 Number	引物名称 Primer name	引物序列 Primer sequence	产物/bp Product
1	PDGFD-410-F1	TCTGTTGTCGCTTAGAGTTT	616
2	PDGFD-410-F2	AAAAGTGAAAGGGAAGTCG	415
3	PDGFD-410-R	TAGAAGGATGGCAGAAAGG
4	PDGFD-314-F1	AAAATGAGTGGTATGTGGGTG	597
5	PDGFD-314-F2	GGGCTAAGGTCCCTGGAGT	409
6	PDGFD-314-R	GGGAAATTCTTGTGGCAGT
7	PDGFD-397-F	GATTGCCCTCCAGATACCA
8	PDGFD-397-R1	GAGTGGTCTAAGCGGTTTT	746
9	PDGFD-397-R2	CTGCTTCATTCCACCTTCC	474
10	PDGFD-397-HIT-F	ggagtgagtacggtgtgcGATTGCCCTCCAGATACCA	262
11	PDGFD-397-HIT-R	gagttggatgctggatggGGACTGTCCCTCTTTGGGT

位点 Site	PDGFD SNP位点[文献] SNP loci in PDGFD	哈萨克羊对应位置及碱基类型 Kazakh sheep corresponding position and base type
1	Oar_v3.1：Chr15:3622093(C>T)^[16]	3 817 380 (T)
2	Oar_v3.1：Chr15:3859314(T>C)^[15]	4 066 876 (C)
3	Oar_v3.1：Chr15:4031794(A>C)^[17]	4 242 267 (G)
4	Oar_v.4.0：Chr15:3852134(C>T)^[18]	4 055 473 (C)
5	Oar_v.4.0：Chr15:3904410(G>A)^[14]	4 107 625 (A)
6	Oar_v.4.0：Chr15:4122606(C>G)^[18]	4 326 797 (G)
7	Oar_Rambouillet v1.0：Chr15:4172397(A>G)^[19]	3 827 484 (G)

编辑类型 Editing type	总卵数/枚 Total number of oocytes	死亡率/% Mortality rate	24 h卵裂率/% 24 h cleavage rate	48 h卵裂率/% 48 h cleavage rate	7 d囊胚率/% Blastocyst rate on day 7
PDGFD-314-sgRNA2	109	11.96±0.04	46.42±0.12	90.37±0.09	35.70±0.02^B
PDGFD-314-sgRNA5	107	12.22±0.09	42.24±0.04	89.86±0.10	39.92±0.05^b
PDGFD-410-sgRNA	109	16.98±0.09	44.00±0.12	93.75±0.08	36.77±0.01^B
PDGFD-397-sgRNA2	112	19.03±0.09	42.60±0.13	90.33±0.13	32.12±0.10^B
PDGFD-397-sgRNA7	115	10.95±0.06	45.55±0.12	90.69±0.03	36.20±0.01^B
对照组Control	118	1.60±0.03	49.89±0.02	79.34±0.08	57.73±0.05^Aa

编辑类型 Editing type	总卵数/枚 Total number of oocytes	死亡率/% Mortality rate	24 h卵裂率/% 24 h cleavage rate	48 h卵裂率/% 48 h cleavage rate	7 d囊胚率/% Blastocyst rate on day 7
PDGFD-397-sgRNA2电转编辑组 PDGFD-397-sgRNA2 electrotransfer editing group	131.00	7.36±0.08	54.31±0.91	94.26±0.06	29.68±0.00^b
MSTN电转编辑组 MSTN electrotransfer editing group	120.00	11.79±0.06	60.67±0.14	92.81±0.02	51.99±0.15^a
