基于计算机视觉技术的猪肌内脂肪含量和眼肌面积测定系统的研发

doi:10.11843/j.issn.0366-6964.2024.09.010

畜牧兽医学报 ›› 2024, Vol. 55 ›› Issue (9): 3843-3852.doi: 10.11843/j.issn.0366-6964.2024.09.010

基于计算机视觉技术的猪肌内脂肪含量和眼肌面积测定系统的研发

陈栋¹^,²^,³(), 周文譞¹^,²^,³, 赵真坚¹^,²^,³, 申琦¹^,²^,³, 余杨¹^,²^,³, 崔晟頔¹^,²^,³, 王俊戈¹^,²^,³, 陈子旸¹^,²^,³, 禹世欣¹^,²^,³, 陈佳苗¹^,²^,³, 王翔枫¹^,²^,³, 吴平先⁴, 郭宗义⁴, 王金勇⁴, 唐国庆¹^,²^,³^,*()

1. 四川农业大学动物科技学院，猪禽种业全国重点实验室，成都 611130
2. 四川农业大学动物科技学院，农业农村部畜禽生物组学重点实验室，成都 611130
3. 四川农业大学“畜禽遗传资源发掘与创新利用四川省重点实验室”，成都 611130
4. 国家生猪技术创新中心，重庆 402460

收稿日期:2024-03-18 出版日期:2024-09-23 发布日期:2024-09-27
通讯作者: 唐国庆 E-mail:1123278154@qq.com;tyq003@163.com
作者简介:陈栋(1997-)，男，宁夏银川人，博士，主要从事动物遗传育种相关研究，E-mail: 1123278154@qq.com
基金资助:
国家生猪技术创新中心先导科技项目(NCTIP-XD/B01);四川省科技厅项目(2020YFN0024);四川省科技厅项目(2021ZDZX0008);四川省科技厅项目(2021YFYZ0030);四川省猪创新团队(sccxtd-2022-08)

Development of a Pig Intramuscular Fat Content and Eye Muscle Area Measurement System Based on Computer Vision Technology

Dong CHEN¹^,²^,³(), Wenxuan ZHOU¹^,²^,³, Zhenjian ZHAO¹^,²^,³, Qi SHEN¹^,²^,³, Yang YU¹^,²^,³, Shengdi CUI¹^,²^,³, Junge WANG¹^,²^,³, Ziyang CHEN¹^,²^,³, Shixin YU¹^,²^,³, Jiamiao CHEN¹^,²^,³, Xiangfeng WANG¹^,²^,³, Pingxian WU⁴, Zongyi GUO⁴, Jinyong WANG⁴, Guoqing TANG¹^,²^,³^,*()

1. State Key Laboratory of Swine and Poultry Breeding Industry, College of Animal Science and Technology, Sichuan Agricultural University, Chengdu 611130, China
2. Key Laboratory of Livestock and Poultry Multi-omics of Ministry of Agriculture and Rural Affairs, College of Animal Science and Technology, Sichuan Agricultural University, Chengdu 611130, China
3. Farm Animal Genetic Resources Exploration and Innovation Key Laboratory of Sichuan Province, Sichuan Agricultural University, Chengdu 611130, China
4. National Center of Technology Innovation for Pigs, Chongqing 402460, China

Received:2024-03-18 Online:2024-09-23 Published:2024-09-27
Contact: Guoqing TANG E-mail:1123278154@qq.com;tyq003@163.com

摘要/Abstract

摘要：

旨在开发基于计算机视觉技术的猪肉质图像快速鉴别方法，为解决猪肉质传统测定方法缺陷和构建猪肉质快速测定系统奠定技术基础。本研究采用canny边缘检测算法、归一化、伽马校正、自适应直方图均衡化和阈值化等方法进行图像处理，利用二维信息模拟了猪背最长肌的三维模型，开发了基于图像的猪肌内脂肪含量计算机视觉测定方法。利用人工描绘和计算机视觉轮廓搜寻技术开发了基于图像处理的眼肌面积识别方法。利用Open CV和C++实现各方法的底层算法程序，研发了一套猪肌内脂肪含量和眼肌面积的测定系统，并利用250头不同品种的试验猪进行了应用测试。测试结果显示，肌内脂肪含量检测模块能够快速实现肌内脂肪图形信息的提取与预测，单个样品检测时间平均不超过2 min，准确性可达0.54，且测定离散系数为0.062，具有较强的稳定性。眼肌面积与背膘厚检测模块能够通过人工与计算机结合的方式快速测定眼肌面积和背膘厚。本研究建立的检测方法和软件系统能够实现猪肌内脂肪含量、背膘厚和眼肌面积的快速检测。

关键词: 计算机视觉, 图像处理, 肌内脂肪含量, 猪

Abstract:

The aim of this study was to develop a rapid identification method of pork quality images based on computer vision technology, and to lay a technical foundation for solving the defects of traditional pork quality determination methods and constructing a rapid pork quality determination system. In this study, canny edge detection algorithm, normalization, gamma correction, adaptive histogram equalization and thresholding were used for image processing to simulate a three-dimensional model of porcine dorsal longest muscle using two-dimensional information, and an image-based computer vision method for determining porcine intramuscular fat content was developed. An image-processing-based eye muscle area recognition method was developed using manual depiction and computer vision contour search techniques. The underlying algorithmic programs of each method were implemented using Open CV and C++, and a system for the determination of porcine intramuscular fat content and eye muscle area was developed and tested using 250 test pigs of different breeds. The test results showed that the intramuscular fat content detection module could quickly realize the extraction and prediction of intramuscular fat graphical information, with an average detection time of no more than 2 minutes for a single sample, an accuracy of up to 0.54, and a discrete coefficient of 0.062, which was highly stable. The eye muscle area and backfat thickness detection module can quickly determine eye muscle area and backfat thickness by combining manual and computerized methods. The assay method and software system developed in this study enable rapid detection of intramuscular fat content, backfat thickness and eye muscle area in pigs.

Key words: computer vision, image processing, intramuscular fat content, pig

中图分类号:

S828.2

陈栋, 周文譞, 赵真坚, 申琦, 余杨, 崔晟頔, 王俊戈, 陈子旸, 禹世欣, 陈佳苗, 王翔枫, 吴平先, 郭宗义, 王金勇, 唐国庆. 基于计算机视觉技术的猪肌内脂肪含量和眼肌面积测定系统的研发[J]. 畜牧兽医学报, 2024, 55(9): 3843-3852.

Dong CHEN, Wenxuan ZHOU, Zhenjian ZHAO, Qi SHEN, Yang YU, Shengdi CUI, Junge WANG, Ziyang CHEN, Shixin YU, Jiamiao CHEN, Xiangfeng WANG, Pingxian WU, Zongyi GUO, Jinyong WANG, Guoqing TANG. Development of a Pig Intramuscular Fat Content and Eye Muscle Area Measurement System Based on Computer Vision Technology[J]. Acta Veterinaria et Zootechnica Sinica, 2024, 55(9): 3843-3852.

图/表 6

图 1

图 2

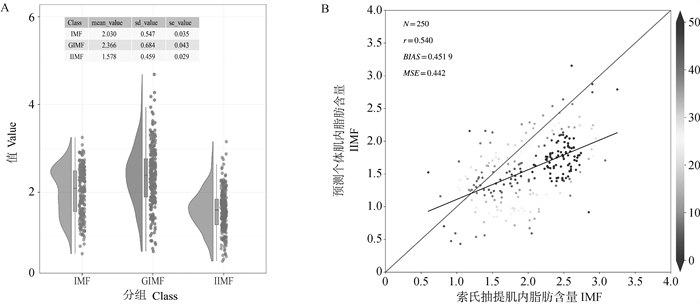

图 3

表 1

表 2

图 4

参考文献 41

1	崔晟頔, 王凯, 赵真坚, 等. 利用GWAS和DNA甲基化共定位鉴定猪肉质性状的候选基因[J]. 畜牧兽医学报, 2024, 55 (5): 1945- 1957.
	CUI S D , WANG K , ZHAO Z J , et al. Identification of candidate genes for pork texture traits using GWAS combined with Co-localisation of DNA methylation[J]. Acta Veterinaria et Zootechnica Sinica, 2024, 55 (5): 1945- 1957.
2	DREWNOWSKI A . Perspective: the place of pork meat in sustainable healthy diets[J]. Adv Nutr, 2024, 15 (5): 100213. doi: 10.1016/j.advnut.2024.100213
3	张润, 刘海, 杨曼, 等. 北京黑猪肌内脂肪含量高、低组间脂质组差异分析[J]. 畜牧兽医学报, 2022, 53 (9): 3262- 71.
	ZHANG R , LIU H , YANG M , et al. Analysis of lipidome difference between high and low intramuscular fat content groups in Beijing Black Pigs[J]. Acta Veterinaria et Zootechnica Sinica, 2022, 53 (9): 3262- 3271.
4	LIM K S , LEE K T , PARK J E , et al. Identification of differentially expressed genes in longissimus muscle of pigs with high and low intramuscular fat content using RNA sequencing[J]. Anim Genet, 2017, 48 (2): 166- 174. doi: 10.1111/age.12518
5	GUO Z Y , CHEN X L , CHEN D W , et al. Effects of slaughter age on carcass traits and meat quality of crossbred (Duroc×Landrace×Yorkshire) finishing pigs[J]. Anim Biotechnol, 2022, 33 (2): 339- 345. doi: 10.1080/10495398.2021.1916512
6	GONG X L , ZHENG M , ZHANG J , et al. Transcriptomics-based study of differentially expressed genes related to fat deposition in Tibetan and Yorkshire Pigs[J]. Front Vet Sci, 2022, 9, 919904. doi: 10.3389/fvets.2022.919904
7	高振伟. 一种全自动测膘情和眼肌系统[J]. 湖北农机化, 2019, (21): 138. doi: 10.3969/j.issn.1009-1440.2019.21.106
	GAO Z W . A fully automated fat and eye muscle measurement system[J]. Hubei Agricultural Mechanization, 2019, (21): 138. doi: 10.3969/j.issn.1009-1440.2019.21.106
8	FOLCH J , LEES M , SLOANE STANLEY G H . A simple method for the isolation and purification of total lipides from animal tissues[J]. J Biol Chem, 1957, 226 (1): 497- 509. doi: 10.1016/S0021-9258(18)64849-5
9	杨海悦. 肌纤维内脂肪含量测定方法的建立及其与肌肉相关基因表达的相关分析[D]. 南京: 南京农业大学, 2021.
	YANG H Y. The establishment of a method for measuring intrafiber fat content and its correlation withmuscle-related genes[D]. Nanjing: Nanjing Agricultural University, 2021. (in Chinese)
10	LIN Y D , MA J , WANG Q J , et al. Applications of machine learning techniques for enhancing nondestructive food quality and safety detection[J]. Crit Rev Food Sci Nutr, 2023, 63 (12): 1649- 1669. doi: 10.1080/10408398.2022.2131725
11	HE Y , BAI X L , XIAO Q L , et al. Detection of adulteration in food based on nondestructive analysis techniques: a review[J]. Crit Rev Food Sci Nutr, 2021, 61 (14): 2351- 2371. doi: 10.1080/10408398.2020.1777526
12	ZHANG L H , ZHANG M , MUJUMDAR A S . Technological innovations or advancement in detecting frozen and thawed meat quality: a review[J]. Crit Rev Food Sci Nutr, 2023, 63 (11): 1483- 1499. doi: 10.1080/10408398.2021.1964434
13	MUNEKATA P E S , FINARDI S , DE SOUZA C K , et al. Applications of electronic nose, electronic eye and electronic tongue in quality, safety and shelf life of meat and meat products: a review[J]. Sensors (Basel), 2023, 23 (2): 672. doi: 10.3390/s23020672
14	TANG X , RAO L , XIE L , et al. Quantification and visualization of meat quality traits in pork using hyperspectral imaging[J]. Meat Sci, 2023, 196, 109052. doi: 10.1016/j.meatsci.2022.109052
15	KATEMALA S , MOLEE A , THUMANU K , et al. A comparative study of meat quality and vibrational spectroscopic properties of different chicken breeds[J]. Poult Sci, 2022, 101 (6): 101829. doi: 10.1016/j.psj.2022.101829
16	FAN K J , SU W H . Applications of fluorescence spectroscopy, RGB- and MultiSpectral imaging for quality determinations of white meat: a review[J]. Biosensors (Basel), 2022, 12 (2): 76.
17	PEREZ DE VARGAS-SANSALVADOR I M , ERENAS M M , MARTíNEZ-OLMOS A , et al. Smartphone based meat freshness detection[J]. Talanta, 2020, 216, 120985. doi: 10.1016/j.talanta.2020.120985
18	COLLINS L M , SMITH L M . Review: smart agri-systems for the pig industry[J]. Animal, 2022, 16 (S2): 100518.
19	PANERU S , JEELANI I . Computer vision applications in construction: current state, opportunities & challenges[J]. Autom Constr, 2021, 132 (1): 103940.
20	KAKANI V , NGUYEN V H , KUMAR B P , et al. A critical review on computer vision and artificial intelligence in food industry[J]. J Agric Food Res, 2020, 2, 100033.
21	HE H J , WU D , SUN D W . Nondestructive spectroscopic and imaging techniques for quality evaluation and assessment of fish and fish products[J]. Crit Rev Food Sci Nutr, 2015, 55 (6): 864- 886. doi: 10.1080/10408398.2012.746638
22	WEINSTEIN B G . A computer vision for animal ecology[J]. J Anim Ecol, 2018, 87 (3): 533- 545. doi: 10.1111/1365-2656.12780
23	BLEHM C , VISHNU S , KHATTAK A , et al. Computer vision syndrome: a review[J]. Surv Ophthalmol, 2005, 50 (3): 253- 262. doi: 10.1016/j.survophthal.2005.02.008
24	D'ANTONI F , RUSSO F , AMBROSIO L , et al. Artificial intelligence and computer vision in low back pain: a systematic review[J]. Int J Environ Res Public Health, 2021, 18 (20): 10909. doi: 10.3390/ijerph182010909
25	TIAN J . Computer vision and machine learning for intelligent sensing systems[J]. Sensors (Basel), 2023, 23 (9): 4214. doi: 10.3390/s23094214
26	CHEN D , WU P X , WANG K , et al. Combining computer vision score and conventional meat quality traits to estimate the intramuscular fat content using machine learning in pigs[J]. Meat Sci, 2022, 185, 108727. doi: 10.1016/j.meatsci.2021.108727
27	WAIMIN J , GOPALAKRISHNAN S , HEREDIA-RIVERA U , et al. Low-cost nonreversible electronic-free wireless pH sensor for spoilage detection in packaged meat products[J]. ACS Appl Mater Interfaces, 2022, 14 (40): 45752- 45764. doi: 10.1021/acsami.2c09265
28	ISTIF E , MIRZAJANI H , DAĞ Ç , et al. Miniaturized wireless sensor enables real-time monitoring of food spoilage[J]. Nat Food, 2023, 4 (5): 427- 436. doi: 10.1038/s43016-023-00750-9
29	NIE W G , CHEN Y F , ZHANG H , et al. A novel colorimetric sensor array for real-time and on-site monitoring of meat freshness[J]. Anal Bioanal Chem, 2022, 414 (20): 6017- 6027. doi: 10.1007/s00216-022-04176-3
30	DUAN X Y , LI Z R , WANG L , et al. Engineered nanomaterials-based sensing systems for assessing the freshness of meat and aquatic products: a state-of-the-art review[J]. Comp Rev Food Sci Food Safe, 2023, 22 (1): 430- 450. doi: 10.1111/1541-4337.13074
31	ZHOU L , ZHANG C , LIU F , et al. Application of deep learning in food: a review[J]. Comp Rev Food Sci Food Safe, 2019, 18 (6): 1793- 1811. doi: 10.1111/1541-4337.12492
32	MA J , SUN D W , QU J H , et al. Applications of computer vision for assessing quality of Agri-food products: a review of recent research advances[J]. Crit Rev Food Sci Nutr, 2016, 56 (1): 113- 127. doi: 10.1080/10408398.2013.873885
33	HUANG L , ZHAO J W , CHEN Q S , et al. Nondestructive measurement of total volatile basic nitrogen (TVB-N) in pork meat by integrating near infrared spectroscopy, computer vision and electronic nose techniques[J]. Food Chem, 2014, 145 (1): 228- 236.
34	LIU J H , SUN X , YOUNG J M , et al. Predicting pork loin intramuscular fat using computer vision system[J]. Meat Sci, 2018, 143, 18- 23. doi: 10.1016/j.meatsci.2018.03.020
35	LIN L L , GUO J X , LIU L C . Multi-scene application of intelligent inspection robot based on computer vision in power plant[J]. Sci Rep, 2024, 14 (1): 10657. doi: 10.1038/s41598-024-56795-8
36	ZHANG J J , HUANG H X , SONG G C , et al. Intelligent biosensing strategies for rapid detection in food safety: a review[J]. Biosens Bioelectron, 2022, 202, 114003. doi: 10.1016/j.bios.2022.114003
37	GUO L L , WANG T , WU Z H , et al. Portable food-freshness prediction platform based on colorimetric barcode combinatorics and deep convolutional neural networks[J]. Adv Mater, 2020, 32 (45): 2004805. doi: 10.1002/adma.202004805
38	AHETO J H , HUANG X Y , TIAN X Y , et al. Multi-sensor integration approach based on hyperspectral imaging and electronic nose for quantitation of fat and peroxide value of pork meat[J]. Anal Bioanal Chem, 2020, 412 (5): 1169- 1179. doi: 10.1007/s00216-019-02345-5
39	OPPEN D , ATTIG T , WEISS J , et al. Anticipating food structure of meat products from mastication physics applying machine learning[J]. Food Res Int, 2023, 174, 113576. doi: 10.1016/j.foodres.2023.113576
40	HUANG C Q , GU Y . A machine learning method for the quantitative detection of adulterated meat using a MOS-based E-nose[J]. Foods, 2022, 11 (4): 602. doi: 10.3390/foods11040602
41	LIM H R , KHOO K S , CHIA W Y , et al. Smart microalgae farming with internet-of-things for sustainable agriculture[J]. Biotechnol Adv, 2022, 57, 107931. doi: 10.1016/j.biotechadv.2022.107931

人员 Operator	图像肌内脂肪含量/% GIMF	个体肌内脂肪含量/% IIMF	人员 Operator	图像肌内脂肪含量/% GIMF	个体肌内脂肪含量/% IIMF
1	2.406 735 480	1.618 247 778	8	2.323 755 739	1.541 928 333
2	2.576 196 758	1.727 769 708	9	2.260 644 521	1.505 177 567
3	2.139 185 500	1.427 452 048	10	2.377 014 720	1.578 316 452
4	2.405 697 142	1.600 613 333	11	2.100 325 627	1.394 686 267
5	2.237 215 417	1.490 058 625	12	2.164 272 131	1.434 557 074
6	2.482 699 394	1.658 501 867	13	2.336 177 654	1.559 357 222
7	2.336 177 654	1.559 357 222

数据 Data	极差 Range	方差 Variance	标准差 Standard deviation	离散系数 Coefficient of variation
GIMF	0.476	0.019	0.137	0.059
IIMF	0.333	0.009	0.096	0.062
