猪IL-15单克隆抗体的制备及双抗体夹心ELISA方法的建立

doi:10.11843/j.issn.0366-6964.2025.07.036

摘要/Abstract

摘要：

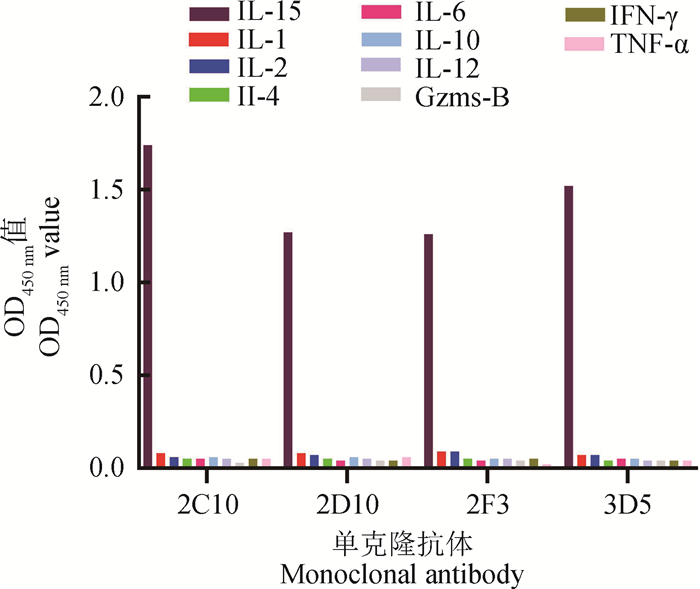

旨在制备猪白细胞介素-15(IL-15)的单克隆抗体(McAb)，建立IL-15-ELISA定量检测方法。首先构建猪IL-15原核表达载体pET-28a-IL-15，应用大肠杆菌原核表达系统表达该重组蛋白，随后用其免疫6周龄的雌性BALB/c小鼠，在加强免疫后第3天，分离小鼠脾细胞，将脾细胞与SP2/0细胞融合，筛选阳性杂交瘤细胞，并对其分泌的IL-15单克隆抗体进行鉴定；然后基于单克隆抗体建立IL-15夹心ELISA方法。结果显示：获得9株分泌抗IL-15 McAb的杂交瘤细胞(1E8、1F4、2D3、2C10、2F3、2D10、3F4、3D4、3D5)，分泌的抗体均为IgG2bκ型。以制备的单抗2D10和2C10分别为捕获抗体及酶标抗体建立的夹心ELISA最低可检测31.25 ng·mL^-1的IL-15蛋白，与其它细胞因子或蛋白(IL-1、IL-2、IL-4、IL-6、IL-10、IL-12、Gzms-B、IFN-γ、TNF-α)无交叉反应，批内和批间重复的变异系数分别为2.56%和3.39%。该夹心ELISA可定量检测血清、组织液和细胞培养物等样品中的IL-15。综上，成功制备了猪IL-15单克隆抗体，建立了定量检测IL-15的双抗体夹心ELISA方法，为IL-15相关研究提供了重要工具。

关键词: 猪IL-15, 单克隆抗体, 双抗体夹心ELISA, 定量检测

Abstract:

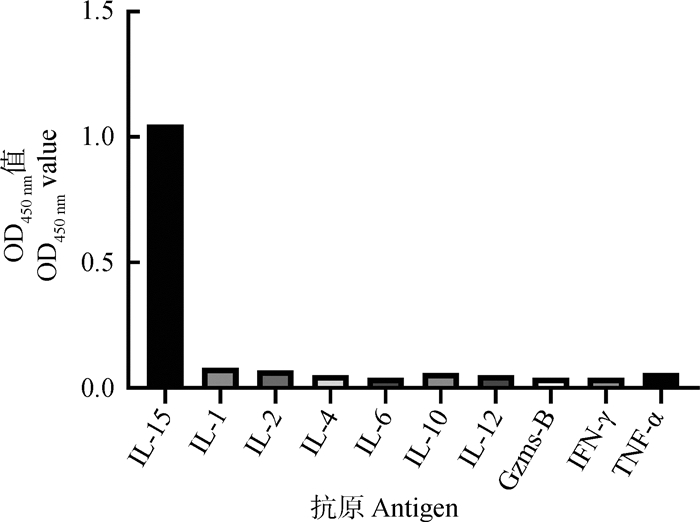

A monoclonal antibody (McAb) to porcine interleukin-15 (IL-15) was prepared and a quantitative IL-15-ELISA was established. Porcine IL-15 prokaryotic expression vector pET-28a-IL15 was constructed, and the recombinant protein was expressed with Escherichia coli (E. coli) prokaryotic expression system, and six-week-old female BALB/c mice were immunized with recombinant IL-15. On day 3 after the booster immunization, splenocytes were isolated and collected from one mouse to fuse with SP2/0 cells. Positive hybridoma cells were screened and monoclonal antibodies to IL-15 secreted by the positive hybridoma cells were identified. Moreover, a sandwich ELISA for detection of porcine IL-15 based on a monoclonal antibody. Nine strains of hybridoma cells (1E8, 1F4, 2D3, 2C10, 2F3, 2D10, 3F4, 3D4 and 3D5) secreting anti-IL-15 McAb were obtained, and all of the secreted McAb were of the IgG2bκ type. A sandwich ELISA using the prepared monoclonal antibody 2D10 as the capture antibody and 2C10 as the enzyme-labeled antibody, respectively, was able to detect a minimum of 31.25 ng·mL^-1 of IL-15 protein, with no cross-reactivity with the other cytokines or protein (IL-1, IL-2, IL-4, IL-6, IL-10, IL-12, Gzms-B, IFN-γ, and TNF-α). The mean coefficient of variation for intra-batch and inter-batch reproducibility experiments was 2.56% and 3.39%, respectively. This sandwich ELISA quantifies IL-15 in serum, tissue fluid and cell culture. Porcine IL-15 McAb was successfully prepared, and a double antibody sandwich ELISA method was established, which provided an important tool for IL-15 related studies.

Key words: porcine IL-15, monoclonal antibody, double-antibody sandwich ELISA, quantitative determination

中图分类号:

R446.61

王飞燕, 刘超凡, 张亚楠, 周晓甜, 任静, 袁晨, 李潭清, 宋勤叶. 猪IL-15单克隆抗体的制备及双抗体夹心ELISA方法的建立[J]. 畜牧兽医学报, 2025, 56(7): 3442-3452.

WANG Feiyan, LIU Chaofan, ZHANG Ya'nan, ZHOU Xiaotian, REN Jing, YUAN Chen, LI Tanqing, SONG Qinye. Preparation of Monoclonal Antibody to Porcine IL-15 and Establishment of Double Antibody Sandwich ELISA Method[J]. Acta Veterinaria et Zootechnica Sinica, 2025, 56(7): 3442-3452.

图/表 10

图 1

图 2

图 3

图 4

图 5

图 6

图 7

图 8

表 1

图 9

参考文献 28

1	GRABSTEIN K H , EISENMAN J , SHANEBECK K , et al. Cloning of a T cell growth factor that interacts with the beta chain of the interleukin-2 receptor[J]. Science, 1994, 264 (5161): 965- 968.
2	WALDMANN T A . The biology of interleukin-2 and interleukin-15: implications for cancer therapy and vaccine design[J]. Nat Rev Immunol, 2006, 6 (8): 595- 601.
3	FEHNIGER T A , CALIGIURI M A . Interleukin 15: biology and relevance to human disease[J]. Blood, 2001, 97 (1): 14- 32.
4	TAGAYA Y , BAMFORD R N , DEFILIPPIS A P , et al. IL-15: a pleiotropic cytokine with diverse receptor/signaling pathways whose expression is controlled at multiple levels[J]. Immunity, 1996, 4 (4): 329- 364.
5	BAMFORD R N , GRANT A J , BURTON J D , et al. The interleukin (IL) 2 receptor beta chain is shared by IL-2 and a cytokine, provisionally designated IL-T, that stimulates T-cell proliferation and the induction of lymphokine-activated killer cells[J]. Proc Natl Acad Sci U S A, 1994, 91 (11): 4940- 4944.
6	CASTILLO E F , SCHLUNS K S . Regulating the immune system via IL-15 transpresentation[J]. Cytokine, 2012, 59 (3): 479- 490.
7	CARSON W E , ROSS M E , BAIOCCHI R A , et al. Endogenous production of interleukin 15 by activated human monocytes is critical for optimal production of interferon-gamma by natural killer cells in vitro[J]. J Clin Invest, 1995, 96 (6): 2578- 2582.
8	GIRI J G , AHDIEH M , EISENMAN J , et al. Utilization of the beta and gamma chains of the IL-2 receptor by the novel cytokine IL-15[J]. EMBO J, 1994, 13 (12): 2822- 2830.
9	DISANTO J P . Cytokines: shared receptors, distinct functions[J]. Curr Biol, 1997, 7 (7): R424- 430.
10	WALDMANN T A , MILJKOVIC M D , CONLON K C . Interleukin-15 (dys) regulation of lymphoid homeostasis: Implications for therapy of autoimmunity and cancer[J]. J Exp Med, 2020, 217 (1): e20191062- e20191074.
11	ZHANG M , WEN B , ANTON O M , et al. IL-15 enhanced antibody-dependent cellular cytotoxicity mediated by NK cells and macrophages[J]. Proc Natl Acad Sci U S A, 2018, 115 (46): e10915- e10929.
12	KENNEDY M K , GLACCUM M , BROWN S N , et al. Reversible defects in natural killer and memory CD8 T cell lineages in interleukin 15-deficient mice[J]. J Exp Med, 2000, 191 (5): 771- 780.
13	LIU K , CATALFAMO M , LI Y , et al. IL-15 mimics T cell receptor crosslinking in the induction of cellular proliferation, gene expression, and cytotoxicity in CD8+ memory T cells[J]. Proc Natl Acad Sci U S A, 2002, 99 (9): 6192- 6199.
14	SOWELL R T , GOLDUFSKY J W , ROGOZINSKA M , et al. IL-15 complexes induce migration of resting memory CD8 T cells into mucosal tissues[J]. J Immunol, 2017, 199 (7): 2536- 2546.
15	ALVES N L , HOOIBRINK B , AROSA F A , et al. IL-15 induces antigen-independent expansion and differentiation of human naive CD8+T cells in vitro[J]. Blood, 2003, 102 (7): 2541- 2547.
16	KU C C , MURAKAMI M , SAKAMOTO A , et al. Control of homeostasis of CD8+ memory T cells by opposing cytokines[J]. Science, 2000, 288 (5466): 675- 683.
17	ZHANG X , SUN S , HWANG I , et al. Potent and selective stimulation of memory-phenotype CD8⁺T cells in vivo by IL-15[J]. Immunity, 1998, 8 (5): 591- 560.
18	LI X C , DEMIRCI G , FERRARI-LACRAZ S , et al. IL-15 and IL-2: a matter of life and death for T cells in vivo[J]. Nat Med, 2001, 7 (1): 114- 122.
19	ZHOU X , YU J , CHENG X , et al. The deubiquitinase Otub1 controls the activation of CD8(+) T cells and NK cells by regulating IL-15-mediated priming[J]. Nat Immunol, 2019, 20 (7): 879- 889.
20	雷学文. IL-2及IL-15对小鼠原代NK细胞扩增数量及功能影响的研究[D]. 内蒙古自治区: 内蒙古医科大学, 2020: 1-38.
	LEI X W. Effect of IL-2 and IL-15 on the number and function of primary NK cells in mice[D]. The Inner Mongolia Autonomous Region: Inner Mongolia Medical University, 2020: 1-38. (in Chinese)
21	骆爱芳. 猪白细胞介素15基因的克隆、表达及其生物活性初步测定[D]. 成都: 四川农业大学, 2007: 1-57.
	LUO A F. Cloning, expression and bioactivity of porcine interleukin-15 gene[D]. Chengdu: Sichuan Agricultural University, 2007: 1-57. (in Chinese)
22	CANALS A , GRIMM D R , GASBARRE L C , et al. Molecular cloning of cDNA encoding porcine interleukin-15[J]. Gene, 1997, 195 (2): 337- 346.
23	石娜. 猪IL-15与PRRSV ORF5基因真核表达质粒的构建及其免疫原性分析[D]. 哈尔滨: 东北农业大学, 2010: 1-87.
	SHI N. Construction and immunogenicity analysis of porcine IL-15 and PRRSV ORF5 gene eukaryotic expression plasmid[D]. Harbin: Northeast Agricultural University, 2010: 1-87. (in Chinese)
24	王平, 王丽, 王从印, 等. 抗人白细胞介素15单克隆抗体的制备及特性鉴定[J]. 细胞与分子免疫学杂志, 2004, 20 (2): 183- 188.
	WANG P , WANG L , WANG C Y , et al. Preparation and characterization of monoclonal antibody against human interleukin-15[J]. Chinese Journal of Cellular and Molecular Immunology, 2004, 20 (2): 183- 188.
25	孙安源, 田志刚, 张建华, 等. 人白细胞介素15单克隆抗体的制备及鉴定[J]. 中国免疫学杂志, 2002, 18 (11): 787-789, 794.
	SUN A Y , TIAN Z G , ZHANG J H , et al. Preparation and identification of human interleukin-15 monoclonal antibody[J]. Cellular & Molecular Immunology, 2002, 18 (11): 787-789, 794.
26	张改梅, 贾红, 侯绍华, 等. 检测牛IFN-γ双抗体夹心ELISA的建立及在牛结核病诊断上的初步应用[J]. 畜牧兽医学报, 2014, 45 (10): 1693- 1671. doi: 10.11843/j.issn.0366-6964.2014.10.016
	ZHANG G M , JIA H , HOU S H , et al. Establishment of sandwich ELISA for detection of bovine IFN-γ double antibody and its preliminary application in the diagnosis of bovine tuberculosis[J]. Acta Veterinaria Et Zootechnica Sinica, 2014, 45 (10): 1693- 1671. doi: 10.11843/j.issn.0366-6964.2014.10.016
27	陈俊华. 抗鸡IL-4单克隆抗体的研制及其双抗体夹心ELISA方法的初步建立[D]. 扬州: 扬州大学, 2009: 1-52.
	CHEN J H. Preparation of monoclonal antibody against chicken IL-4 and establishment of sandwich ELISA method for double antibody[D]. Yangzhou: Yangzhou University, 2009: 1-52. (in Chinese)
28	张红梅, 李波, 段作营, 等. 双抗体夹心ELISA定量检测IL-2-HSA融合蛋白[J]. 中国药科大学学报, 2010, 41 (2): 175- 184.
	ZHANG H M , LI B , DUAN Z Y , et al. IL-2-HSA fusion protein was quantitatively detected by double antibody sandwich ELISA[J]. Journal of China Pharmaceutical University, 2010, 41 (2): 175- 184.

样本编号 Sample number	IL-15浓度 IL-15 concentration	样本编号 Sample number	IL-15浓度 IL-15 concentration
1	11.9	9	14.8
2	11.3	10	13.6
3	3.2	11	9.1
4	1.4	12	8.0
5	47.8	13	56
6	43.3	14	52.3
7	17.2	15	9.5
8	11.0	16	22.9
