IBDV单克隆抗体的制备及双抗体夹心ELISA检测方法的建立

doi:10.11843/j.issn.0366-6964.2025.07.035

畜牧兽医学报 ›› 2025, Vol. 56 ›› Issue (7): 3433-3441.doi: 10.11843/j.issn.0366-6964.2025.07.035

IBDV单克隆抗体的制备及双抗体夹心ELISA检测方法的建立

姜艳平¹^,²(), 刘薇², 宫浩阳², 蔡李萌², 李佳璇²^,³, 崔文²^,³, 周晗²^,³, 韩建春¹^,*(), 唐丽杰²^,³^,*()

1. 黑龙江省绿色食品科学研究院，哈尔滨 150028
2. 东北农业大学动物医学学院，哈尔滨 150030
3. 黑龙江省动物疾病防控与制剂创制重点实验室，哈尔滨 150030

收稿日期:2024-09-30 出版日期:2025-07-23 发布日期:2025-07-25
通讯作者: 韩建春,唐丽杰 E-mail:jiangyanping8198@163.com;hanjianchun@hotmail.com;tanglijie@163.com
作者简介:姜艳平(1981-)，女，黑龙江肇东人，高级实验师，博士，主要从事兽医微生物学的教学与研究，E-mailjiangyanping8198@163.com
基金资助:
“十四五”重点研发项目子课题(2022YFD1800304-05)

Preparation of Monoclonal Antibodies to IBDV and Establishment of a Double Antibody Sandwich ELISA Method for Detection

JIANG Yanping¹^,²(), LIU Wei², GONG Haoyang², CAI Limeng², LI Jiaxuan²^,³, CUI Wen²^,³, ZHOU Han²^,³, HAN Jianchun¹^,*(), TANG Lijie²^,³^,*()

1. Heilongjiang Green Food Science Research Institute, Harbin 150028, China
2. College of Veterinary Medicine, Northeast Agricultural University, Harbin 150030, China
3. Heilongjiang Key Laboratory for Animal Disease Control and Pharmaceutical Development, Harbin 150030, China

Received:2024-09-30 Online:2025-07-23 Published:2025-07-25
Contact: HAN Jianchun, TANG Lijie E-mail:jiangyanping8198@163.com;hanjianchun@hotmail.com;tanglijie@163.com

摘要/Abstract

摘要：

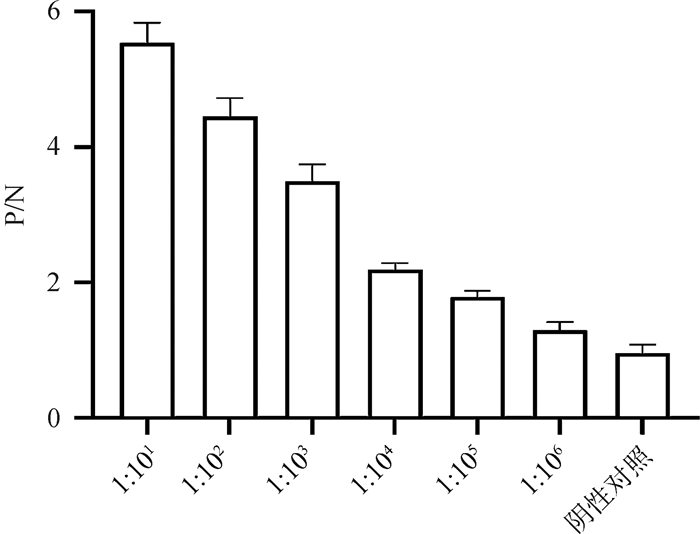

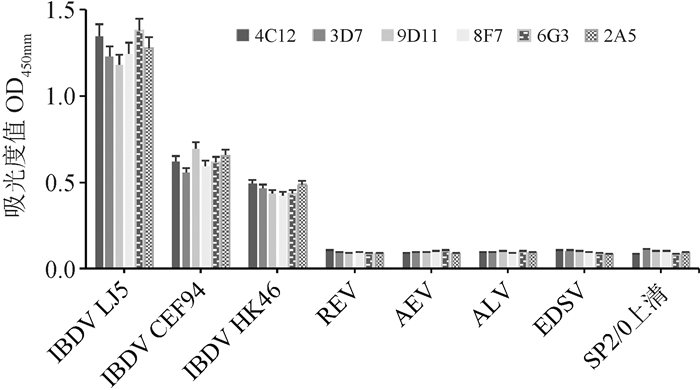

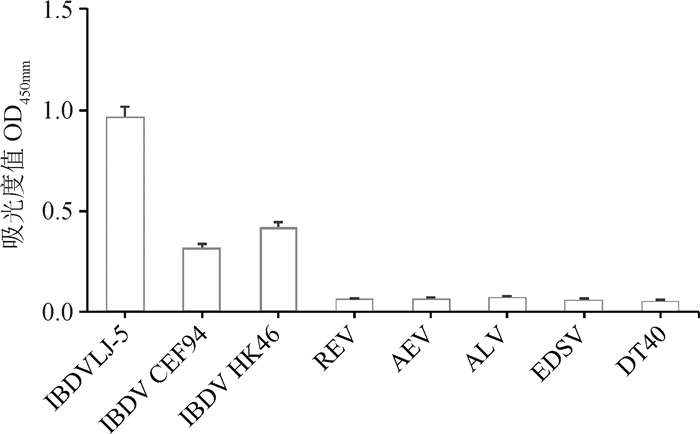

旨在建立一种快速有效的检测鸡传染性法氏囊病病毒(IBDV)的方法，本研究以IBDV全病毒作为免疫原制备单克隆抗体，以获得的单抗6G3作为捕获抗体，单抗4C12作为检测抗体，建立检测IBDV的双抗体夹心ELISA方法。结果表明，该ELISA方法具有良好的特异性，与REV、AEV、ALV和EDSV均无交叉反应；能检测病毒的最小量为1.585×10³ ELD₅₀；批间和批内重复性试验显示，该方法具有良好的重复性；通过该方法对49份临床样品进行检测，与商品化的IBDV抗原检测卡进行比较，符合率达94.18%。综上，本研究建立的双抗体夹心ELISA方法，具有良好的特异性、敏感性和重复性，可用于IBDV的快速检测，为制备商品化的IBDV检测试剂盒奠定基础。

关键词: 传染性法氏囊病毒, 单克隆抗体, 检测方法, 双抗体夹心ELISA

Abstract:

The aim of this study was to establish a rapid and effective method for detecting infections bursal disease virus (IBDV), monoclonal antibodies were prepared using the whole IBDV as the immunogen. Double antibody sandwich ELISA method was established using monoclonal antibody 6G3 as the capture antibody and monoclonal antibody 4C12 as the detection antibody for the detection of IBDV. The results showed that the ELISA method had good specificity and no cross-reaction with REV, AEV, ALV or EDSV. The sensitivity test showed that the minimum detectable amount of IBDV is 1.585×10³ELD₅₀. The results of inter and intra plate repeatability tests showed that this method had good repeatability. Forty-nine clinical samples were detected by the double antibody sandwich ELISA method and commercial IBDV antigen detection card, and the coincidence rate was 94.18%. In conclusion, the double-antibody sandwich ELISA method established in this study has good specificity, sensitivity and repeatability, and can be used for rapid detection of IBDV. Thus, laysing the foundation for the development of a commercial IBDV detection kit.

Key words: IBDV, monoclonal antibody, detection method, double antibody sandwich ELISA

中图分类号:

S852.65

姜艳平, 刘薇, 宫浩阳, 蔡李萌, 李佳璇, 崔文, 周晗, 韩建春, 唐丽杰. IBDV单克隆抗体的制备及双抗体夹心ELISA检测方法的建立[J]. 畜牧兽医学报, 2025, 56(7): 3433-3441.

JIANG Yanping, LIU Wei, GONG Haoyang, CAI Limeng, LI Jiaxuan, CUI Wen, ZHOU Han, HAN Jianchun, TANG Lijie. Preparation of Monoclonal Antibodies to IBDV and Establishment of a Double Antibody Sandwich ELISA Method for Detection[J]. Acta Veterinaria et Zootechnica Sinica, 2025, 56(7): 3433-3441.

图/表 12

图 1

图 2

表 1

表 2

图 3

图 4

图 5

图 6

图 7

图 8

表 3

图 9

参考文献 22

1	张建军, 高巍, 侯军. 鸡传染性法氏囊病毒研究进展[J]. 中国家禽, 2007, 29 (12): 47-49, 52.
	ZHANG J J , GAO W , HOU J . Research progress of infectious bursal virus of chicken[J]. China Poultry, 2007, 29 (12): 47-49, 52.
2	SIVANANDAN V , MAHESWARAN S K . Immune profile of infectious bursal disease: Ⅰ. Effect of infectious bursal disease virus on peripheral blood T and B lymphocytes of chickens[J]. Avian Dis, 1980, 24 (3): 715- 725.
3	MÜLLER H . Replication of infectious bursal disease virus in lymphoid cells[J]. Arch Virol, 1986, 87 (3-4): 191- 203.
4	佟美姣, 高雪丽, 李博韬, 等. 传染性法氏囊病毒对SPF雏鸡免疫器官细胞凋亡及bcl-2 mRNA表达的影响[J]. 畜牧兽医学报, 2013, 44 (4): 617- 621.
	TONG M J , GAO X L , LI B T , et al. The apotosis and expression of bcl-2 mRNA in the immune organs of SPF chicks infected with infectious bursal disease virus[J]. Acta Veterinaria et Zootechnica Sinica, 2013, 44 (4): 617- 621.
5	BURKHARDT E , MÜLLER H . Susceptibility of chicken blood lymphoblasts and monocytes to infectious bursal disease virus (IBDV)[J]. Arch Virol, 1987, 94 (3-4): 297- 303.
6	TSUKAMOTO K , TANIMURA N , MASE M , et al. Comparison of virus replication efficiency in lymphoid tissues among three infectious bursal disease virus strains[J]. Avian Dis, 1995, 39 (4): 844- 852.
7	ASFOR A S , REDDY V R A P , NAZKI S , et al. Modeling infectious bursal disease virus (IBDV) antigenic drift in vitro[J]. Viruses, 2023, 15 (1): 130.
8	CUI P , MA S J , ZHANG Y G , et al. Genomic sequence analysis of a new reassortant infectious bursal disease virus from commercial broiler flocks in central China[J]. Arch Virol, 2013, 158 (9): 1973- 1978.
9	STOUTE S T , JACKWOOD D J , SOMMER-WAGNER S E , et al. Pathogenicity associated with coinfection with very virulent infectious bursal disease and Infectious bursal disease virus strains endemic in the United States[J]. J Vet Diagn Invest, 2013, 25 (3): 352- 358.
10	ZHANG W , WANG X , GAO Y , et al. The over-40-years epidemic of infectious bursal disease virus in China[J]. Viruses, 2022, 14 (10): 2253.
11	FENG X F , ZHU N , CUI Y Q , et al. Characterization and pathogenicity of a naturally reassortant and recombinant infectious bursal disease virus in China[J]. Transbound Emerg Dis, 2022, 69 (4): e746- e758.
12	ISLAM M R , NOORUZZAMAN M , RAHMAN T . A unified genotypic classification of infectious bursal disease virus based on both genome segments[J]. Avian Pathol, 2021, 50 (2): 190- 206.
13	WANG W W , HUANG Y , ZHANG Y , et al. The emerging naturally reassortant strain of IBDV (genotype A2dB3) having segment A from Chinese novel variant strain and segment B from HLJ 0504-like very virulent strain showed enhanced pathogenicity to three-yellow chickens[J]. Transbound Emerg Dis, 2022, 69 (4): e566- e579.
14	刘静静. IBDV双抗体夹心ELISA检测方法的建立和胶体金试纸条的研制[D]. 泰安: 山东农业大学, 2013.
	LIU J J. Establishment of a double antibody sandwich ELISA and colloidal gold immunochromatographic strip for the detection of infectious bursal disease virus[D]. Taian: Shandong Agricultural University, 2013. (in Chinese)
15	JIANG Y P , LIN Q Y , HAN B , et al. Molecular Differentiation of different pathogenic phenotypes of infectious bursal disease viruses by RT-PCR combined with restriction fragment length polymorphism (RFLP) assay[J]. Journal of Northeast Agricultural University (English Edition), 2019, 26 (1): 37- 45.
16	杨坤, 马静文, 周新瑞, 等. 三株传染性法氏囊病病毒重组毒株的致病性研究[J]. 畜牧兽医学报, 2024, 55 (6): 2550- 2559. doi: 10.11843/j.issn.0366-6964.2024.06.026
	YANG K , MANG J W , ZHOU X R , et al. Pathogenicity of three recombinant strains of infectious bursal disease virus[J]. Acta Veterinaria et Zootechnica Sinica, 2024, 55 (6): 2550- 2559. doi: 10.11843/j.issn.0366-6964.2024.06.026
17	姜楠. IBDV新型变异株与超强毒株致病性和抗原性差异及其分子机制研究[D]. 哈尔滨: 中国农业科学院, 2022.
	JIANG N. Study on the differences of pathogenicity and antigenicity between novel variant IBDV and very virulent IBDV and its molecular mechanism[D]. Harbin: Chinese Academy of Agricultural Sciences, 2022. (in Chinese)
18	林彦星, 翁巧玉, 吴江, 等. 检测非洲猪瘟病毒抗原的双抗体夹心ELISA方法的建立[J]. 中国兽医学报, 2024, 44 (1): 7- 11.
	LIN Y X , WENG Q Y , WU J , et al. Development of double antibody sandwich ELISA assay for detection of African swine fever virus[J]. Chinese Journal of Veterinary Science, 2024, 44 (1): 7- 11.
19	杨帆. 抗H7N9禽流感病毒HA蛋白单克隆抗体的制备及初步应用[D]. 杭州: 浙江大学, 2020.
	YANG F. Preparation and preliminary application of monoclonal antibodies against HA protein of H7N9 avian influenza virus[D]. Hangzhou: Zhejiang University, 2020. (in Chinese)
20	纪品品. 基于纳米抗体的Fenobody和RANbody禽新城疫病毒夹心ELISA检测方法的建立[D]. 杨凌: 西北农林科技大学, 2020.
	JI P P. Development of Newcastle disease virus sandwich ELISA detection assay based on Fenobody and RANbody of nanobody[D]. Yangling: Northwest A&F University, 2020. (in Chinese)
21	NI T , PENG D , WANG Y , et al. Development of a broad-spectrum monoclonal antibody-based indirect competitive enzyme-linked immunosorbent assay for the multi-residue detection of avermectins in edible animal tissues and milk[J]. Food Chem, 2019, 286, 234- 240.
22	刘赫. 鸡源呼肠孤病毒检测方法的建立及其σC蛋白单克隆抗体的制备[D]. 泰安: 山东农业大学, 2019.
	LIU H. Development of Detection method and preparation of monoclonal antibodies to σC protein of chicken-derived avian orthoreovirus[D]. Taian: Shandong Agricultural University, 2019. (in Chinese)

亚型Subtype	单抗Monoclonal antibody
IgG1κ	3D7、4C12、6G3
IgG2aκ	9D11、8F7
IgGMκ	2A5

杂交瘤细胞Hybridoma cell	3D7	4C12	6G3	9D11	8F7	2A5
3D7	-	28.68%	25.31%	20.26%	18.45%	25.92%
4C12	28.68%	-	37.69%	40.7%	29.98%	44.82%
6G3	25.31%	37.69%	-	23.6%	34.42%	15.53%
9D11	20.26%	40.7%	23.6%	-	13.63%	7.92%
8F7	18.45%	29.98%	34.42%	13.63%	-	28.54%
2A5	25.92%	44.82%	15.53%	7.92%	28.54%	-

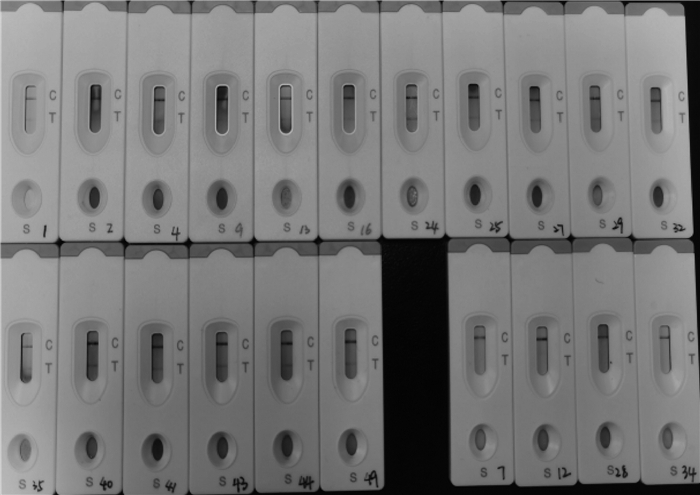

项目 Item	双抗体夹心ELISA Double antibody sandwich ELISA	IBDV抗原检测卡 IBDV antigen test card
阳性样品数量 Number of positive samples	16	17
阴性样品数量 Number of negative samples	33	32
