O型口蹄疫Cathay拓扑型病毒单抗制备及双抗体夹心ELISA方法的初步建立

doi:10.11843/j.issn.0366-6964.2024.09.025

畜牧兽医学报 ›› 2024, Vol. 55 ›› Issue (9): 4012-4020.doi: 10.11843/j.issn.0366-6964.2024.09.025

O型口蹄疫Cathay拓扑型病毒单抗制备及双抗体夹心ELISA方法的初步建立

廖焕程(), 石正旺, 罗俊聪, 王婉莹, 冯露, 周静, 张帆, 石鑫泰, 田宏*()

中国农业科学院兰州兽医研究所兰州大学动物医学与生物安全学院动物疫病防控全国重点实验室，兰州 730000

收稿日期:2023-10-13 出版日期:2024-09-23 发布日期:2024-09-27
通讯作者: 田宏 E-mail:l2440437014@163.com;xibeitian0931@163.com
作者简介:廖焕程(1999-)，男，河南信阳人，硕士，主要从事兽医学研究，E-mail: l2440437014@163.com
基金资助:
2022甘肃省创新联合体-家畜重要疫病诊断研制与产业化(22ZD6NA012);国家重点研发计划项目(2021YFD1800300);中央高校基本科研业务费专项资金资助;国家生猪技术创新中心(NCTIP-XD/C03);中国农业科学院创新计划(CAAS-CSLPDC-202302);2023农业技术产业体系建设(CARS-35);甘肃省科技重大专项计划(22ZD6NA001)

Preparation of Monoclonal Antibody against Cathay Topotype of FMDV Type O and Development of Double Antibody Sandwich ELISA for Cathay Topotype of FMDV Type O

Huancheng LIAO(), Zhengwang SHI, Juncong LUO, Wanying WANG, Lu FENG, Jing ZHOU, Fan ZHANG, Xintai SHI, Hong TIAN*()

State Key Laboratory for Animal Disease Control and Prevention, College of Veterinary Medicine, Lanzhou University, Lanzhou Veterinary Research Institute, Chinese Academy of Agricultural Sciences, Lanzhou 730000, China

Received:2023-10-13 Online:2024-09-23 Published:2024-09-27
Contact: Hong TIAN E-mail:l2440437014@163.com;xibeitian0931@163.com

摘要/Abstract

摘要：

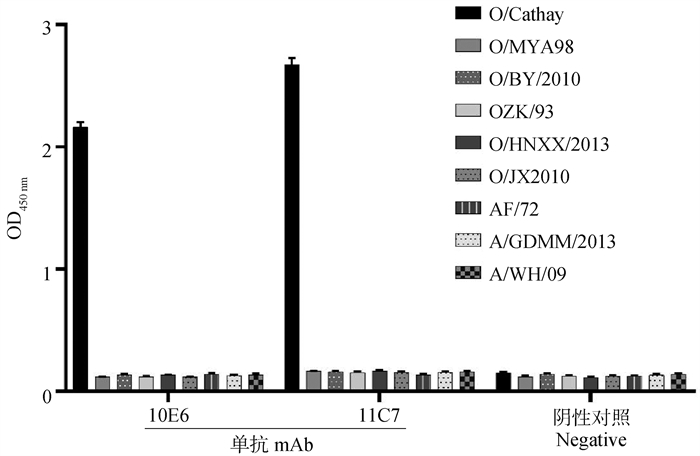

本研究旨在纯化O型口蹄疫Cathay拓扑型病毒抗原，并制备单克隆抗体，为口蹄疫新型Cathay毒株的研究提供生物材料。PEG沉淀法纯化O型口蹄疫Cathay毒株抗原，免疫BALB/c小鼠，取脾细胞与SP2/0细胞融合制备杂交瘤细胞，用间接ELISA方法筛选阳性细胞，有限稀释法进行亚克隆，获得2株能够稳定分泌特异性针对O型口蹄疫Cathay株病毒单克隆抗体的杂交瘤细胞，分别命名为10E6与11C7。叠加试验表明，两株单抗的叠加率为49.45%，识别不同的抗原表位。间接ELISA和IFA试验显示，两株单抗与O型口蹄疫Cathay株病毒具有良好的反应性。单抗特异性检测结果表明，2株单抗均能特异性识别Cathay株口蹄疫病毒，不与其他口蹄疫病毒毒株交叉反应。抗体亚型鉴定结果显示，10E6单抗的轻链为Kappa链，11C7单抗的轻链为Lamda链，两株单抗重链类型均为IgG2a。结果表明，本研究成功制备了两株特异性结合O型口蹄疫Cathay拓扑型病毒的单克隆抗体，两株单抗均具有良好的反应性与特异性。应用两株单抗建立O型口蹄疫Cathay病毒的双抗体夹心ELISA检测方法，该ELISA检测方法特异性、重复性和敏感性良好，为O型口蹄疫Cathay毒株的快速诊断防控与研究建立了基础。

关键词: O型口蹄疫病毒, Cathay拓扑型, 杂交瘤细胞, 单克隆抗体, ELISA

Abstract:

This study aimed to purify the cathay topotype of foot-and-mouth disease virus (FMDV) type O and prepare monoclonal antibody to provide biological materials for the study of novel cathay strain of foot-and-mouth disease. The antigen of cathay strain of FMDV type O was purified by PEG precipitation method and immunized BALB/c mice. Hybridoma cells were prepared by fusion of spleen cells and SP2/0 cells. Positive cells were screened by indirect ELISA and subcloned by limited dilution method. Two hybridoma cells, named 10E6 and 11C7, which were able to secrete monoclonal antibodies specifically against O-type FMDV Cathay strain were obtained. Additivity assay showed that the additivity rate of the two mAbs was 49.45%, and different epitopes were identified.Indirect ELISA and IFA showed that the two strains had good reactivity with O-type FMDV Cathay strain. The results of monoclonal antibody detection showed that the two monoclonal antibodies could specifically recognize Cathay FMDV strains and did not cross-react with other FMDV strains. The results of antibody subtype identification showed that the light chain of 10E6 monoclonal antibody was Kappa chain, the light chain of 11C7 monoclonal antibody was Lamda chain, and the heavy chain type of both strains was IgG2a. The results showed that two monoclonal antibodies specifically binding to O-type FMDV Cathay topological strain were successfully prepared in this study. Both monoclonal antibodies had good reactivity and specificity. Two monoclonal antibodies were used to establish a double antibody sandwich ELISA method for detecting O-type FMDV Cathay strain. The ELISA method had good specificity, repeatability and sensitivity, which laid a foundation for the rapid diagnosis, control and research of O-type foot and mouth disease virus Cathay strain.

Key words: foot-and-mouth disease virus type O, Cathay topotype, hybridoma cells, monoclonal antibody, ELISA

中图分类号:

廖焕程, 石正旺, 罗俊聪, 王婉莹, 冯露, 周静, 张帆, 石鑫泰, 田宏. O型口蹄疫Cathay拓扑型病毒单抗制备及双抗体夹心ELISA方法的初步建立[J]. 畜牧兽医学报, 2024, 55(9): 4012-4020.

Huancheng LIAO, Zhengwang SHI, Juncong LUO, Wanying WANG, Lu FENG, Jing ZHOU, Fan ZHANG, Xintai SHI, Hong TIAN. Preparation of Monoclonal Antibody against Cathay Topotype of FMDV Type O and Development of Double Antibody Sandwich ELISA for Cathay Topotype of FMDV Type O[J]. Acta Veterinaria et Zootechnica Sinica, 2024, 55(9): 4012-4020.

图/表 7

图 1

表 1

图 2

图 3

图 4

表 2

表 3

参考文献 24

1	周卫松, 周国梅. 猪口蹄疫的临床症状及防治[J]. 兽医导刊, 2021, (15): 12- 13.
	ZHOU W S , ZHOU G M . Clinical symptoms and prevention of swine foot-and-mouth disease[J]. Veterinary Orientation, 2021, (15): 12- 13.
2	赵家昌, 俞挺, 孙建国, 等. 口蹄疫流行现状及防控措施[J]. 山东畜牧兽医, 2023, 44 (8): 42-45, 49.
	ZHAO J C , YU T , SUN J G , et al. Epidemic status and prevention and control measures of foot-and-mouth disease[J]. Shandong Journal of Animal Science and Veterinary Medicine, 2023, 44 (8): 42-45, 49.
3	GRUBMAN M J , BAXT B . Foot-and-mouth disease[J]. Clin Microbiol Rev, 2004, 17 (2): 465- 493. doi: 10.1128/CMR.17.2.465-493.2004
4	RANJAN R , BISWAL J K , SHARMA G K , et al. A review on foot-and-mouth disease: pathology, diagnosis and its management[J]. Indian J Vet Pathol, 2016, 40 (2): 105- 115. doi: 10.5958/0973-970X.2016.00025.0
5	KNOWLES N J , SAMUEL A R . Molecular epidemiology of foot-and-mouth disease virus[J]. Virus Res, 2003, 91 (1): 65- 80. doi: 10.1016/S0168-1702(02)00260-5
6	PATON D J , VALARCHER J F , BERGMANN I , et al. Selection of foot and mouth disease vaccine strains--a review[J]. Rev Sci Tech, 2005, 24 (3): 981- 993. doi: 10.20506/rst.24.3.1632
7	PARIDA S . Vaccination against foot-and-mouth disease virus: strategies and effectiveness[J]. Expert Rev Vaccines, 2009, 8 (3): 347- 365. doi: 10.1586/14760584.8.3.347
8	MATTION N , KÖNIG G , SEKI C , et al. Reintroduction of foot-and-mouth disease in Argentina: characterisation of the isolates and development of tools for the control and eradication of the disease[J]. Vaccine, 2004, 22 (31-32): 4149- 4162. doi: 10.1016/j.vaccine.2004.06.040
9	姚怀兵, 赵毅, 王金泉, 等. O型口蹄疫病毒不同宿主适应毒株P1和3A基因的差异分析[J]. 畜牧兽医学报, 2017, 48 (5): 881- 888.
	YAO H B , ZHAO Y , WANG J Q , et al. Studies on variations of P1 and 3A genes of different hosts-adapted strains type O foot-and-mouth diease virus[J]. Acta Veterinaria et Zootechnica Sinica, 2017, 48 (5): 881- 888.
10	李平花, 白兴文, 孙普, 等. 猪O型口蹄疫基因工程疫苗候选株的构建及其免疫原性分析[J]. 畜牧兽医学报, 2011, 42 (11): 1562- 1569.
	LI P H , BAI X W , SUN P , et al. Construction of genetically engineered vaccine candidate of type O foot-and-mouth-disease virus of pig and analysis of its immunogenicity[J]. Acta Veterinaria et Zootechnica Sinica, 2011, 42 (11): 1562- 1569.
11	SAMUEL A R , KNOWLES N J . Foot-and-mouth disease type O viruses exhibit genetically and geographically distinct evolutionary lineages (topotypes)[J]. J Gen Virol, 2001, 82 (3): 609- 621. doi: 10.1099/0022-1317-82-3-609
12	KOUATO B S , DE CLERCQ K , ABATIH E , et al. Review of epidemiological risk models for foot-and-mouth disease: Implications for prevention strategies with a focus on Africa[J]. PLoS One, 2018, 13 (12): e0208296. doi: 10.1371/journal.pone.0208296
13	MITIKU T , GAREDEW L , ZEMENE M , et al. A review on foot and mouth disease and its current status in Ethiopia[J]. World Rural Observ, 2016, 8 (4): 89- 99.
14	BOUGUEDOUR R , RIPANI A . Review of the foot and mouth disease situation in North Africa and the risk of introducing the disease into Europe[J]. Rev Sci Tech, 2016, 35 (3): 757- 768. doi: 10.20506/rst.35.3.2566
15	RWEYEMAMU M , ROEDER P , MACKAY D , et al. Epidemiological patterns of foot-and-mouth disease worldwide[J]. Transbound Emerg Dis, 2008, 55 (1): 57- 72. doi: 10.1111/j.1865-1682.2007.01013.x
16	何继军, 马维民, 吕律, 等. 2017—2022年中国口蹄疫流行状况分析[J]. 微生物学报, 2023, 63 (10): 3955- 3966.
	HE J J , MA W M , LÜ L , et al. Epidemiological characteristics of foot-and-mouth disease in China between 2017 and 2022[J]. Acta Microbiologica Sinica, 2023, 63 (10): 3955- 3966.
17	BRITO B , PAUSZEK S J , HARTWIG E J , et al. A traditional evolutionary history of foot-and-mouth disease viruses in Southeast Asia challenged by analyses of non-structural protein coding sequences[J]. Sci Rep, 2018, 8 (1): 6472.
18	BRITO B P , RODRIGUEZ L L , HAMMOND J M , et al. Review of the global distribution of foot-and-mouth disease virus from 2007 to 2014[J]. Transbound Emerg Dis, 2017, 64 (2): 316- 332.
19	KNIGHT-JONES T J D , ROBINSON L , CHARLESTON B , et al. Global foot-and-mouth disease research update and gap analysis: 1-overview of global status and research needs[J]. Transbound Emerg Dis, 2016, 63 (1): 3- 13.
20	VIERRA D , BERTRAM M R , PALINSKI R M , et al. Foot-and-mouth disease virus serotype O/CATHAY genome sequences from five outbreaks in vietnam, 2017 to 2019[J]. Microbiol Resour Announc, 2020, 9 (5): e01315- 19.
21	SUTMOLLER P , OLASCOAGA R C . The risks posed by the importation of animals vaccinated against foot and mouth disease and products derived from vaccinated animals: a review[J]. Rev Sci Tech, 2003, 22 (3): 823- 835.
22	GREENFIELD E A . Single-cell cloning of hybridoma cells by limiting dilution[J]. Cold Spring Harb Protoc, 2019, 2019 (11): 31676581.
23	GREENFIELD E A . Preparing feeder cell cultures to support hybridoma growth[J]. Cold Spring Harb Protoc, 2019, 2019 (11): 31676580.
24	GREENFIELD E A . Screening for good batches of fetal bovine serum for myeloma and hybridoma growth[J]. Cold Spring Harb Protoc, 2018, 2018 (3): 29496821.

OD_{450 nm}			AI/%
A_10E6	A_11C7	A_10E6+11C7	AI/%
1.73	1.91	2.72	49.45

项目 Item	O/Cathay	O/MYA98	AF/72	A/WH/09	对照组 Control
OD_{450 nm}	2.241	0.169	0.121	0.120	0.124
S/N	18.073	1.363	0.976	0.968	/

病毒悬液 Viral suspension	稀释倍数 Dilution ratio	批内重复性 Intra batch repeatability		批间重复性 Inter batch repeatability
病毒悬液 Viral suspension	稀释倍数 Dilution ratio	$\bar x \pm s$	变异系数/% CV	$\bar x \pm s$	变异系数/% CV
阳性样品	8×	16.19±0.27	1.68	16.02±0.35	2.18
Positive samples	16×	12.26±0.06	0.52	12.56±0.16	1.27
	32×	8.52 ± 0.42	4.94	8.12±0.52	6.40
阴性样品	8×	1.12±0.06	5.90	1.02±0.07	7.45
Negative samples	16×	0.95±0.06	6.71	0.93±0.07	7.93
	32×	0.68±0.05	7.53	0.70±0.06	8.73
