牛支原体分子伴侣Dnak的原核表达及黏附特性分析

doi:10.11843/j.issn.0366-6964.2025.06.030

摘要/Abstract

摘要：

旨在研究牛支原体(Mycoplasma bovis, Mb)分子伴侣Dnak (chaperone protein Dnak)蛋白的免疫原性和黏附特性。根据GenBank中Mb HB0801株Dnak基因设计引物，利用Overlap PCR扩增获得Mb Dnak基因，构建重组质粒pET-Dnak, 经双酶切和测序鉴定正确后，将重组质粒转入大肠杆菌BL21(DE3)并通过异丙基硫代半乳糖苷(isopropyl-β-D-thiogalactopyranoside, IPTG)诱导表达。将纯化的重组蛋白免疫新西兰白兔获得抗rDnak血清，利用Western blot、ELISA和间接免疫荧光检测Dnak蛋白的免疫原性以及Dnak蛋白在Mb中的分布。通过补体介导的杀菌试验分析检测rDnak抗血清介导的激活补体杀支原体活性。利用黏附及黏附抑制试验分析Dnak蛋白对宿主细胞的黏附功能。结果表明，重组蛋白rDnak主要以上清可溶形式在大肠杆菌中成功表达，其相对分子质量约为70 ku，具有良好的免疫原性；其多抗血清可有效激活补体杀伤支原体；Dnak蛋白在Mb的细胞膜和细胞质中均存在，是Mb的一种黏附相关蛋白，参与对EBL细胞的黏附。综上，Dnak蛋白是Mb中具有良好免疫原性的黏附相关蛋白，为探究Mb的致病机制奠定基础。

关键词: 牛支原体, Dnak蛋白, 原核表达, 黏附, 免疫原性

Abstract:

This study aimed to study the immunogenicity and adhesive properties of the Dnak protein of Mycoplasma bovis (Mb). Primers were designed according to the Dnak gene of Mycoplasma bovis HB0801 strain in GenBank. The Dnak gene of Mycoplasma bovis was amplified by overlap PCR and the recombinant plasmid pET-Dnak was constructed. After double enzyme digestion and sequencing, the recombinant plasmid was transformed into E. coli BL21 (DE3) and induced by Isopropyl-β-D-thiogalactopyranoside (IPTG) for expression. Western blot, ELISA, and indirect immunofluorescence assay were used to detect the immunogenicity of Dnak protein and the distribution of Dnak protein in Mycoplasma bovis. The complement-mediated bactericidal assay detected the activity of rDnak antiserum mediatedantiserum-mediated activation of mycoplasma. Adhesion and adhesion inhibition tests were used to analyze the adhesion function of Dnak protein to host cells. The results showed that the recombinant protein rDnak was successfully expressed in E. coli, the main soluble form was pure, the relative molecular size was about 70 ku, and the recombinant protein had good immunogenicity. Its multi-antiserum can effectively activate complement to kill mycoplasma; Dnak protein exists in both the membrane and cytoplasm of Mycoplasma bovis and is an adherence-related protein of Mycoplasma bovis, involved in adhesion to EBL cells. Dnak protein is an adhesion-related protein with good immunogenicity in Mycoplasma bovis, which lays a foundation for exploring the pathogenic mechanism of Mycoplasma bovis.

Key words: Mycoplasma bovis, Dnak protein, prokaryotic expression, adhesion, immunogenicity

中图分类号:

S852.62

赵云海, 张阳阳, 马海云, 王青, 何肖肖, 刘凯, 张钰婷, 刘玉东, 杨永宁, 武小椿, 邢小勇, 权国梅, 张志雄, 包世俊. 牛支原体分子伴侣Dnak的原核表达及黏附特性分析[J]. 畜牧兽医学报, 2025, 56(6): 2868-2878.

ZHAO Yunhai, ZHANG Yangyang, MA Haiyun, WANG Qing, HE Xiaoxiao, LIU Kai, ZHANG Yuting, LIU Yudong, YANG Yongning, WU Xiaochun, XING Xiaoyong, QUAN Guomei, ZHANG Zhixiong, BAO Shijun. Prokaryotic Expression and Adhesion Characteristics of Molecular Chaperone Dnak of Mycoplasma bovis[J]. Acta Veterinaria et Zootechnica Sinica, 2025, 56(6): 2868-2878.

图/表 11

表 1

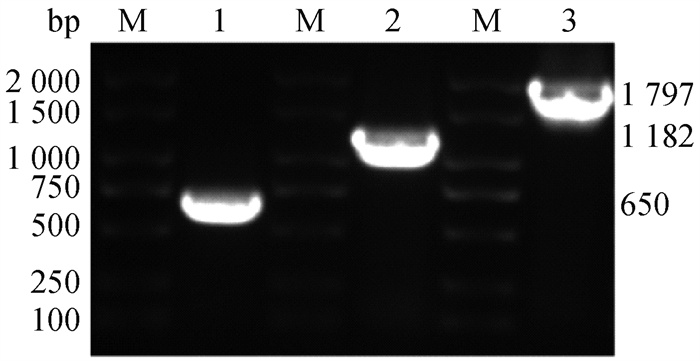

图 1

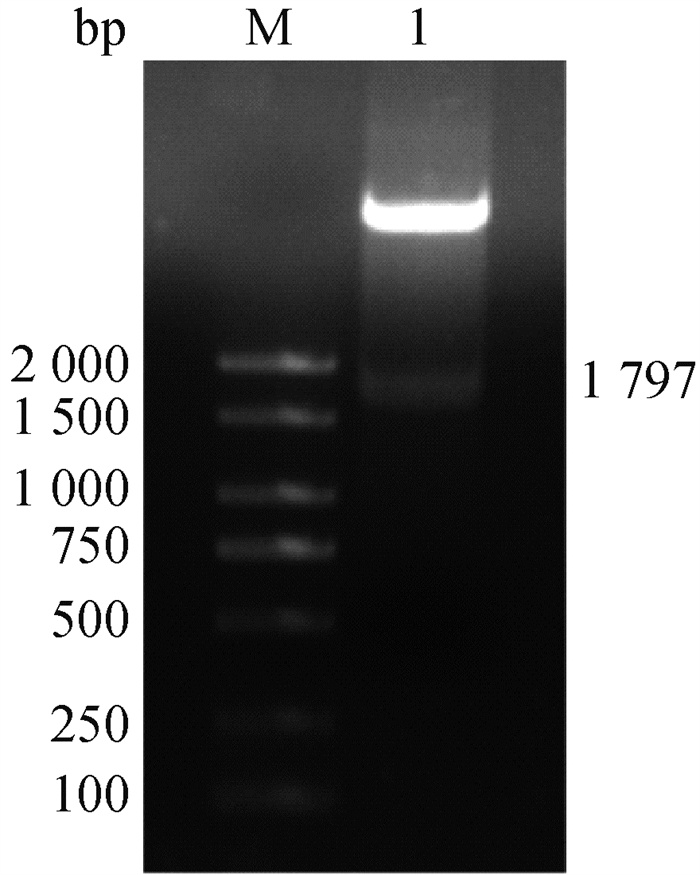

图 2

图 3

图 4

表 2

图 5

图 6

表 3

图 7

表 4

参考文献 36

1	JIMBO S , SULEMAN M , MAINA T , et al. Effect of Mycoplasma bovis on bovine neutrophils[J]. Vet Immunol Immunopathol, 2017, 188, 27- 33. doi: 10.1016/j.vetimm.2017.04.011
2	VÄHÄNIKKILÄ N , POHJANVIRTA T , HAAPALA V , et al. Characterization of the course of Mycoplasma bovis infection in naturally infected dairy herds[J]. Vet Microbiol, 2019, 231, 107- 115. doi: 10.1016/j.vetmic.2019.03.007
3	DASSANAYAKE R P , FALKENBERG S M , REGISTER K B , et al. Antimicrobial activity of bovine NK-lysin-derived peptides on Mycoplasma bovis[J]. PLoS One, 2018, 13 (5): e197677.
4	辛九庆, 李媛, 郭丹, 等. 国内首次从患肺炎的犊牛肺脏中分离到牛支原体[J]. 中国预防兽医学报, 2008 (9): 661- 664.
	XIN J Q , LI Y , GUO D , et al. Mycoplasma bovis isolated from the lungs of calves with pneumonia for the first time in China[J]. Chinese Journal of Preventive Veterinary Medicine, 2008 (9): 661- 664.
5	GAUTIER-BOUCHARDON A V . Antimicrobial resistance in Mycoplasma spp[J]. Microbiol Spectr, 2018, 6 (4): 10.
6	CHEN S , HAO H , ZHAO P , et al. Differential immunoreactivity to bovine convalescent serum between Mycoplasma bovis biofilms and planktonic cells revealed by comparative immunoproteomic analysis[J]. Front Microbiol, 2018, 9, 379. doi: 10.3389/fmicb.2018.00379
7	PEREZ-CASAL J , PRYSLIAK T , MAINA T , et al. Status of the development of a vaccine against Mycoplasma bovis[J]. Vaccine, 2017, 35 (22): 2902- 2907. doi: 10.1016/j.vaccine.2017.03.095
8	MILANI A , BASIRNEJAD M , BOLHASSANI A . Heat-shock proteins in diagnosis and treatment: an overview of different biochemical and immunological functions[J]. Immunotherapy, 2019, 11 (3): 215- 239. doi: 10.2217/imt-2018-0105
9	GHAZAEI C . Role and mechanism of the Hsp70 molecular chaperone machines in bacterial pathogens[J]. J Med Microbiol, 2017, 66 (3): 259. doi: 10.1099/jmm.0.000429
10	焦凌霞. DnaK基因调控酸土脂环酸芽孢杆菌嗜酸耐热生理特性研究[D]. 杨凌: 西北农林科技大学, 2012.
	JIAO L X. Study on the physiological characteristics of acidophilic heat resistance of Bacillus acidocyclohaloides regulated by DnaK gene[D]. Yangling: Northwest A & F University, 2012. (in Chinese)
11	黄霞. 鸭疫里默氏菌Dnak基因功能初析[D]. 成都: 四川农业大学, 2016.
	HUANG XIA. Preliminary analysis on the function of Dnak gene of Rimerella ducks[D]. Chengdu: Sichuan Agricultural University, 2016. (in Chinese)
12	樊欣. 赤红球菌SD3的基因组分析及其DnaK蛋白的表达和功能研究[D]. 南昌: 江西师范大学, 2019.
	FAN XIN. Genomic analysis of Rhodococcus sd3 and its expression and function of DnaK protein[D]. Nanchang: Jiangxi Normal University, 2019. (in Chinese)
13	LEE J H , JEON J , BAI F , et al. The Pseudomonas aeruginosa HSP70-like protein DnaK induces IL-1β expression via TLR4-dependent activation of the NF-κB and JNK signaling pathways[J]. Comp Immunol Microbiol Infect Dis, 2019, 67, 101373. doi: 10.1016/j.cimid.2019.101373
14	冯雅茹, 周梦婷, 张瑜瑜, 等. 牛支原体LRR5蛋白原核表达及其在牛支原体入侵宿主细胞过程中的作用分析[J]. 微生物学报, 2024, 64 (5): 1469- 1482.
	FENG Y R , ZHOU M T , ZHANG Y Y , et al. Prokaryotic expression of Mycoplasma bovis LRR5 protein and its role in the invasion of host cells by Mycoplasma bovis[J]. Chinese Journal of Microbiology, 2024, 64 (5): 1469- 1482.
15	KAPLAN B S , DASSANAYAKE R P , BRIGGS R E , et al. An injectable subunit vaccine containing elongation factor Tu and heat shock protein 70 partially protects American bison from Mycoplasma bovis infection[J]. Front Vet Sci, 2024, 11, 1408861. doi: 10.3389/fvets.2024.1408861
16	CIRONE F , PADALINO B , TULLIO D , et al. Prevalence of pathogens related to bovine respiratory disease before and after transportation in beef steers: preliminary results[J]. Animals (Basel), 2019, 9 (12): 1093.
17	刘佳, 张生英, 邢小勇, 等. 滑液支原体DnaK的原核表达及免疫原性分析和亚细胞定位[J]. 中国兽医科学, 2020, 50 (8): 1029- 1036.
	LIU J , ZHANG S Y , XING X Y , et al. Prokaryotic expression, immunogenicity analysis and subcellular localization of Mycoplasma synoviae DnaK[J]. China Veterinary Science, 2020, 50 (8): 1029- 1036.
18	HAN S , WANG Y , CHANG W , et al. Evaluation of the protective efficacy of six major immunogenic proteins of Mycoplasma Synoviae[J]. Front Vet Sci, 2024, 10, 1334638. doi: 10.3389/fvets.2023.1334638
19	LI Y , WANG J , LIU B , et al. DnaK functions as a moonlighting protein on the surface of Mycoplasma hyorhinis cells[J]. Front Microbiol, 2022, 13, 842058. doi: 10.3389/fmicb.2022.842058
20	ADAMU J Y , WAWEGAMA N K , KANCI C A , et al. Mycoplasma bovis membrane protein MilA is a multifunctional lipase with novel lipid and glycosaminoglycan binding activity[J]. Infect Immun, 2020, 88 (6): e00945- 19.
21	MITIKU F , HARTLEY C A , SANSOM F M , et al. The major membrane nuclease MnuA degrades neutrophil extracellular traps induced by Mycoplasma bovis[J]. Vet Microbiol, 2018, 218, 13- 19. doi: 10.1016/j.vetmic.2018.03.002
22	SCHAUMBURG J , DIEKMANN O , HAGENDORFF P , et al. The cell wall subproteome of Listeria monocytogenes[J]. Proteomics, 2004, 4 (10): 2991- 3006. doi: 10.1002/pmic.200400928
23	KNAUST A , WEBER M V , HAMMERSCHMIDT S , et al. Cytosolic proteins contribute to surface plasminogen recruitment of Neisseria meningitidis[J]. J Bacteriol, 2007, 189 (8): 3246- 3255. doi: 10.1128/JB.01966-06
24	HAGEMANN L , GRVNDEL A , JACOBS E , et al. The surface-displayed chaperones GroEL and DnaK of Mycoplasma pneumoniae interact with human plasminogen and components of the extracellular matrix[J]. Pathog Dis, 2017, 75 (3): ftx017.
25	季文恒. 牛支原体致病机理的研究进展[J]. 中国预防兽医学报, 2018, 40 (4): 361- 367.
	JI W H . Research progress on the pathogenic mechanism of Mycoplasma bovis[J]. Chinese Journal of Preventive Veterinary Medicine, 2018, 40 (04): 361- 367.
26	XIU F , LI X , LIU L , et al. Mycoplasma invasion into host cells: An integrated model of infection strategy[J]. Mol Microbiol, 2024, 121 (4): 814- 830. doi: 10.1111/mmi.15232
27	CHEN Y W , WU Y Y , QIN L M , et al. Infection strategies of mycoplasmas: Unraveling the panoply of virulence factors[J]. Virulence, 2021, 12 (1): 788- 817. doi: 10.1080/21505594.2021.1889813
28	CHEN X , HUANG J , ZHU H , et al. P27 (MbOV_RS03440) is a novel fibronectin binding adhesin of Mycoplasma bovis[J]. Int J Med Microbiol, 2018, 308 (7): 848- 857. doi: 10.1016/j.ijmm.2018.07.006
29	SACHSE K , HELBIG J H , LYSNYANSKY I , et al. Epitope mapping of immunogenic and adhesive structures in repetitive domains of Mycoplasma bovis variable surface lipoproteins[J]. Infect Immun, 2000, 68 (2): 680- 687. doi: 10.1128/IAI.68.2.680-687.2000
30	包世俊, 朱彩宏, 邢小勇, 等. 牛支原体NOX2的原核表达及黏附特性[J]. 畜牧兽医学报, 2020, 51 (11): 2895- 2902. doi: 10.11843/j.issn.0366-6964.2020.11.028
	BAO S J , ZHU C H , XING X Y , et al. Prokaryotic expression of NOX2 of Mycoplasma bovis and its adherence characterization[J]. Acta Veterinaria et Zootechnica Sinica, 2020, 51 (11): 2895- 2902. doi: 10.11843/j.issn.0366-6964.2020.11.028
31	LAN S , LI Z , HAO H , et al. A genome-wide transposon mutagenesis screening identifies LppB as a key factor associated with Mycoplasma bovis colonization and invasion into host cells[J]. FASEB J, 2023, 37 (10): e23176. doi: 10.1096/fj.202300678R
32	LIU S , LI Z , LAN S , et al. LppA is a novel plasminogen receptor of Mycoplasma bovis that contributes to adhesion by binding the host extracellular matrix and Annexin A2[J]. Vet Res, 2023, 54 (1): 107. doi: 10.1186/s13567-023-01242-1
33	ZOU X , LI Y , WANG Y , et al. Molecular cloning and characterization of a surface-localized adhesion protein in Mycoplasma bovis Hubei-1 strain[J]. PLoS One, 2013, 8 (7): e69644. doi: 10.1371/journal.pone.0069644
34	HOELZLE L E , HOELZLE K , HARDER A , et al. First identification and functional characterization of an immunogenic protein in unculturable haemotrophic Mycoplasmas (Mycoplasma suis HspA1)[J]. FEMS Immunol Med Microbiol, 2007, 49 (2): 215- 223. doi: 10.1111/j.1574-695X.2006.00184.x
35	CHEN H , HE X , JIANG H W , et al. Elucidating the network interactions between 21 secreted Mycobacterium tuberculosis proteins and host proteins: the role of DnaK in enhancing Mtb survival via LDHB[J]. Acta Biochim Biophys Sin (Shanghai), 2024, 56 (5): 819- 823.
36	CHAN C , GROISMAN E A . Chaperone Hsp70 helps Salmonella survive infection-relevant stress by reducing protein synthesis[J]. PLoS Biol, 2024, 22 (4): e3002560. doi: 10.1371/journal.pbio.3002560

引物 Primer	序列(5′→3′) Sequence	产物大小/bp Product size
Dnak-F	CGC$\underline{{\rm{GGATCC}}}$ATGGCAAAAGAAGTTATTATTG	650
Dnak-R1	TTTTGATTAAATCAATTAACCATTTTACAATTTCATTG
Dnak-F1	CAATGAAATTGTAAAATGGTTAATTGATTTAATCAAAA	1 182
Dnak-R	CCG$\underline{{\rm{CTCGAG}}}$TTATTCGAATGTTTCTTCATC

稀释倍数 Dilution factor	OD₄₅₀ _nm Optical density
1∶3 000	1.202 5
1∶6 000	1.097 7
1∶12 000	0.983 2
1∶24 000	0.880 6
1∶48 000	0.721 9
1∶96 000	0.667 4
阴性对照 Negative control	0.302 5
空白对照Blank control	0.299 4

试验分组 Experiment groups	Mb CFU平均(CFU×10⁴) Mean CFU (×10⁴)	杀支原体率/% Mycoplasmacidal rates
rDnak多抗血清 rDnak polyclonal antibody serum	60	75.8
Mb菌体多抗血清 Mb bacterial polyclonal antibody serum	44	82.3
补体对照组 Complement control group	236	—
未免血清 Uninimmune serum	230	—
PBS	248	—

试验分组 Experiment groups	Mb CFU平均值(CFU×10³) Mean CFU (×10³)	黏附抑制率/% Adhesion inhibition rate
rDnak多抗血清 rDnak polyclonal antibody serum	151	85.16
Mb菌体多抗血清 Mb bacterial polyclonal antibody serum	98	90.37
免疫前血清 Preimmune serum	1018	—
未感染组 Uninfected group	0	0
