产蛋后期蛋鸡蛋壳质量变化及影响因素的探究

doi:10.11843/j.issn.0366-6964.2025.05.015

摘要/Abstract

摘要：

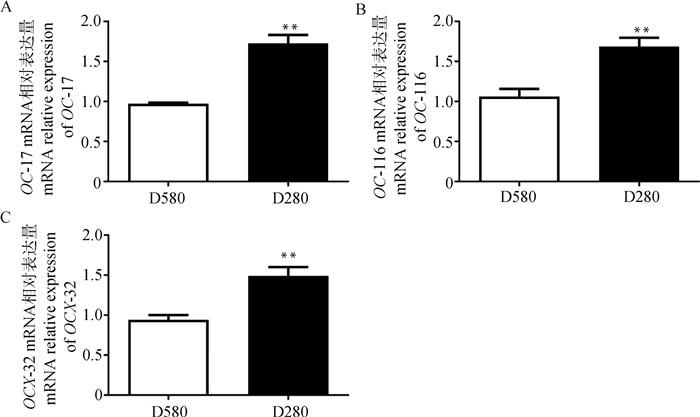

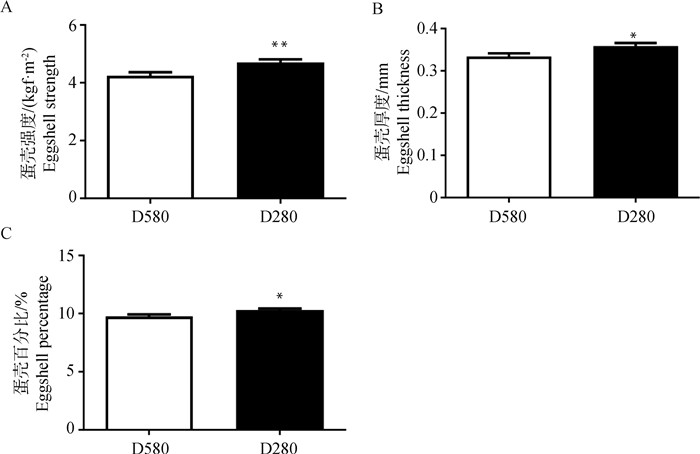

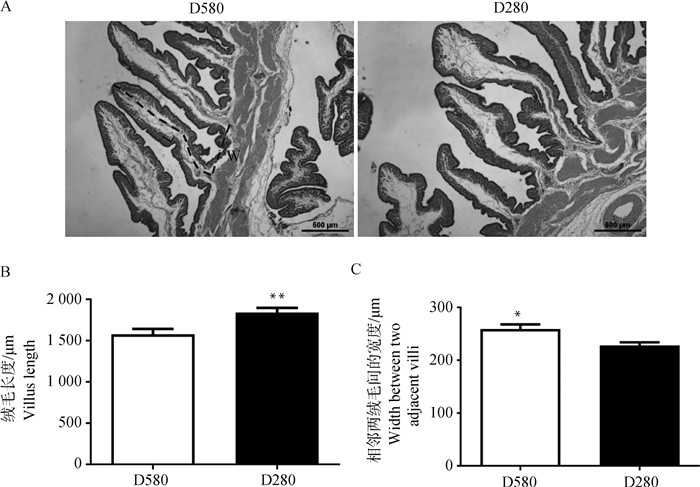

旨在探究产蛋后期蛋鸡蛋壳质量的变化及影响因素以提高蛋壳质量，减少禽蛋在交易过程中的损失。本试验选取体重相近、健康状况良好的产蛋高峰期(D280)及产蛋后期(D580)海兰白蛋鸡各60只，随机分为6个重复，每个重复10只，进行采样、检测和观察。首先采集两组的蛋各60枚检测蛋壳质量，利用扫描电子显微镜观察蛋壳超微结构的差异；随后每组随机取6只鸡，采集蛋壳腺组织，一部分制作石蜡切片用于蛋壳腺组织结构的观察，一部分提取RNA用于检测蛋壳腺组织OC-17、OC-116、OCX-32基因表达水平。结果表明，与产蛋高峰期蛋鸡相比，产蛋后期蛋鸡存在下列变化：①蛋壳厚度、蛋壳强度、蛋壳百分比、蛋壳有效厚度分别降低了8.33%、9.98%、5.15%、4.17%；②蛋壳超微结构显示，蛋壳乳突间隙的宽度、乳突宽度及乳突层的有效厚度显著增加；③蛋壳腺绒毛长度显著降低，相邻两绒毛之间的宽度显著增加；④蛋壳腺OC-17、OC-116、OCX-32基因表达量显著下调。以上结果提示，产蛋后期蛋鸡蛋壳腺组织结构的变化可能导致了蛋壳腺分泌能力的下降，影响了子宫液中矿物质离子的浓度。同时，蛋壳腺组织中OC-17、OC-116、OCX-32基因表达量的显著下调表明蛋壳腺矿物质沉积能力下降，两方面的因素共同影响了蛋壳在蛋壳腺中的矿化过程，使蛋壳超微结构发生了改变，导致蛋壳质量下降。

关键词: 产蛋后期蛋鸡, 产蛋性能, 蛋壳质量, 蛋壳腺

Abstract:

This experiment aimed to investigate the changes of eggshell quality and its influencing factors in late-phase laying hens in order to improve eggshell quality and reduce the loss of eggs in the process of trading. In this experiment, 60 laying hens in peak laying period (D280) and 60 in late laying period (D580) were selected with similar weight and good health. Laying hens in each laying period were randomly divided into 6 replicates of 10 hens each for sampling, detection, and observation. Firstly, 60 eggs from each group were collected to detect the eggshell quality. And the differences of ultrastructure of eggshell were observed by scanning electron microscope. Subsequently, 6 chickens in each group were randomly selected to collect eggshell gland tissue, part of which was made into paraffin sections for observation of eggshell gland tissue structure, and part of which was extracted with RNA for detection of gene expression levels of OC-17, OC-116 and OCX-32 in eggshell gland tissue. The results showed that, compared with peak-phase laying hens, the following changes were observed in late-phase of laying hens: ①The thickness, strength, percentage and effective thickness of eggshell were significantly decreased by 8.33%, 9.98%, 5.15% and 4.17%. ②The ultrastructure of eggshell showed that the width of the mastoid gap, the width of the mammillary knobs and the effective thickness of the mastoid layer were significantly increased. ③The length of eggshell gland villi was significantly reduced, while the width between two adjacent villi showed a significant increase. ④The expression levels of OC-17, OC-116 and OCX-32 genes in eggshell glands were significantly down-regulated. The results indicated that the structural changes of eggshell gland in late-phase laying hens might lead to the decrease of eggshell gland secretion ability and affected the concentration of mineral ions in uterine fluid. The significantly down-regulated expression of OC-17, OC-116 and OCX-32 genes indicated the mineral deposit ability of eggshell gland was decreased. These two aspects together affected the mineralization process of eggshell in eggshell gland, changed the ultrastructure of eggshell, and led to the decline of eggshell quality.

Key words: late-phase laying hen, egg laying performance, eggshell quality, eggshell gland

中图分类号:

S831.2

马艳粉, 陈琦, 钱忠立, 倪嘉, 孟昊, 高鑫凯, 万福军, 刘欣. 产蛋后期蛋鸡蛋壳质量变化及影响因素的探究[J]. 畜牧兽医学报, 2025, 56(5): 2148-2156.

MA Yanfen, CHEN Qi, QIAN Zhongli, NI Jia, MENG Hao, GAO Xinkai, WAN Fujun, LIU Xin. Changes and Influencing Factors of Eggshell Quality in Late-phase Laying Hens[J]. Acta Veterinaria et Zootechnica Sinica, 2025, 56(5): 2148-2156.

图/表 5

表 1

图 1

图 2

图 3

图 4

参考文献 37

1	GAUTRON J , DOMBRE C , NAU F , et al. Review: production factors affecting the quality of chicken table eggs and egg products in Europe[J]. Animal, 2022, 16 (Suppl 1): 100425.
2	U.S. Department of agriculture. Agriculture research service: national nutrient database for standard reference. Accessed Feb 6, 2024. https://www.statista.com/statistics/263971/top-10-countries-worldwide-in-egg-production/.
3	ROLAND D A . Research note: egg shell problems: estimates of incidence and economic impact[J]. Poult Sci, 1988, 67 (12): 1801- 1803. doi: 10.3382/ps.0671801
4	COUTTS J A , WILSON G C , FERNANDEZ S . Optimum egg quality[J]. 5M Publishing, Sheffield, UK, 2007,
5	马若珊, 李菊芬, 李琦华. 日粮钙磷对蛋鸡蛋壳质量影响的研究进展[J]. 中国饲料, 2023 (13): 12- 15.
	MA R S , LI J F , LI Q H . Research progress on effects of dietary calcium and phosphorus on eggshell quality of laying hens[J]. China Feed, 2023 (13): 12- 15.
6	SONG M , JIAO H , ZHAO J , et al. Dietary supplementation of calcium propionate and calcium butyrate improves eggshell quality of laying hens in the late phase of production[J]. J Poult Sci, 2022, 59 (1): 64- 74. doi: 10.2141/jpsa.0200127
7	马艳华. 有机钙源对产蛋后期蛋鸡生产性能、蛋品质及骨钙含量的影响[J]. 中国饲料, 2022 (08): 62- 65.
	MA Y H . Effects of organic calcium source on performance, egg quality and bone calcium content of laying hens in late laying period[J]. China Feed,, 2022 (08): 62- 65.
8	JIN Q , WANG F , YE W , et al. Compound Bacillus improves eggshell quality and egg metabolites of hens by promoting the metabolism balance of calcium and phosphorus and uterine cell proliferation[J]. Anim Nutr, 2024, 19, 355- 369. doi: 10.1016/j.aninu.2024.04.023
9	章玲玲, 李琦章, 姜涛, 等. 鸡蛋壳有机成分与蛋壳质量关系的研究[J]. 畜牧兽医学报, 2013, 44 (2): 228- 232.
	ZHANG L L , LI Q Z , JIANG T , et al. Study on the relationship between the organic ingredients in eggshell and eggshell quality[J]. Acta Veterinaria et Zootechnica Sinica, 2013, 44 (2): 228- 232.
10	GAUTRON J , STAPANE L , LE ROY N , et al. Avian eggshell biomineralization: an update on its structure, mineralogy and protein tool kit[J]. BMC Mol Cell Biol, 2021, 22 (1): 11. doi: 10.1186/s12860-021-00350-0
11	高亚辉. 鸡蛋清扩散面积遗传分析及OC-17对碳酸钙结晶作用机制研究[D]. 北京: 中国农业大学, 2019.
	GAO Y H. Chicken egg white spreading area's genetic analysis and OC-17's functional mechanism on calcium carbonate mineralization[D]. Beijing: China Agricultural University, 2019. (in Chinese)
12	MANN K , MACEK B , OLSEN J V . Proteomic analysis of the acid-soluble organic matrix of the chicken calcified eggshell layer[J]. Proteomics, 2006, 6 (13): 3801- 3810. doi: 10.1002/pmic.200600120
13	MANN K , HINCKE M T , NYS Y . Isolation of ovocleidin-116 from chicken eggshells, correction of its amino acid sequence and identification of disulfide bonds and glycosylated Asn[J]. Matrix Biol, 2002, 21 (5): 383- 387. doi: 10.1016/S0945-053X(02)00031-8
14	叶幼荣, 孙杰, 张璐, 等. 蛋鸡不同产蛋期生殖器官中OC17, OC116和OCX32 mRNA相对定量研究[J]. 中国兽医学报, 2015, 35 (9): 1518- 1525.
	YE Y R , SUN J , ZHANG L , et al. Relative quantification of OC17, OC116 and OCX32 mRNA in reproductive organs of hens in different laying periods[J]. Chinese Journal of Veterinary Science, 2015, 35 (9): 1518- 1525.
15	GAUTRON J . Proteomics analysis of avian eggshell matrix proteins: toward new advances on biomineralization[J]. Proteomics, 2019, 19 (13): e1900120. doi: 10.1002/pmic.201900120
16	EL-TARABANY M S , NASSAN M A , SALAH A S . Royal jelly improves the morphology of the reproductive tract, internal egg quality, and blood biochemical parameters in laying hens at the late stage of production[J]. Animals (Basel), 2021, 11 (7): 1861.
17	HUANG Z , DAI H , JIANG J , et al. Dietary mulberry-leaf flavonoids improve the eggshell quality of aged breeder hens[J]. Theriogenology, 2022, 179, 177- 186. doi: 10.1016/j.theriogenology.2021.11.019
18	BENAVIDES-REYES C , FOLEGATTI E , DOMINGUEZ-GASCA N , et al. Research note: changes in eggshell quality and microstructure related to hen age during a production cycle[J]. Poult Sci, 2021, 100 (9): 101287. doi: 10.1016/j.psj.2021.101287
19	KHOGALI M K , WEN K , JAUREGUI D , et al. Probiotics-induced changes in intestinal structure and gut microbiota are associated with reduced rate of Pimpled eggs in the late laying period of hens[J]. J Poult Sci, 2022, 59 (3): 206- 222. doi: 10.2141/jpsa.0210061
20	李晓丽, 何万领, 位治国, 等. 酵母硒对蛋鸡生产性能、血清生化指标及常规蛋品质的影响[J]. 中国兽医学报, 2015, 35 (11): 1835- 1839.
	LI X L , HE W Q , WEI Z G , et al. Effects of yeast-Se on production performance, serum biochemical parameters and egg quality of laying hens[J]. Chinese Journal of Veterinary Science, 2015, 35 (11): 1835- 1839.
21	王贝贝, 武书庚, 张海华, 等. 饲粮添加大豆异黄酮对产蛋后期蛋鸡生产的影响[J]. 畜牧兽医学报, 2025, 56 (1): 295- 306.
	WANG B B , WU S G , ZHANG H H , et al. Effects of dietary soybean isoflavone supplementation on production of laying hens in late laying period[J]. Acta Veterinaria et Zootechnica Sinica, 2025, 56 (1): 295- 306.
22	王绍清, 曹红, 曹宝森. 扫描电镜法观察鸡蛋壳超微结构形貌[J]. 食品科学, 2013, 34 (13): 110- 114.
	WANG S Q , CAO H , CAO B S . Ultrastructure of chicken eggshell observed by scanning electron microscopy[J]. Food Science, 2013, 34 (13): 110- 114.
23	李治学, 魏丽娜, 章世元. 鸡蛋壳质量与超微结构关系的研究[J]. 中国畜牧杂志, 2008 (01): 35- 39.
	LI Z X , WEI L N , ZHANG S Y . Study on the relationship between egg shell quality and ultrastructure[J]. Chinese Journal of Animal Science, 2008 (01): 35- 39.
24	QIU J L , ZHOU Q , ZHU J M , et al. Organic trace minerals improve eggshell quality by improving the eggshell ultrastructure of laying hens during the late laying period[J]. Poult Sci, 2020, 99 (3): 1483- 1490. doi: 10.1016/j.psj.2019.11.006
25	MIKHAILOV K E . Avian eggshells: an atlas of scanning electron micrographs[M]. British: British Ornithologists' Club Occasional Publications, 1997.
26	廖旭杰, 陈炯昊, 黄振羽, 等. 蛋壳腺钙离子转运机制及蛋壳钙化过程研究进展[J]. 中国畜牧杂志, 2022, 58 (6): 91- 98.
	LIAO X J , CHEN J H , HUANG Z Y , et al. Research progress on the transport mechanism of calcium ion in eggshell gland and the process of eggshell calcification[J]. Chinese Journal of Animal Science, 2022, 58 (6): 91- 98.
27	HINCKE M , GAUTRON J , RODRIGUEZ-NAVARRO A B , et al. The eggshell: structure and protective function[M]. Improving the safety and quality of eggs and egg products, Cambridge: Woodhead Publishing, 2011: 151- 182.
28	HINCKE M T , NYS Y , GAUTRON J , et al. The eggshell: structure, composition and mineralization[J]. Fron Biosci (Landmark Ed), 2012, 17 (4): 1266- 1280.
29	JOHNSON P A , STEPHENS C S , GILES J R . The domestic chicken: Causes and consequences of an egg a day[J]. Poult Sci, 2015, 94 (4): 816- 820. doi: 10.3382/ps/peu083
30	FREEMAN C L , HARDING J H , QUIGLEY D , et al. Protein binding on stepped calcite surfaces: simulations of ovocleidin-17 on calcite {31.8}[J]. Phys Chem Chem Phys, 2012, 14 (20): 7287- 7295. doi: 10.1039/c2cp23987f
31	余丹, 邹成义, 李斌. 禽类蛋壳基质特异性蛋白—ovocleidin-17的研究进展[J]. 动物营养学报, 2013, 25 (6): 1164- 1168.
	YU D , ZOU C Y , LI B . Research progress of poultry eggshell matrix specific protein ovocleidin-17[J]. Chinese Journal of Animal Nutrition, 2013, 25 (6): 1164- 1168.
32	尧国荣, 熊立根, 文虹, 等. 家禽种蛋孵化过程蛋壳与壳膜成分结构的检测分析[J]. 黑龙江畜牧兽医, 2016 (24): 98-100, 294.
	YAO G R , XIONG L G , WEN H , et al. Detection and analysis of composition and structure of eggshell and shell membrane during hatching of poultry breeding eggs[J]. Heilongjiang Animal Science and Veterinary Medicine, 2016 (24): 98-100, 294.
33	杨凌霄, 刘长国. 鸡蛋壳Ovocleidin-116 (OC-116) 研究进展[J]. 中国家禽, 2015, 37 (22): 38- 40.
	YANG L X , LIU C G . Review on ovocleidin-116 (OC-116) in chicken eggshell[J]. China Poultry, 2015, 37 (22): 38- 40.
34	JIANG Q , SUN J , HE Y , et al. Hydroxychloride trace elements improved eggshell quality partly by modulating uterus histological structure and inflammatory cytokines expression in aged laying hens[J]. Poult Sci, 2021, 100 (11): 101453. doi: 10.1016/j.psj.2021.101453
35	MA Y , YAO J , ZHOU S , et al. Improvement of eggshell quality by dietary N-carbamylglutamate supplementation in laying chickens[J]. Poult Sci, 2020, 99 (8): 4085- 4095. doi: 10.1016/j.psj.2020.04.004
36	李丹. 饲粮中添加复合益生菌对产蛋不同阶段天府绿壳蛋鸡子宫部发育及蛋壳质量的影响[D]. 雅安: 四川大学, 2023.
	LI D . Effects of probiotics supplementation in the diet on uterine development and eggshell quality of Tianfu green-shelled laying hens at different stages of egg production[J]. Ya'an: Sichuan University, 2023,
37	戴宏健, 吕增鹏, 黄振吾, 等. 山楂叶黄酮对产蛋后期种鸡蛋壳品质的影响[J]. 畜牧兽医学报, 2021, 52 (4): 1010- 1019.
	DAI H J , LV Z P , HUANG Z W , et al. Effects of hawthorn-leaves flavonoids on the quality of eggshells of breeder hens in late egg-laying period[J]. Acta Veterinaria et Zootechnica Sinica, 2021, 52 (4): 1010- 1019.

基因Gene	引物序列(5′→3′) Primer sequence	产物长度/bp Amplicon size
OC-17	F: AGGGCTCAGCAAGAAGTAGC R: TGTCCCCATTATAGGCTTTGC	259
OC-116	F: GATCCCGACAAATGGCCCTG R: TTAGAGGGCGTGTTAATGGGT	390
OCX-32	F: ACGCGTCCGCAGCAG R: ACGCGTCCGCAGCAG	102
