用于传染性支气管炎病毒核酸检测的N蛋白基因装甲RNA质控品的制备

doi:10.11843/j.issn.0366-6964.2025.11.034

Abstract

Abstract:

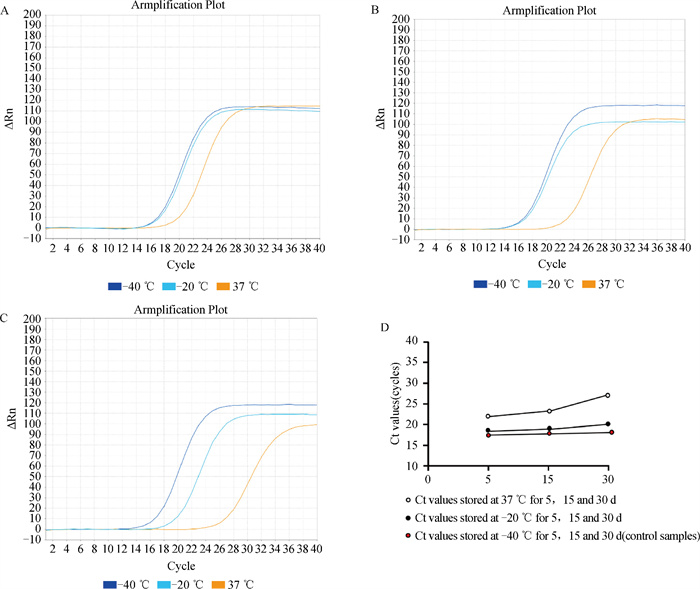

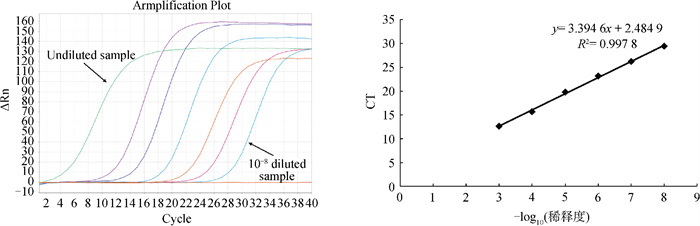

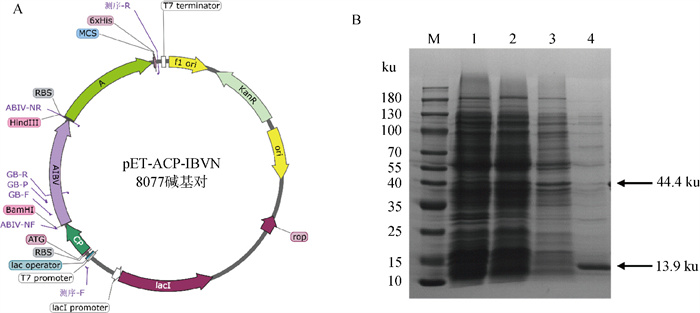

The objective of this study is to develop a quality-controled product that can be used in the RNA detection of infectious bronchitis virus (IBV). The relatively conserved N protein gene of IBV was selected as the target sequence, and it was cloned into the vector pET-28a(+) with the MS2 phage capsid protein gene and packaging site sequence, and the RNA containing the N protein gene sequence of IBV was obtained by induction expression and purification, and its physical characteristics were observed by electron microscopy, and the copy number was accurately quantified by digital PCR. The real-time RT-PCR method introduced in the national standard GB/T23197—2022 was used to verify the detection of purified armor RNA, and the RNase enzyme resistance and storage stability were verified as well. The armored RNA containing IBV N gene was successfully constructed, which was resistant to the degradation of RNase enzyme and could be stably stored at 37℃ for above 15 days. The developed armor RNA has the potential to become a positive control product for IBV, which can realize the quality control of the whole process of RNA virus detection.

Key words: avian infectious bronchitis, protein N, quality control sample, nucleic acid detection, armored RNA

CLC Number:

S852.659.2

XIONG Yaoyu, LIU Dan, GAO Jianshuai, LI Huitong, ZHANG Boyuan, DING Jiabo, JIANG Hui, FAN Xuezheng, SHEN Qingchun. Preparation of N-protein Gene Armor RNA Control for Infectious Bronchitis Virus Nucleic Acid Detection[J]. Acta Veterinaria et Zootechnica Sinica, 2025, 56(11): 5770-5777.

Figures/Tables 7

Fig. 1

Fig. 2

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Table 1

References 27

1	NIIT,ISOBEN,YOSHIMURAY.Effects of Avian infectious bronchitis virus antigen on eggshell formation and immunoreaction in hen oviduct[J].Theriogenology,2014,81(8):1129-1138. doi: 10.1016/j.theriogenology.2014.02.002
2	BOLTZD A,ZIMMERMANC R,NAKAIM,et al.Epididymal stone formation and decreased sperm production in roosters vaccinated with a killed strain of Avian infectious bronchitis virus[J].Avian Dis,2006,50(4):594-598. doi: 10.1637/7654-052506R.1
3	BANDEF,ARSHADS S,OMARA R,et al.Pathogenesis and diagnostic approaches of Avian infectious bronchitis[J].Adv Virol,2016,2016,4621659.
4	刘胜旺.我国鸡传染性支气管炎流行现状及原因分析[J].中国家禽,2010,32(16):5-9.
	LIUS W.Epidemic status and causes of infectious bronchitis in chickens in China[J].China Poultry,2010,32(16):5-9.
5	WILLEM,HOLMESE C.Wild birds as reservoirs for diverse and abundant gamma-and deltacoronaviruses[J].FEMS Microbiol Rev,2020,44(5):631-644. doi: 10.1093/femsre/fuaa026
6	RAFIQUES,JABEENZ,PERVAIZT,et al.Avian infectious bronchitis virus (AIBV) review by continent[J].Front Cell Infect Microbiol,2024,14,1325346. doi: 10.3389/fcimb.2024.1325346
7	周蛟.近年世界禽病流行现状[J].中国畜牧杂志,2007(16):2-7.
	ZHOUJ.World epidemiological status of avian diseases in recent years[J].Chinese Journal of Animal Science,2007(16):2-7.
8	KHATABYK,FELLAHIS,LOUTFIC,et al.Avian infectious bronchitis virus in Africa: a review[J].Vet Q,2016,36(2):71-75. doi: 10.1080/01652176.2015.1126869
9	KONGX Q,WANGY J,FANGZ X,et al.False-positive results of SARS-CoV-2 RT-PCR in oropharyngeal swabs from vaccinators[J].Front Med (Lausanne),2022,9,847407.
10	李金明,宋如俊,王露楠,等.耐核糖核酸酶病毒样颗粒的构建和表达[J].中华检验医学杂志,2003(2):21-23, 64.
	LIJ M,SONGR J,WANGL N,et al.Construction and expression of RNase-resistant virus-like particles[J].Chinese Journal of Laboratory Medicine,2003(2):21-23, 64.
11	PASLOSKEB L,WALKERPEACHC R,OBERMOELLERR D,et al.Armored RNA technology for production of ribonuclease-resistant viral RNA controls and standards[J].J Clin Microbiol,1998,36(12):3590-3594. doi: 10.1128/JCM.36.12.3590-3594.1998
12	李朋霏,宋晓明,周保琨,等.用于非洲猪瘟病毒核酸检测的假病毒阳性对照品的制备和标定[J].中国畜牧兽医,2023,50(2):647-655.
	LIP F,SONGX M,ZHOUB K,et al.Preparation and calibration of pseudovirus positive controls for nucleic acid detection of African swine fever virus[J].China Animal Husbandry & Veterinary Medicine,2023,50(2):647-655.
13	乔彩霞. H1和H3亚型流感病毒荧光RT-PCR及装甲RNA标准物质的研究和应用[D]. 北京: 中国农业大学, 2014.
	QIAO C X. Research and application of H1 and H3 subtype influenza viruses by fluorescence RT-PCR and armored RNA reference materials[D]. Beijing: China Agricultural University, 2014. (in Chinese)
14	WALKERPEACHC R,WINKLERM,DUBOISD B,et al.Ribonuclease-resistant RNA controls (armored RNA) for reverse transcription-PCR, branched DNA, and genotyping assays for hepatitis C virus[J].Clin Chem,1999,45(12):2079-2085. doi: 10.1093/clinchem/45.12.2079
15	GONCHAROVAE A,DEDKOVV G,DOLGOVAA S,et al.One-step quantitative RT-PCR assay with armored RNA controls for detection of SARS-CoV-2[J].J Med Virol,2021,93(3):1694-1701. doi: 10.1002/jmv.26540
16	刘帆,任广彩,闫圆圆,等.鸡传染性支气管炎病毒的分离鉴定及其致病性的研究[J].中国兽医科学,2019,49(7):861-870.
	LIUF,RENG C,YANY Y,et al.Isolation, identification and pathogenicity of infectious bronchitis virus in chickens[J].Chinese Veterinary Science,2019,49(7):861-870.
17	TANL,WENG,YUANY,et al.Development of a recombinant thermostable Newcastle disease virus (NDV) vaccine express infectious bronchitis virus (IBV) multiple epitopes for protecting against IBV and NDV challenges[J].Vaccines (Basel),2020,8(4):564. doi: 10.3390/vaccines8040564
18	赵史宇辰,汤思淇,冯亚莉,等.病毒检测方法研究进展[J].中国畜牧兽医,2023,50(11):4536-4544.
	ZHAOS Y C,TANGS Q,FENGY L,et al.Research progress on virus detection methods[J].China Animal Husbandry & Veterinary Medicine,2023,50(11):4536-4544.
19	STORCHG A.Diagnostic virology[J].Clin Infect Dis,2000,31(3):739-751. doi: 10.1086/314015
20	夏立业.鸡传染性支气管炎诊断方法的研究进展[J].家禽科学,2023,45(8):70-73.
	XIAL Y.Research progress on diagnostic methods for infectious bronchitis in chickens[J].China Poultry Science,2023,45(8):70-73.
21	温和心,龙英全,蒋荣华,等.RNA病毒质控物研究进展[J].动物医学进展,2013,34(1):97-101.
	WENH X,LONGY Y,JIANGR H,et al.Research progress on RNA virus quality controls[J].Progress in Veterinary Medicine,2013,34(1):97-101.
22	XIAY,LIUK,WANGF,et al.Self-assembled virus-like particle vaccines via fluorophilic interactions enable infection mimicry and immune protection[J].Adv Healthc Mater,2023,12(32):e2301647. doi: 10.1002/adhm.202301647
23	ARGETSINGERJ E,GUSSING N.Intact ribonucleic acid from defective particles of bacteriophage R17[J].J Mol Biol,1966,21(3):421-434. doi: 10.1016/0022-2836(66)90016-7
24	ZHANS,LIJ,XUR,et al.Armored long RNA controls or standards for branched DNA assay for detection of human immunodeficiency virus type 1[J].J Clin Microbiol,2009,47(8):2571-2576. doi: 10.1128/JCM.00232-09
25	WEIY,YANGC,WEIB,et al.RNase-resistant virus-like particles containing long chimeric RNA sequences produced by two-plasmid coexpression system[J].J Clin Microbiol,2008,46(5):1734-1740. doi: 10.1128/JCM.02248-07
26	WEIB,WEIY,ZHANGK,et al.Construction of armored RNA containing long-size chimeric RNA by increasing the number and affinity of the pac site in exogenous RNA and sequence coding coat protein of the MS2 bacteriophage[J].Intervirology,2008,51(2):144-150. doi: 10.1159/000141707
27	NASKALSKAA,HEDDLEJ G.Virus-like particles derived from bacteriophage MS2 as antigen scaffolds and RNA protective shells[J].Nanomedicine (Lond),2024,19(12):1103-1115. doi: 10.2217/nnm-2023-0362

差异源 Source of difference	平方和 SS	自由度 df	均方 MS	F值 F-value	P值 P-value	F临界值 F crit
组间Between groups	0.009 12	2	0.004 56	0.670 26	0.529 726	3.885 294
组内Within groups	0.081 64	12	0.006 803
总计Total	0.090 76	14	/	/	/	/
