一株牛源变栖克雷伯菌噬菌体的分离鉴定、生物学特性及全基因组分析

doi:10.11843/j.issn.0366-6964.2025.12.038

摘要/Abstract

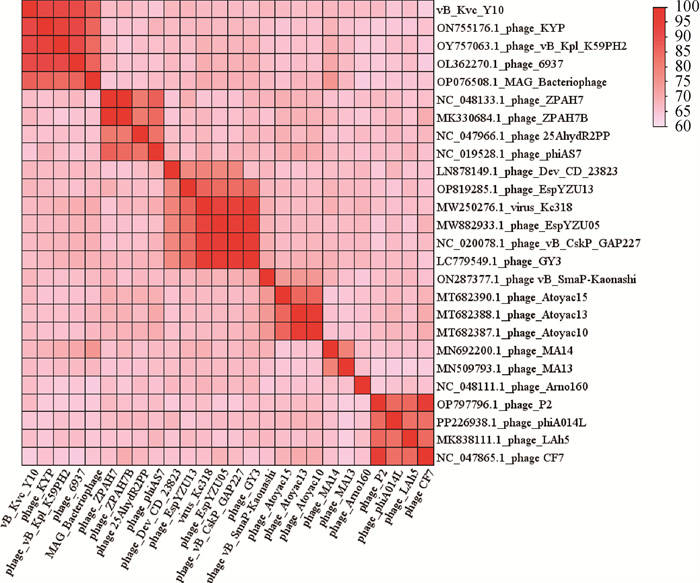

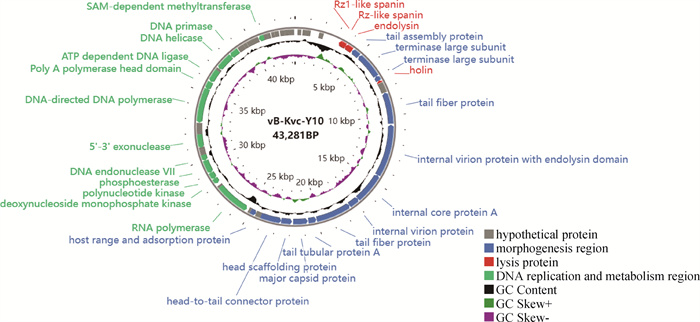

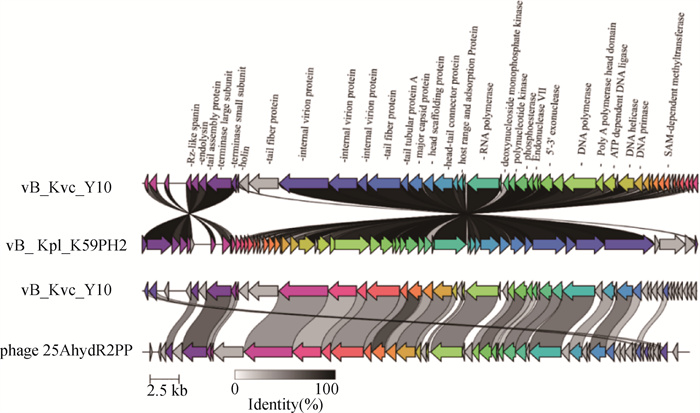

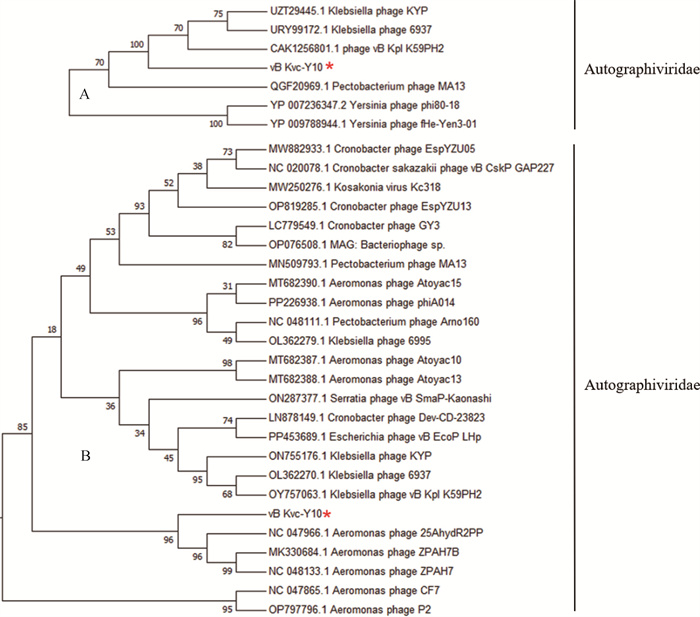

摘要： 旨在对1株分离出的变栖克雷伯菌噬菌体进行生物学特性及全基因组分析。使用双层平板法从四川省某奶牛场乳样中分离、纯化出1株裂解性噬菌体，测定其裂解谱、热稳定性、酸碱耐受度、最佳感染复数及一步生长曲线等生物学特性，并进行全基因组分析,同时采用透射电镜观察噬菌体形态。结果显示，分离得到一株裂解性变栖克雷伯噬菌体vB-Kvc-Y10，噬菌斑透明且有晕环，透射电镜显示其有一丝状短尾。生物学研究结果表明，噬菌体Y10宿主特异性强，不耐高温，不耐酸，最佳感染复数为0.01。一步生长曲线结果显示：潜伏期为40 min，裂解量306。全基因组分析表明：噬菌体Y10属于自复制短尾噬菌体科，为dsDNA病毒。完整基因组大小为43 281 bp，GC 含量为 56.19%，51个ORFs中有29个具有可推定的功能，且具有明显的功能分区。在Y10基因组中，没有发现tRNA和毒力基因的存在。遗传进化树和ANI分析均表明，噬菌体Y10与噬菌体vB_Kpl_K59PH2(登录号：OY757063)的亲缘关系最近。综上，本研究分离的噬菌体vB-Kvc-Y10是一株高特异性的裂解性噬菌体，不具有毒力基因，具有防治细菌感染的潜力。

关键词: 变栖克雷伯菌噬菌体, 分离鉴定, 生物学特性, 全基因组分析

Abstract: This study aimed to isolate a lytic Klebsiella variicola bacteriophage, characterize its biological properties, and conduct whole-genome analysis. The phage was isolated and purified by the double-layer agar culture method from a dairy farm in Sichuan province. Its biological characteristics, including lysis spectrum, thermal stability, acid-base tolerance, optimal infection multiplicity, and one-step growth curve, were determined. Additionally, whole-genome analysis was conducted and phage morphology was observed by transmission electron microscopy (TEM). The results showed that, the isolated lytic Klebsiella variicola bacteriophage vB_Kvc_Y10. The morphology of plaque is round and transparent with clear boundaries, and the TEM shows that Y10 has a short, filamentous tail. The biological results showed that phage Y10 has high host specificity, and is not resistant to high temperatures and acidic environment. Meanwhile, the optimal multiplicity of infection (OMOI) is 0.01. The result of one-step growth curve assay indicates that the latency period is 40 minutes, and the lysis amount is 306. Whole-genome analysis indicates that bacteriophage Y10 belongs to the family of Autographiviridaes and is a dsDNA virus. The complete genome size is 43 281 bp, with a GC content of 56.19%. Among the 51 ORFs, 29 have putative functions and exhibit distinct functional partitions. No tRNA or toxin genes are found in the Y10 genome. Both the phylogenetic tree and ANI analysis indicate that bacteriophage Y10 is closely related to bacteriophage vB_Kpl_K59PH2 (accession number: OY757063). In conclusion, bacteriophage Y10 is a highly specific lytic bacteriophage without virulence genes, presenting potential for the prevention and treatment of bacterial infections.

Key words: Klebsiella variicola bacteriophage, isolation and identification, biological properties, genome-wide analysis

中图分类号:

S852.61

曾严, 杨永根, 吴兆敏, 张洁如, 王印, 罗燕, 杨泽晓, 曹随忠, 姚学萍. 一株牛源变栖克雷伯菌噬菌体的分离鉴定、生物学特性及全基因组分析[J]. 畜牧兽医学报, 2025, 56(12): 6364-6374.

ZENG Yan, YANG Yonggen, WU Zhaomin, ZHANG Jieru, WANG Yin, LUO Yan, YANG Zexiao, CAO Suizhong, YAO Xueping. Isolation and Identification, Biological Properties, and Whole-genome Analysis of a Lytic Bovine Klebsiella variicola Bacteriophage[J]. Acta Veterinaria et Zootechnica Sinica, 2025, 56(12): 6364-6374.

参考文献

[1] 朱昱蓉, 刘荣华. 肺炎克雷伯菌、类肺炎克雷伯菌和变栖克雷伯菌的研究进展[J].中国感染控制杂志, 2023, 22(8):983-989.
ZHU Y R, LIU R H. Advance in Klebsiella pneumoniae, Klebsiella quasipneumoniae and Klebsiella variicola[J].Chinese Journal of Infection Control, 2023, 22(8):983-989.(in Chinese)
[2] 钟一鸣, 罗昕怡, 李艳明, 等. 变栖克雷伯菌感染患者的临床特征[J]. 中国感染控制杂志, 2023,22(1):38-43.
ZHONG Y M, LUO X Y, LI Y M, et al. Clinical characteristics of patients with Klebsiella variicola infection[J].Chinese Journal of Infection Control,2023,22(1):38-43.(in Chinese)
[3] JEKL V, PISKOVSKA A, DRNKOVA I, et al. Case Report: Spontaneous appendicitis with suspected involvement of Klebsiella variicola in two pet rabbits[J]. Front Vet Sci, 2021,8:779517.
[4] DANIS-WLODARCZYK K, DBROWSKA K, ABEDON S T. Phage Therapy: The pharmacology of antibacterial viruses[J]. Curr Issues Mol Biol, 2021,40:81-164.
[5] FEINER R, ARGOV T, RABINOVICH L, et al. A new perspective on lysogeny: prophages as active regulatory switches of bacteria [J]. Nat Rev Microbiol, 2015,13(10):641-650.
[6] CLARK J R, MARCH J B. Bacteriophages and biotechnology: vaccines, gene therapy and antibacterials [J]. Trends Biotechnol, 2006，24(5)： 212-218.
[7] MCCALLIN S, SACHER J C, ZHENG J, et al. Current state of compassionate phage therapy [J]. Viruses 2019, 11(4):343.
[8] STRATHDEE S A, HATFULL G F, MUTALIK V K, et al. Phage therapy: from biological mechanisms to future directions[J]. Cell, 2023，186(1):17-31.
[9] LU B, YAO X, HAN G, et al. Isolation of Klebsiella pneumoniae phage vB_KpnS_MK54 and pathological assessment of endolysin in the treatment of pneumonia mice model[J]. Front Microbiol, 2022, 13: 854908.
[10] ASIF M, ALVI I A, WAQAS M, et al. A K-17serotype specific Klebsiella phage JKP2 with biofilm reduction potential[J]. Vet Res, 2023, 329:199107.
[11] 沈秀平, 张释丹, 刘源平, 等. 噬菌体制剂雾化治疗多重耐药肺炎克雷伯菌感染小鼠的效果评价[J]. 中国生物工程杂志, 2025,45(Z1):1-12.
SHEN X P, ZHANG S D, LIU Y P, et al. Evaluation of therapeutic efficacy of multi-drug resistant Klebsiella pneumoniae in a mouse model by inhalation of nebulized bacteriophage[J]. China Biotechnology, 2025,45(Z1):1-12.(in Chinese)
[12] LIM K B, BALOLONG M P, KIM S H, et al. Isolation and characterization of a broad spectrum bacteriocin from bacillus amyloliquefaciens RX7[J]. Biomed Res Int, 2016, 8521476.
[13] 朱一诺. 两株鲍曼不动杆菌噬菌体的分离鉴定及生物学特性和基因组学的分析[D]. 北京：北京化工大学, 2022.
ZHU Y N. Isolation and identification of Acinetobacter baumannii phages and their biological characteristics and genomics analysis[D].Beijing: Beijing University of Chemical Technology, 2022.(in Chinese)
[14] 侯忠余, 李传友, 朱成林, 等. 1株金黄色葡萄球菌烈性噬菌体的生物学特性及其裂解效果[J]. 食品科学, 2022, 43(8):113-120.
HOU Z Y, LI C Y, ZHU C L, et al. Biological characteristics and lytic activity of a virulent Staphylococcus aureus phage[J]. Food Science, 2022, 43(8):113-120.(in Chinese)
[15] WIOLETA W M, JOANNA B, MALGORZATA L B, et al. Lysis of bacterial cells in the process of bacteriophage release - canonical and newly discovered mechanisms[J]. Postepy Hig Med Dosw, 2015, 69(1):114-126.
[16] ECKSTEIN S, STENDER J, MZOUGHI S, et al. Isolation and characterization of lytic phage TUN1 specific for Klebsiella pneumoniae K64 clinical isolates from Tunisia[J]. BMC Microbiology, 2021,21(1):186.
[17] SEEMANN T. Prokka: rapid prokaryotic genome annotation. Bioinformatics[J]. Bioinformatics, 2014；30(14):2068-2069.
[18] CANTALAPIEDRA C P, HERNÁNDEZ-PLAZA A, LETUNIC I, et al. eggNOGmapper v2: functional annotation, orthology assignments, and domain prediction at the metagenomic scale[J]. Mol Biol Evol, 2021, 38(12):5825-5829.
[19] LIU B, ZHENG D, ZHOU S, et al. VFDB 2022: a general classification scheme for bacterial virulence factors[J]. Nucleic Acids Res, 2022, 50(D1):D912-D917.
[20] BORTOLAIA V, KAAS R S, RUPPE E, et al. ResFinder 4.0 for predictions of phenotypes from genotypes[J]. J Antimicrob Chemother, 2020, 75(12):3491-3500.
[21] GRANT JR, STOTHARD P. The CGView Server: a comparative genomics tool for circular genomes[J]. Nucleic Acids Res, 2008, 36(Web Server issue):W181-4.
[22] DRULIS Z, MACKIEWICZ P, KESIK A, et al. Isolation and characterization of KP34—A novel φKMV-like bacteriophage for Klebsiella pneumoniae[J]. Appl Microbiol Biotechnol, 2011, 90, 1333-1345.
[23] SAMIR S. Molecular machinery of the triad holin, endolysin, and spanin: key players orchestrating bacteriophage-induced cell lysis and their therapeutic applications[J]. Protein Pept Lett, 2024, 31(2):85-96.
[24] KONGARI R, RAJAURE M, CAHILL J, et al. Phage spanins: diversity, topological dynamics and gene convergence[J]. BMC Bioinformatics, 2018;19(1):326.
[25] WINTACHAI P, SURACHAT K, SINGKHAMANAN K. Isolation and characterization of a novel autographiviridae phage and its combined effect with tigecycline in controlling multidrug-resistant Acinetobacter baumannii-associated skin and soft tissue infections[J]. Viruses, 2022, 14(2):194.
[26] 姜姗杉, 赵日虹, 邱操, 等. 肺炎克雷伯菌噬菌体vB_KpnP_71Y的生物学特性及基因组分析[J]. 中国兽医学报, 2024, 44(11):2400-2408.
JIANG S S, ZHAO R H, QIU C, et al. Biological characteristics and genomic analysis of phage vB_KpnP_71Y of Klebsiella pneumoniae[J]. Chinese Journal of Veterinary Science, 2024, 44(11):2400-2408.(in Chinese)
[27] 金晓, 钟佑宏, 范旭, 等. 1株肺炎克雷伯菌噬菌体的分离及初步研究[J]. 医学动物防制, 2024, 40(11):1136-1140.
JIN X, ZHONG Y H, FAN X, et al. Isolation and preliminary study of one strain of Klebsiella pneumoniae phage[J]. Journal of Medical Pest Control, 2024, 40(11):1136-1140.(in Chinese)
[28] 张改, 靳静, 王山梅, 等. 一株新型肺炎克雷伯菌裂解性噬菌体Pdz533的生物学特性及全基因组分析[J]. 中国病原生物学杂志, 2023,18(11):1303-1310.
ZHANG G, JIN J, WANG S M, et al. Biological characteristics and complete genome analysis of a novel Klebsiella pneumoniae lytic phage Pdz533[J]. Journal of Pathogen Biology, 2023,18(11):1303-1310.(in Chinese)
[29] 孙续, 中拉毛草, 杨峰, 等. 肺炎克雷伯菌噬菌体的分离鉴定及vB_KpnS_Yuri1的生物学特性研究[J]. 中兽医医药杂志, 2024, 43(3):1-9,105.
SUN X, ZHONG L M C, YANG F, et al. Isolation and identification of phage of Klebsiella pneumoniae and study on biological characteristics of vB_KpnS_Yuri1[J]. Journal of Traditional Chinese Veterinary Medicine, 2024, 43(3):1-9,105.(in Chinese)
[30] 侯宫明珠, 周海琴, 余星雨, 等. 1株羊源多重耐药肺炎克雷伯菌噬菌体的生物学特性及全基因组分析[J]. 中国畜牧兽医, 2024, 51(5):2047-2057.
HOU G M Z, ZHOU H Q, YU X Y, et al. Biological characteristics and whole genome analysis of a multidrug-resistant Klebsiella pneumoniae phage of sheep origin[J]. China Animal Husbandry & Veterinary Medicine, 2024, 51(5):2047-2057.(in Chinese)
[31] XU J, LI X, KANG G, et al. Isolation and characterization of AbTJ, an Acinetobacter baumannii phage, and functional identification of its receptor-binding modules[J]. Viruses, 2020, 12(2): 205.
[32] POPOVA A.V, SHNEIDER M, ARBATSKY N P, et al. Specific interaction of novel friunavirus phages encoding tailspike depolymerases with corresponding Acinetobacter baumannii capsular types[J]. J Virol, 2020, 95(5): e01714-20.
[33] BUJAK K, DECEWICZ P, KITOWICZ M, et al. Characterization of three novel virulent aeromonas phages provides insights into the diversity of the Autographiviridae family[J]. Viruses, 2022, 14(5):1016.
[34] MOROZOVA V, KOZLOVA Y, JDEED G, et al. A novel Aeromonas popoffii phage AerP_220 proposed to be a member of a new tolavirus genus in the Autographiviridae family.[J] Viruses, 2022, 14(12):2733.
[35] LAVIGNE R, SETO D, MAHADEVAN P, et al. Unifying classical and molecular taxonomic classification: analysis of the Podoviridae using BLASTP-based tools[J]. Res Microbiol, 2008, 159(5):406-414.
[36] CAHILL J, YOUNG R. Phage lysis: multiple genes for multiple barriers[J]. Adv Virus Res, 2019, 103:33-70.
[37] BERRY J, RAJAURE M, PANG T, et al. The spanin complex is essential for lambda lysis[J]. J Bacteriol, 2012, 194(20):5667-74.
[38] CHEN X, LIU M, ZHANG P, et al. Phage-derived depolymerase as an antibiotic adjuvant against multidrug-resistant Acinetobacter baumannii [J]. Front Microbiol, 2022, 13:845500.
[39] DION M, OECHSLIN F, MOINEAU S. Phage diversity, genomics and phylogeny [J]. Nat Rev Microbiol, 2020,18(3):125-138.
[40] KRESKEN M, BECKER K, SEIFERT H, et al. Resistance trends and in vitro activity of tigecycline and 17 other antimicrobial agents against Gram-positive and Gram-negative organisms, including multidrug-resistant pathogens, in Germany[J]. Eur J Clin Microbiol Infect Dis, 2011, 30(9):1095-1103.
[41] CHAN B K, ABEDON S T. Bacteriophages and their enzymes in biofilm control[J]. Curr Pharm Des, 2015, 21(1):85-99.
[42] ALVES D R, GAUDION A, BEAN J E, et al. Combined use of bacteriophage K and a novel bacteriophage to reduce Staphylococcus aureus biofilm formation[J]. Appl Environ Microbiol, 2014, 80(21):6694-6703.
[43] LUNGREN M P, CHRISTENSEN D, KANKOTIA R, et al. Bacteriophage K for reduction of biofilm on central venous catheter material[J]. Bacteriophage, 2013, 3(4): e26825.
[44] LU Y, FANG C, XXIANG L, et al. Characterization and therapeutic potential of three depolymerases against K54 capsular-type Klebsiella pneumoniae[J]. Microorganisms. 2025，13(7):1544.
[45] RYAN E, ALKAWAREEK M, DONNELLY R, et al Synergistic phage-antibiotic combinations for the control of Escherichia coli biofilms in vitro [J]. FEMS Immunol Med Microbiol, 2012, 65: 395-398.
[46] POPOVA A., LAVYSH D, KLIMUK E, et al. Novel fri1-like viruses infecting Acinetobacter baumannii-vB_AbaP_AS11 and vB_AbaP_AS12-characterization, comparative genomic analysis, and host-recognition strategy[J]. Viruses, 2017, 9(7):188.
[47] ANDO H, LEMIRE S, PIRES, D, et al. Engineering modular viral scaffolds for targeted bacterial population editing[J]. Cell Syst, 2015, 1(3):187-196.
