A型口蹄疫病毒多表位纳米融合蛋白制备及全自动磁微粒CLIA抗体检测方法的建立

doi:10.11843/j.issn.0366-6964.2025.12.027

摘要/Abstract

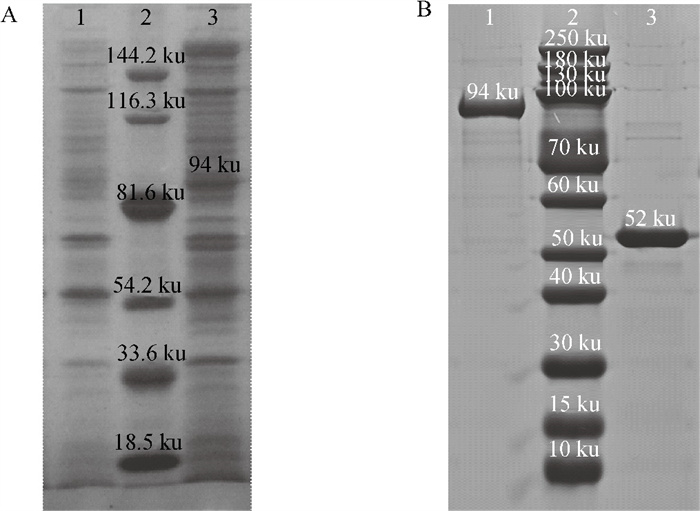

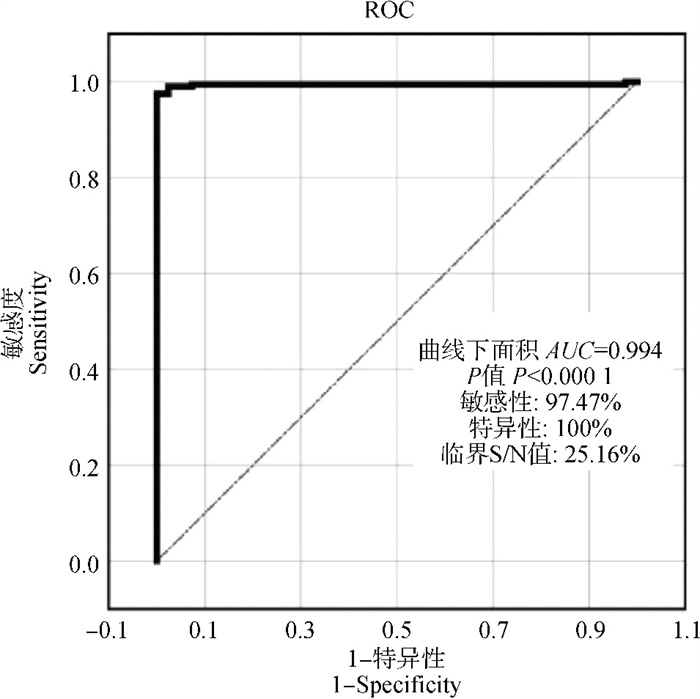

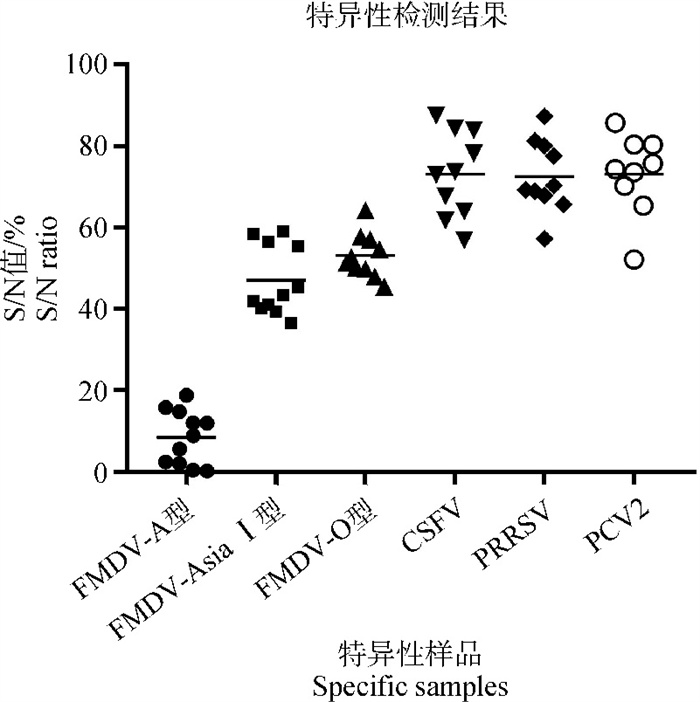

摘要： 本研究旨在制备A型口蹄疫病毒(FMDV-A)多表位纳米融合蛋白并建立磁微粒CLIA抗体检测方法，为FMDV的临床监测和防控提供技术支撑。以表达的FMDV-A型多表位融合蛋白及其多克隆抗体为基础建立FMDV-A型磁微粒CLIA抗体检测方法，优化反应条件，并与商品化试剂盒同时进行临床样品的检测，比较两种方法的符合率。结果显示：本研究最终成功制备了高可溶性FMDV-A型多表位纳米融合蛋白及其特异性多克隆抗体，多克隆抗体效价为1∶5 120，并根据竞争法免疫原理建立了FMDV-A型磁微粒CLIA抗体检测方法。SA-Beads最佳浓度为0.5 mg·mL^-1，生物素标记的FMDV-A型重组蛋白抗原最佳工作浓度为5 μg·L^-1，AE标记的多克隆抗体最佳工作浓度为2 μg·L^-1；最佳上样体积为10 μL，最佳反应时间为15 min。敏感性试验结果表明，该方法的敏感性为97.47%，敏感性好。特异性试验结果表明，与其他相似病原没有交叉反应，特异性强。重复性试验结果说明变异系数CV值均小于5%，具有良好的稳定性和重复性。临床试验结果表明，与中国农科院兰州兽医研究所LPB-ELISA方法比较，总符合率为96.76%，为国内FMDV-A的研究与快速诊断建立了技术基础。本研究成功制备FMDV-A型毒株的VP1多表位融合纳米颗粒蛋白，并获得其高效价多克隆抗体，应用该蛋白和多克隆抗体建立了FMDV-A型磁微粒CLIA抗体检测方法。

关键词: A型口蹄疫病毒, 铁蛋白, CLIA, 磁微粒化学发光, 纳米颗粒

Abstract: This experiment was conducted to prepare a multi-epitope nanofusion protein of foot-and-mouth disease virus serotype A (FMDV-A) and to establish a magnetic particle CLIA antibody detection method, which was to provide technical support for clinical immunization monitoring, prevention and control of FMDV. In this study, a magnetic particle chemiluminescent immunoassay (CLIA) for detecting antibodies against foot-and-mouth disease virus serotype A (FMDV-A) was established based on the expressed multi-epitope fusion protein of FMDV-A and its polyclonal antibody. Reaction conditions were optimized, and clinical samples were simultaneously tested using this method and commercial kits to compare the coincidence rate between the two methods. Finally, a highly soluble FMDV-A multi-epitope nanofusion protein and specific polyclonal antibody with a titer of 1∶5 120 were successfully prepared. A magnetic particle CLIA for FMDV-A antibodies detection was established based on the principle of competitive immunoassay. The optimal concentration of streptavidin magnetic beads (SA-Beads) was 0.5 mg·mL^-1, the optimal concentration of biotin-labeled recombinant FMDV-A protein antigen was 5 μg·L^-1, and the optimal concentration of acridinium ester (AE)-labeled polyclonal antibody was 2 μg·L^-1. The optimal sample volume was 10 μL, and the optimal reaction time was 15 minutes. The sensitivity test results show that the sensitivity of this method is 97.47%, and the sensitivity is good. No cross-reactivity was observed with other clinically similar pathogens, demonstrating strong specificity. The results of repeatability test demonstrated that coefficient of variation (CV) values were less than 5%, which had good stability and repeatability The results of the clinical trials indicated that the overall coincidence rate was 96.76% when compared with the LPB-ELISA method developed by Lanzhou Veterinary Research Institute. This research has established a technical foundation for the research and rapid diagnosis on type A foot-and-mouth disease in China. This study successfully prepared a VP1 multi epitope fusion nanoparticle protein of FMDV-A strain and obtained its high titer polyclonal antibody. The protein and polyclonal antibody were used to establish a detection method for FMDV-A magnetic particle CLIA antibody.

Key words: foot-and-mouth disease virus type A, ferritin, CLIA, magnetic particles chemiluminescence, nanoparticle

中图分类号:

S855.3

郑雪莹, 王培, 孙伟珊, 赵浩军, 殷雨晴, 李佳, 程汝佳, 刘海莹, 王大猛, 穆伟, 李达, 陈锡俊, 郑博君, 梅力. A型口蹄疫病毒多表位纳米融合蛋白制备及全自动磁微粒CLIA抗体检测方法的建立[J]. 畜牧兽医学报, 2025, 56(12): 6257-6270.

ZHENG Xueying, WANG Pei, SUN Weishan, ZHAO Haojun, YIN Yuqing, LI Jia, CHENG Rujia, LIU Haiying, WANG Dameng, MU Wei, LI Da, CHEN Xijun, ZHENG Bojun, MEI Li. Preparation of Multi-epitope Nanofusion Protein for Foot-and-Mouth Disease Virus Serotype A and Development for Antibodies Detection of a Full-Automated Magnetic Particle Chemiluminescent Immunoassay (CLIA)[J]. Acta Veterinaria et Zootechnica Sinica, 2025, 56(12): 6257-6270.

参考文献

[1] ADMASSU B,GETNET K,SHITE A, et al. Review on foot and mouth disease: Distribution and economic significance[J]. J Anim Dis, 2015, 4(3): 160-169.
[2] KNOWLES N,SAMUEL A. Molecular epidemiology of foot-and-mouth disease virus[J]. J Virus Res, 2003, 9(1): 65-80.
[3] 赵家昌, 俞挺, 孙建国, 等.口蹄疫流行现状及防控措施[J].山东畜牧兽医, 2023, 44(8): 42-45，49.
ZHAO J C, YU T, SUN J G, et al. Current situation and prevention and control measures of foot-and-mouth disease epidemic[J]. Shangdong Journal of Animal Science and Veterinary Medicine, 2023, 44(8): 42-45, 49. (in Chinese)
[4] RAHMAN M, ZEREEN F, RANA M, et al. Foot-and-mouth disease in Asia[J]. Virus Res, 2025, 351: 199514.
[5] 何继军, 刘湘涛.口蹄疫的流行与防控[J].兽医导刊, 2014(5):19-22.
HE J J, LIU X T. The epidemic and prevention of foot and mouth disease[J]. Veterinary Orientation, 2014(5): 19-22. (in Chinese)
[6] ASLAM M, ALKHERAIJE K A. The prevalence of foot-and-mouth disease in Asia[J]. Front Vet Sci, 2023, 10: 1201578.
[7] 孙映雪, 宋建德, 张秀娟, 等.2021年全球口蹄疫流行状况及特点[J].中国动物检疫, 2022, 39(12):50-53.
SUN Y X, SONG J D, ZHANG X J, et al. Analysis on global prevalence and characteristics of foot-and-mouth disease in 2021[J]. China Animal Health Inspection, 2022, 39(12): 50-53. (in Chinese)
[8] MA L N, ZHANG J, CHEN H T, et al. An overview on ELISA techniques for FMD[J]. Virol J, 2011, 8(1): 1-9.
[9] 董志强, 张志, 李晓成, 等.口蹄疫检测技术研究进展[J].中国动物检疫, 2007(3): 48-50.
DONG Z Q, ZHANG Z, LI X C, et al. Research progress on foot-and-mouth disease detection technology[J]. China Animal Health Inspection, 2007(3): 48-50. (in Chinese)
[10] 包艳芳, 蒋韬, 何莉, 等.口蹄疫病毒O型全自动磁微粒CLIA抗体定量检测方法的建立[J].中国农业科学, 2024, 57(4): 810-819.
BAO Y F, JIANG T, HE L, et al. Development of a full-automated magnetic particle chemiluminescence immunoassay assay for quantitative detection of antibodies against foot and mouth disease virus serotype O[J]. Scientia Agricultura Sinica, 2024, 57(4): 810-819. (in Chinese)
[11] GOTO F, YOSHIHARA T, SHIGEMOTO N, et al. Iron fortification of rice seed by the soybean ferritin gene[J]. Nat Biotechnol, 1999, 17(3): 282-286.
[12] ZENG Q, REUTHER R, OXSHER J, et al. Characterization of horse spleen apoferritin reactive lysines by MALDI-TOF mass spectrometry combined with enzymatic digestion[J]. Bioorg Chem, 2008, 36(5): 255-260.
[13] 尚金梦, 赵静, 常亮, 等.纳米疫苗载体材料的研究进展[J].中国生物制品学, 2024, 37(9): 1140-1145, 1151.
SHANG J M, ZHAO J, CHANG L, et al. Research progress in nano-vaccine carrier materials[J]. Chinese Journal of Biologicals, 2024, 37(09): 1140-1145, 1151. (in Chinese)
[14] 刘家兴, 韩雪英, 张鑫茹, 等.携带猪流行性腹泻病毒抗原表位的铁蛋白纳米颗粒制备与免疫原性分析[J].中国畜牧兽医, 2023, 50(4): 1567-1574.
LIU J X, HAN X Y, ZHANG X R, et al. Preparation and immunogenicity analysis of ferritin nanoparticles carrying antigenic epitopes of porcine epidemic diarrhea virus[J]. China Animal Husbandry and Veterinary Medicine, 2023, 50(4): 1567-1574. (in Chinese)
[15] 张昱, 王永录, 张永光, 等.口蹄疫病毒结构蛋白VP1上B细胞表位的筛选鉴定[J].华北农学报，2009, 24(5): 81-85.
ZHANG Y, WANG Y L, ZHANG Y G, et al. Screening and identification of B cell epitopes of VP1 of foot-and-mouth disease virus[J]. Acta Agriculturae Boreali-Sinica, 2009, 24(5): 81-85. (in Chinese)
[16] 娄慧.口蹄疫A型病毒A/WH/09株结构蛋白主要B细胞表位的筛选及鉴定[D]. 兰州:甘肃农业大学, 2011.
LOU H. Screening and identification of B cell epitopes of structural protein of foot-and-mouth disease virus type A Strain A/WH/09[D]. Lanzhou: Gansu Agricultural University, 2011. (in Chinese)
[17] 李研, 徐翠香, 黄晓燕, 等.优化硫酸铵法纯化单克隆抗体[J].药物生物技术, 2022, 29(4): 358-361.
LI Y, XU C X, HUANG X Y, et al. Optimized ammonium sulfate method for purification of monoclonal antibodies[J]. Pharmaceutical Biotechnology, 2022, 29(4): 358-361. (in Chinese)
[18] 孙静, 周国辉, 王幸, 等.抗A型口蹄疫病毒单克隆抗体的制备及抗原捕获ELISA检测方法的建立[J].中国预防兽医学报,2013,35(2):146-150.
SUN J, ZHOU G H, WANG X, et al. Preparation of monoclonal antibody against foot and mouth disease virus serotype A and establishment of antigen capture ELISA[J]. Chinese Journal of Preventive Veterinary Medicine, 2013, 35(2): 146-150. (in Chinese)
[19] 颜健华, 何奇松, 蒋家霞, 等. A型口蹄疫病毒VP1蛋白竞争ELISA检测方法的初步建立[J].西南农业学报, 2015, 28(5): 2268-2272.
YAN J H, HE Q S, JIANG J X, et al. Establishment of competitive ELISA diagnose based on VP1 protein of foot and mouth disease virus serotype A[J]. Southwest China Journal of Agricultural Sciences, 2015, 28(5): 2268-2272. (in Chinese)
[20] 周广青, 刘晓庆, 史喜绢, 等.口蹄疫病毒抗体SA-ELISA快速检测方法的建立[J].畜牧兽医学报, 2023, 54(5): 2020-2029.
ZHOU G Q, LIU X Q, SHI X J, et al. Establishment of a rapid detection SA-ELISA method for antibodies against foot-and-mouth disease virus[J]. Acta Veterinaria et Zootechnica Sinica, 2023, 54(5): 2020-2029. (in Chinese)
[21] 孙雨, 宋晓晖, 王睿男, 等. A型口蹄疫病毒抗体化学发光免疫分析检测方法的建立[J].动物医学进展, 2020, 41(8): 29-36.
SUN Y, SONG X H, WANG R N, et al. Establishment of chemiluminescent immunoassay for detection of type A FMDV antibody[J]. Progress in Veterinary Medicine, 2020, 41(08): 29-36. (in Chinese)
[22] 张越, 茹毅, 郝荣增, 等.铁蛋白纳米颗粒在生物领域的应用[J].生物工程学报, 2025, 41(7)：2501-2518.
ZHANG Y, RU Y, HAO R Z, et al. Applications of ferritin nanoparticles in biological fields[J]. Chinese Journal of Biotechnology, 2025, 41(7)：2501-2518. (in Chinese)
[23] XIANG S D, SCHOLZEN A, MINIGO G, et al. Pathogen recognition and development of particulate vaccines: does size matter?[J]. Methods, 2006, 40(1): 1-9.
[24] 张伟业, 宋浩志, 刘兴健, 等.铁蛋白与口蹄疫病毒VP1在大肠杆菌中融合表达及纳米颗粒自组装[J].生物技术通报, 2021, 37(2): 96-102.
ZHANG W Y, SONG H Z, LIU X J, et al. Fusion expression of ferritin and foot-and-mouth disease virus VP1 in Escherichia coli and self-assembly of nanoparticles[J]. Biotechnology Bulletin, 2021, 37(2): 96-102. (in Chinese)
[25] KANEKIYO M, WEI C J, YASSINE H M, et al. Self-assembling influenza nanoparticle vaccines elicit broadly neutralizing H1N1 antibodies[J]. Nature, 2013, 499(7456): 102-106.
[26] 柳方方.胃蛋白酶原I磁微粒化学发光检测方法的建立与应用评价[D]. 广州:华南理工大学, 2021.
LIU F F. Establishment and evaluation of the magnetic particle-based chemiluminescence immunoassay for pepsinogen I [D]. Guangzhou: South China University of Technology, 2021. (in Chinese)
[27] 吕东川, 贺敏, 李竹青, 等.吖啶酯标记建立血清透明质酸磁微粒化学发光检测方法[J].标记免疫分析与临床, 2022, 29(3): 478-482, 500.
Lü D C, HE M, LI Z Q, et al. The establishment of a serum hyaluronic acid magnetic particle chemiluminescence assay with acridinium ester labeling[J]. Labeled Immunoassays and Clinical Medicine, 2022, 29(3): 478-482, 500. (in Chinese)
[28] 李慧杰, 周佩洋, 杨进波, 等.基于化学发光磁微粒免疫分析技术检测血清Lp-PLA2浓度[J].标记免疫分析与临床,2023,30(9):1571-1576.
LI H J, ZHOU P Y, YANG J B, et al. The detection of the concentration of Lp-PLA2 in serum based on magnetic particle chemiluminescence immunoassay[J]. Labeled Immunoassays and Clinical Medicine, 2023, 30(9): 1571-1576. (in Chinese)
[29] 唐洁, 莫绪, 张启韩.磁微粒化学发光法在食品中百草枯残留量检测的应用研究[J].食品安全导刊,2022 (14):101-104.
TANG J, MO X, ZHANG Q H. Application of magnetic particle luminescence technology in the detection of paraquat residues in food[J]. China Food Safety Magazine, 2022 (14): 101-104. (in Chinese)
[30] 朱冰.猪伪狂犬病抗体磁微粒化学发光检测方法的建立及初步应用[D].哈尔滨:中国农业科学院, 2020.
ZHU B. Establishment and preliminary application of a magnetic particle chemiluminescence assay for detecting antibodies against swine pseudorabies virus[D]. Harbin: Chinese Academy of Agriculture Sciences, 2020.
[31] 向国庆, 宋帅, 温肖会, 等.管式磁微粒非洲猪瘟病毒pp62蛋白化学发光抗体检测方法的建立[J].微生物学通报, 2023, 50(12): 5614-5624.
XIANG G Q, SONG S, WEN X H, et al. Progress of chemiluminescence immunoassay and its application in the detection of animal production[J]. Chinese Veterinary Science, 2023, 53(10): 1320-1325. (in Chinese)
[32] 马晓莉, 李段, 曾道平, 等.非洲猪瘟病毒p72蛋白抗体全自动化学发光酶免疫检测方法的建立[J].畜牧兽医学报, 2025, 56(3): 1355-1365.
MA X L, LI D, ZENG D P, et al. Establishment of a fully automated chemiluminescent enzyme immunoassay for detecting antibodies against African swine fever virus p72[J]. Acta Veterinaria et Zootechnica Sinica, 2025, 56(3): 1355-1365. (in Chinese)
