禽4型腺病毒单克隆抗体的制备、鉴定与初步应用

doi:10.11843/j.issn.0366-6964.2025.05.033

摘要/Abstract

摘要：

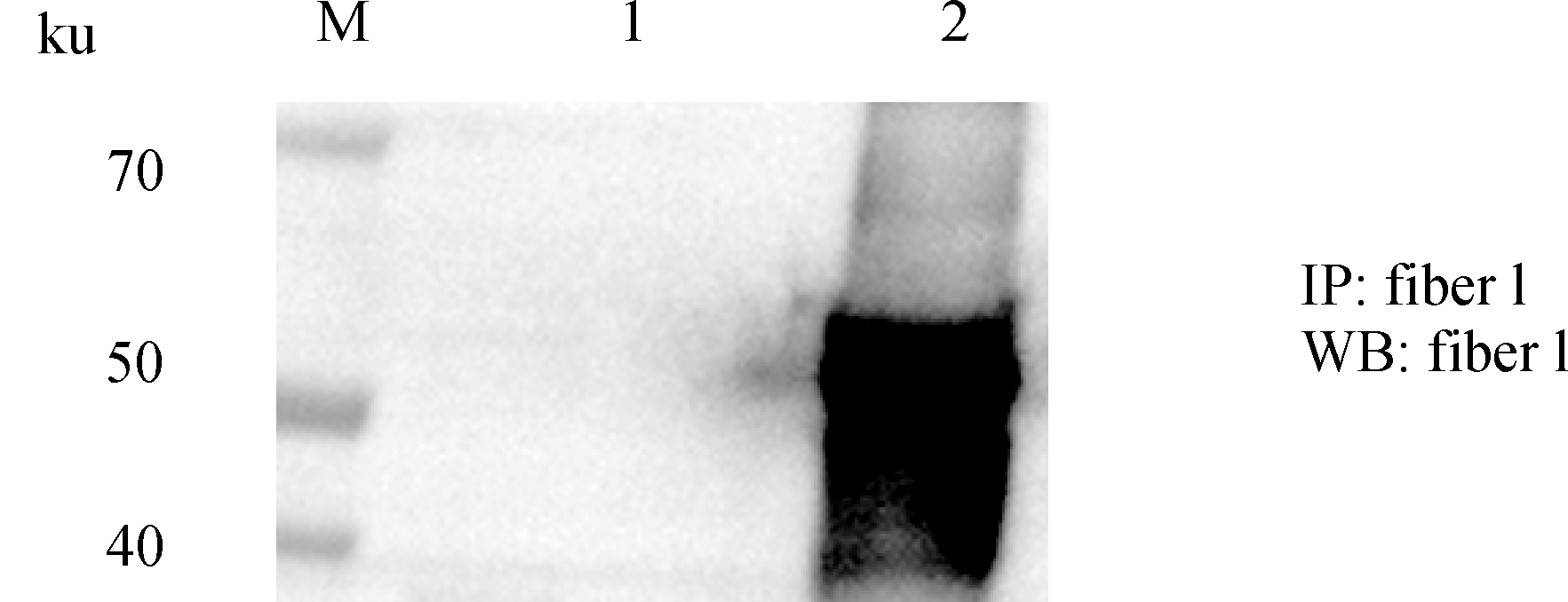

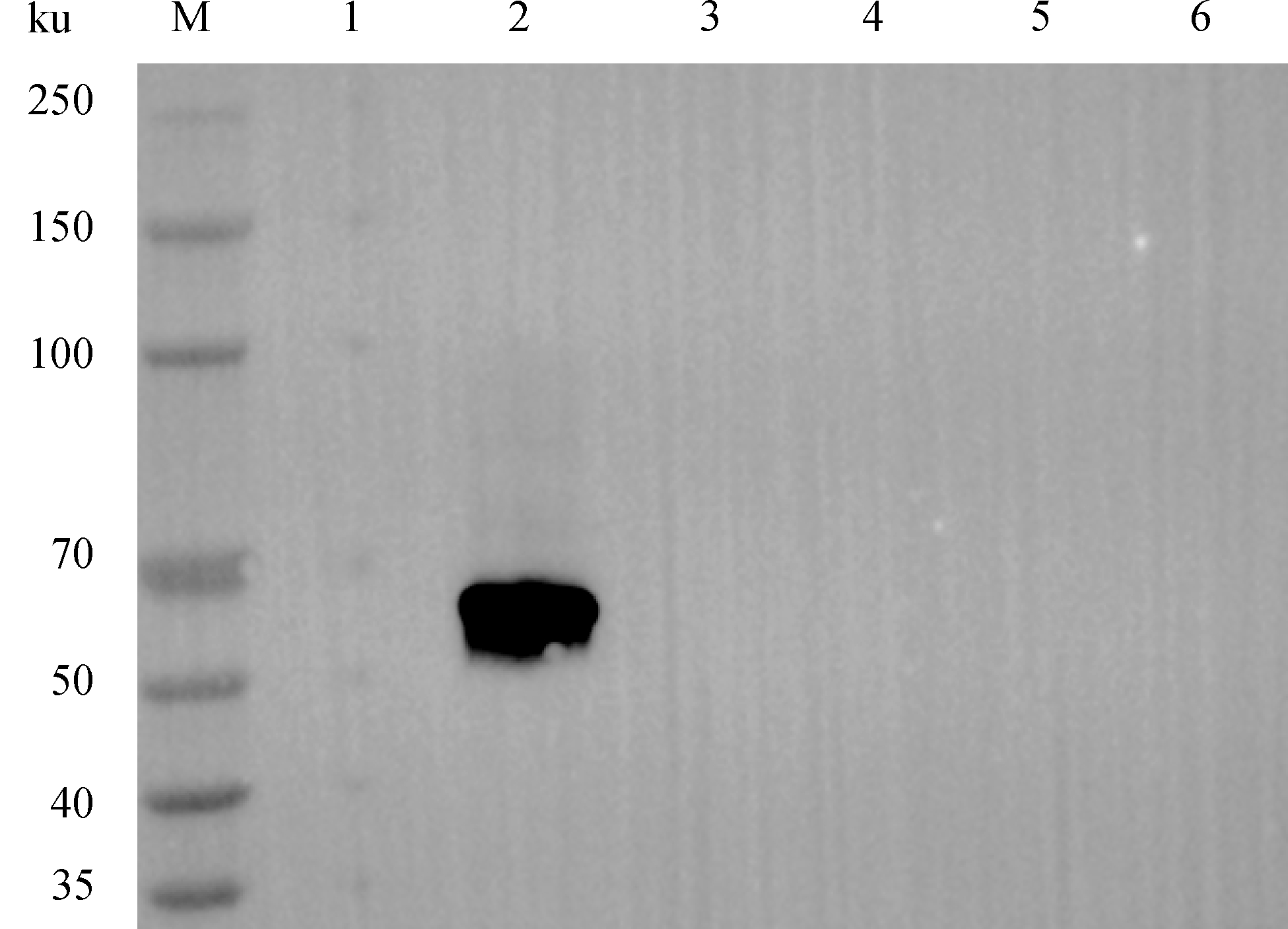

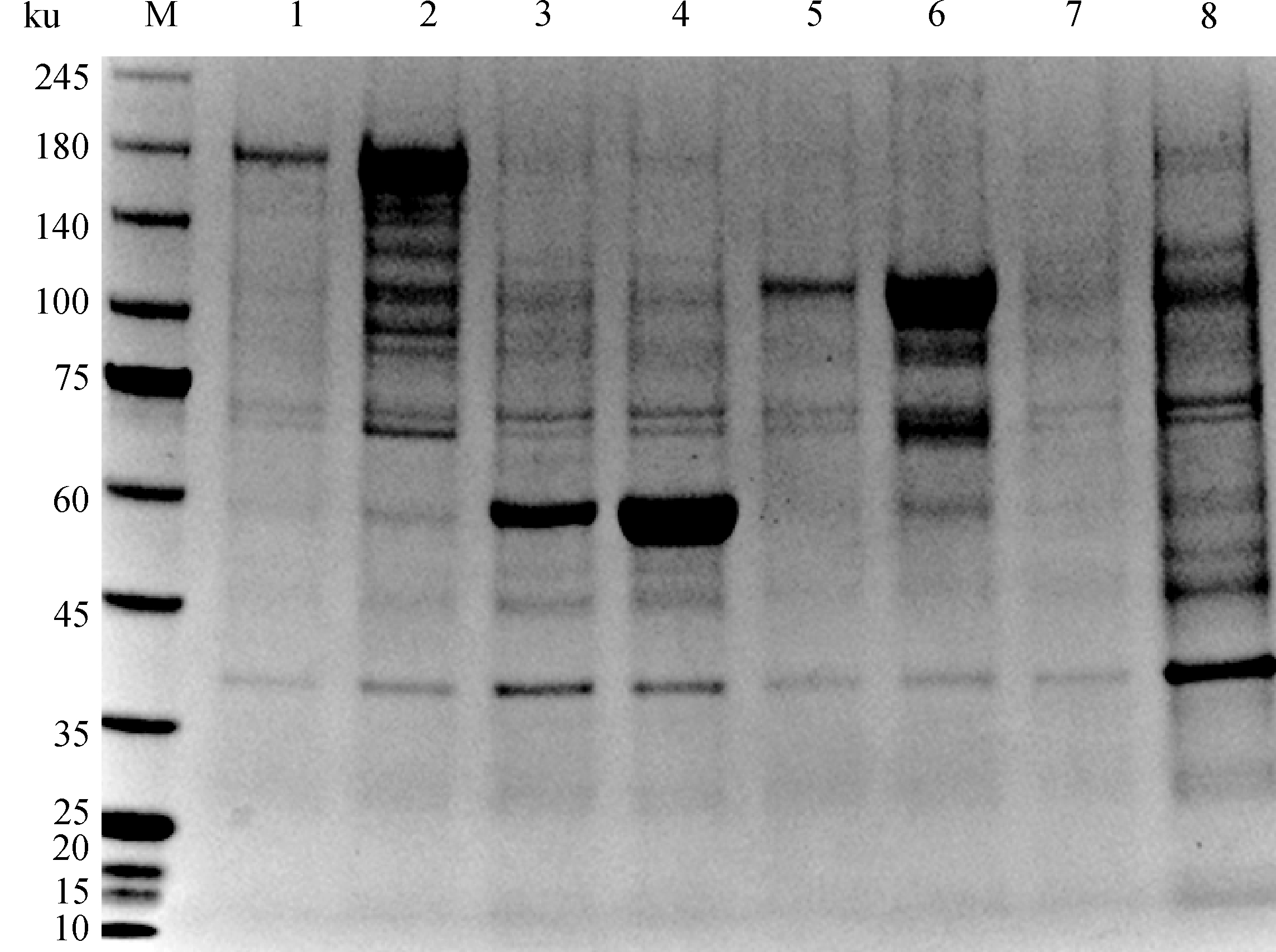

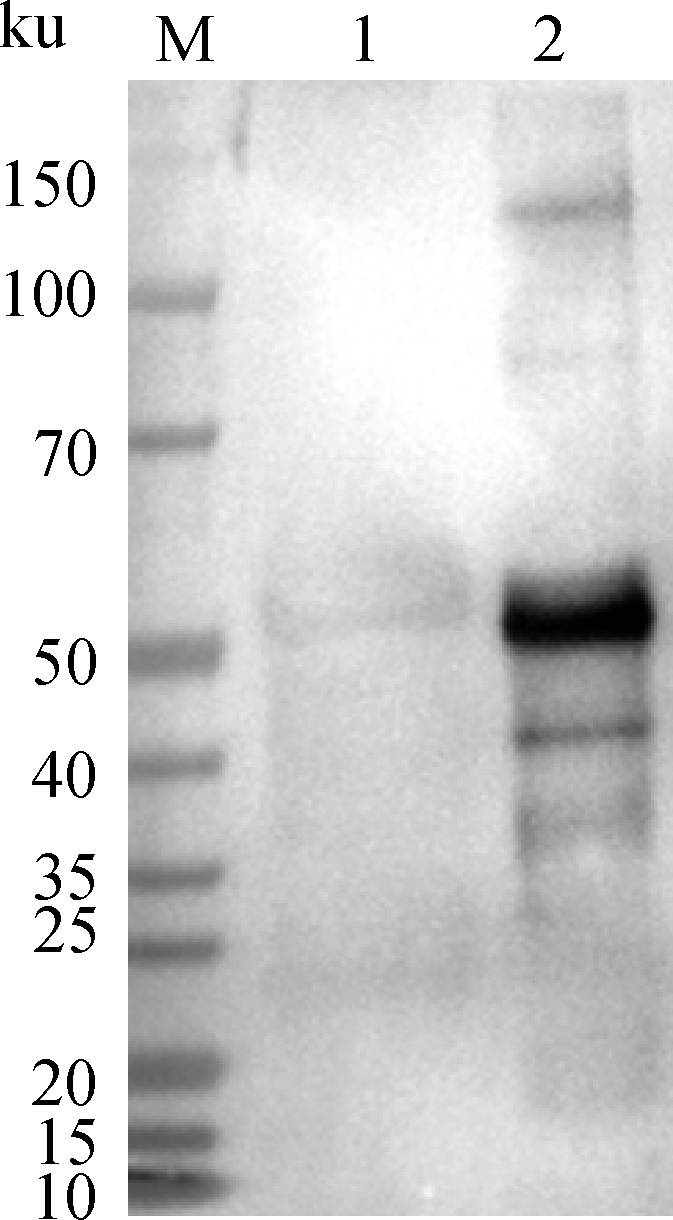

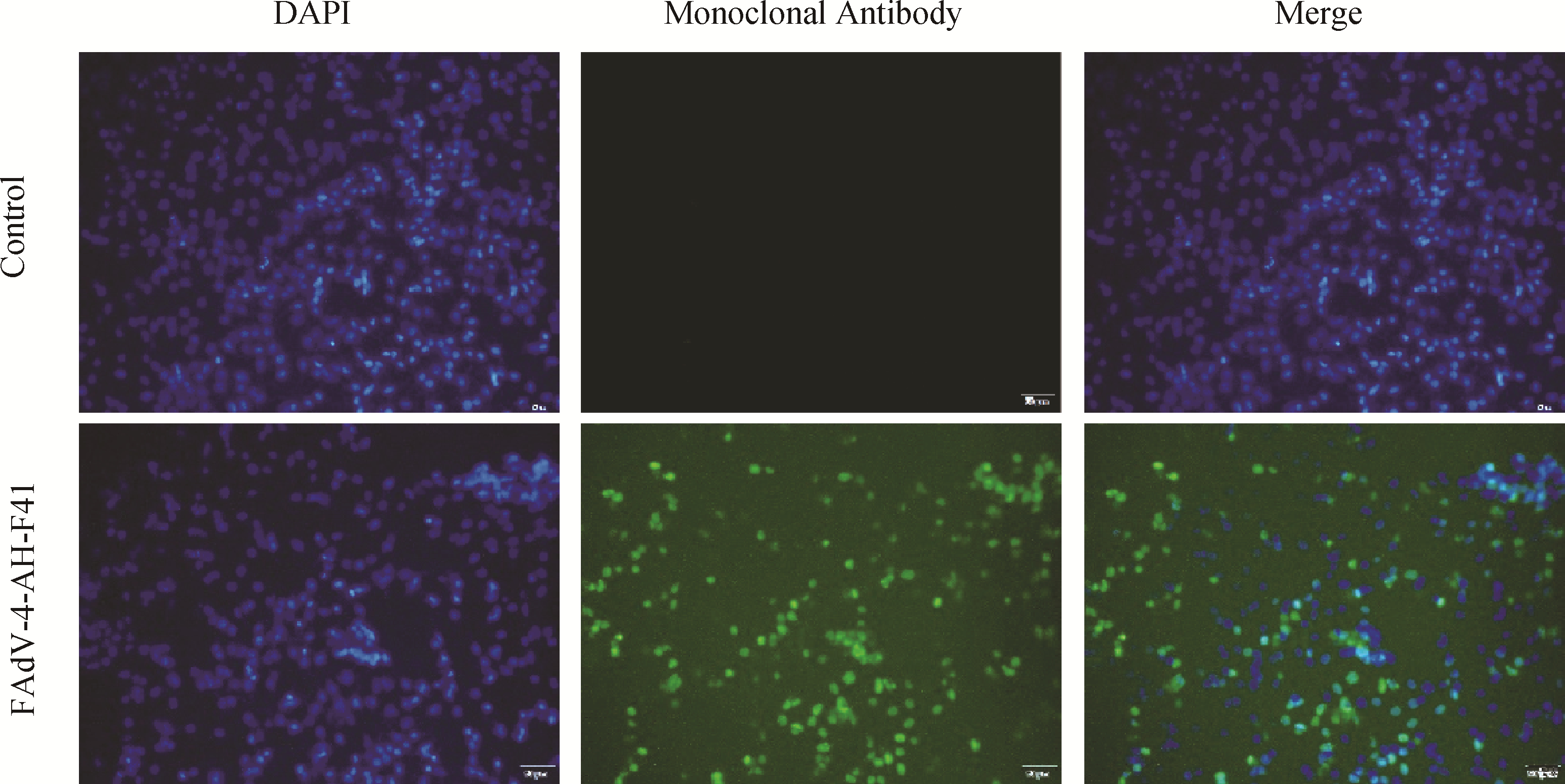

本研究旨在制备禽4型腺病毒(fowl adenovirus type 4，FAdV-4)的单克隆抗体，鉴定其特异性结合位点，并评估其在免疫组化(immunohistochemistry，IHC)和免疫沉淀反应中的应用价值。使用纯化的FAdV-4-AH-F41株全病毒免疫小鼠，通过间接酶联免疫吸附试验(enzyme linked immunosorbent assay, ELISA)方法筛选出一株阳性杂交瘤细胞并进行亚克隆，并对所制备的单克隆抗体进行效价检测。利用间接免疫荧光(indirect immunofluorescence assay, IFA)与蛋白免疫印迹(Western blot)方法鉴定单克隆抗体生物学特性，构建了pCold TF-Hexon、pET-32a(+)-Fiber1、pCold TF-Penton、pCold TF-Fiber2的原核表达载体，并通过Western blot初步鉴定所得单克隆抗体的特异性结合位点，在检测出抗体的亚型后，将其初步应用于IHC和免疫沉淀试验。结果表明本试验获得1株稳定分泌抗Fiber1蛋白的单克隆抗体，并将其命名为5C7。该抗体效价为1∶102 400，亚型为IgG-2b，表现出良好的生物学特性。在IHC中，能够观察到明显的病变特征；在免疫沉淀试验中，5C7可作为捕获抗体，与病毒感染细胞中的Fiber1蛋白特异性结合。结果提示，本试验通过全病毒粒子免疫小鼠所制备的单克隆抗体能够特异性识别Fiber1蛋白，并在IHC和免疫沉淀反应中显示出良好的应用前景，为FAdV-4实验室病理诊断方法的建立和Fiber1蛋白的功能研究奠定了基础。

关键词: 血清4型禽腺病毒, 单克隆抗体, 抗体鉴定, Fiber1蛋白, IHC, 免疫共沉淀

Abstract:

The aim of this study was to prepare a monoclonal antibody to avian adenovirus type 4 (FAdV-4), to characterize its specific binding site, and to evaluate its value for use in immunohistochemistry (IHC) and immunoprecipitation reactions. Mice were immunized with purified FAdV-4-AH-F41 whole virus, a positive hybridoma cell line was screened and subcloned by indirect enzyme linked immunosorbent assay (ELISA), and the prepared monoclonal antibody was tested for potency. Indirect immunofluorescence assay (IFA) and protein immunoblotting (Western blot) were used to characterize the biological properties of the monoclonal antibodies. pCold TF-Hexon, pET-32a(+)-Fiber1, pCold TF-Penton, pCold TF-Fiber2 prokaryotic expression vectors, and the specific binding sites of the resulting monoclonal antibodies were preliminarily characterized by Western blot, and after the subtypes of the antibodies were detected, they were initially applied to IHC and immunoprecipitation experiments. The results showed that a monoclonal antibody strain with stable secretion of anti-Fiber1 protein was obtained in this experiment, and it was named 5C7. The antibody had a potency of 1∶102 400, and its subtype was IgG-2b, which showed good biological properties. In IHC, obvious lesion characteristics could be observed; in immunoprecipitation experiments, 5C7 could act as a capture antibody and bind specifically to the Fiber1 protein in virus-infected cells. The results suggest that the monoclonal antibody prepared in this experiment by immunizing mice with whole virus particles can specifically recognize the Fiber1 protein and shows good application prospects in IHC and immunoprecipitation reactions, which lays the foundation for the establishment of laboratory pathological diagnosis methods of FAdV-4 and the functional study of Fiber1 protein.

Key words: serotype 4 of fowl adenovirus, monoclonal antibody, antibody identification, fiber 1 protein, IHC, immunoprecipitation

中图分类号:

S852.659.1

张宇, 程凡玉, 俞赵荣, 邵颖, 魏宁波, 陈芳芳, 王振宇, 宋祥军, 涂健, 祁克宗. 禽4型腺病毒单克隆抗体的制备、鉴定与初步应用[J]. 畜牧兽医学报, 2025, 56(5): 2364-2371.

ZHANG Yu, CHENG Fanyu, YU Zhaorong, SHAO Ying, WEI Ningbo, CHEN Fangfang, WANG Zhenyu, SONG Xiangjun, TU Jian, QI Kezong*. Preparation, Identification, and Preliminary Application of Monoclonal Antibodies against Fowl Adenovirus Serotype 4[J]. Acta Veterinaria et Zootechnica Sinica, 2025, 56(5): 2364-2371.

图/表 7

表 1

图 1

图 2

图 3

图 4

图 5

图 6

参考文献 30

1	LIU A , ZHANG Y , CUI H , et al. Advances in vaccine development of the emerging novel genotype fowl adenovirus 4[J]. Front Immunol, 2022, 13, 916290. doi: 10.3389/fimmu.2022.916290
2	王白玉, 黄庆, 乔麒龙, 等. 表达FAdV-8b Fiber蛋白重组FAdV-4的构建与鉴定[J]. 中国兽医学报, 2022, 42 (2): 230- 236.
	WANG B Y , HUANG Q , QIAO Q L , et al. Construction and identification of recombinant fowl adenovirus 4 expressing the fiber gene of fowl adenovirus 8b[J]. Chinese Journal of Veterinary Science, 2022, 42 (2): 230- 236.
3	ASTHANA M , CHANDRA R , KUMAR R . Hydropericardium syndrome: current state and future developments[J]. Arch Virol, 2013, 158 (5): 921- 931. doi: 10.1007/s00705-012-1570-x
4	KöHLER G , MILSTEIN C . Derivation of specific antibody-producing tissue culture and tumor lines by cell fusion[J]. Eur J Immunol, 1976, 6 (7): 511- 519. doi: 10.1002/eji.1830060713
5	MO J . Historical investigation of fowl adenovirus outbreaks in South Korea from 2007 to 2021: A comprehensive review[J]. Viruses, 2021, 13 (11): 2256. doi: 10.3390/v13112256
6	RASHID F , XIE Z , ZHANG L , et al. Genetic characterization of fowl aviadenovirus 4 isolates from Guangxi, China, during 2017-2019[J]. Poult Sci, 2020, 99 (9): 4166- 4173. doi: 10.1016/j.psj.2020.06.003
7	王晓语. 辽宁地区两株FAdV-4分离鉴定及Penton、Fiber1和Fiber2基因遗传进化分析[D]. 沈阳: 沈阳农业大学, 2019.
	WANG X Y. Identification of two FAdV-4 isolates and analysis of genetic evolution of Penton, Fiber1 and Fiber2 genes in Liaoning[D]. Shenyang: Shenyang Agricultural University, 2019. (in Chinese)
8	JIA Z , MA C , YANG X , et al. Oral immunization of recombinant Lactococcus lactis and Enterococcus faecalis expressing dendritic cell targeting peptide and Hexon protein of fowl adenovirus 4 induces protective immunity against homologous infection[J]. Front Vet Sci, 2021, 8, 632218. doi: 10.3389/fvets.2021.632218
9	WANG Z , ZHAO J . Pathogenesis of hypervirulent fowl adenovirus serotype 4: The contributions of viral and host factors[J]. Viruses, 2019, 11 (8): 741. doi: 10.3390/v11080741
10	ROBERTS DM , NANDA A , Havenga MJ , et al. Hexon-chimaeric adenovirus serotype 5 vectors circumvent pre-existing anti-vector immunity[J]. Nature, 2006, 441 (7090): 239- 243. doi: 10.1038/nature04721
11	PALLISTER J , WRIGHT PJ , SHEPPARD M . A single gene encoding the fiber is responsible for variations in virulence in the fowl adenoviruses[J]. J Virol, 1996, 70 (8): 5115- 22. doi: 10.1128/jvi.70.8.5115-5122.1996
12	ZHANG W , GUO X , YIN F , et al. Fiber modifications enable fowl adenovirus 4 vectors to transduce human cells[J]. J Gene Med, 2021, 23 (10): e3368. doi: 10.1002/jgm.3368
13	WANG X , LI D , DENG Y , et al. Molecular characterization and pathogenicity of a fowl adenovirus serotype 4 isolated from peacocks associated with hydropericardium hepatitis syndrome[J]. Infect Genet Evol, 2021, 90, 104766. doi: 10.1016/j.meegid.2021.104766
14	方天, 李乔斌, 冯孝傲, 等. 禽腺病毒4型Penton和Fiber1蛋白原核表达及多克隆抗体的制备[J]. 畜牧与兽医, 2024, 56 (3): 54- 61.
	FANG T , LI Q B , FENG X A , et al. Prokaryotic expression of FAdV-4 Penton and Fiber1 protein and preparation of polyclonal antibodies[J]. Animal Husbandry & Veterinary Medicine, 2024, 56 (3): 54- 61.
15	郭瑞珍, 苏冰倩, 王棋, 等. 禽腺病毒血清4型Fiber2蛋白单克隆抗体制备及其抗原表位鉴定[J]. 畜牧兽医学报, 2021, 52 (7): 2000- 2012.
	GUO R Z , SU B Q , WANG Q , et al. Preparation of the monoclonal antibody against the serotype 4 fowl adenovirus fiber2 protein and identification of the antigenic epitope[J]. Acta Veterinaria et Zootechnica Sinica, 2021, 52 (7): 2000- 2012.
16	SHAO H , LU Y , WANG W , et al. Two novel monoclonal antibodies against fiber-1 protein of FAdV-4 and their application in detection of FAdV-4/10[J]. BMC Vet Res, 2019, 15 (1): 232. doi: 10.1186/s12917-019-1987-5
17	迟丽丽, 王君娜, 张宇名, 等. 禽腺病毒4型fiber-2与8b型fiber截短融合蛋白的原核表达及其免疫原性分析[J]. 畜牧兽医学报, 2023, 54 (12): 5162- 5170.
	CHI L L , WANG J N , ZHANG Y M , et al. Prokaryotic expression and immunogenicity analysis of truncated fusion protein of FAdV-4 fiber2 and FAdV-8b fiber[J]. Acta Veterinaria et Zootechnica Sinica, 2023, 54 (12): 5162- 5170.
18	蒋凤英, 邹勇, 何锡忠, 等. 猪传染性胃肠炎病毒纯化方法的选择与优化[J]. 江西农业学报, 2010, 22 (8): 129- 131.
	JIANG F Y , ZOU Y , HE X Z , et al. Optimization of porcine transmissible gastroenteritis virus purification[J]. Acta Agriculturae Jiangxi, 2010, 22 (8): 129- 131.
19	刘靖, 钟杰, 陈伟业, 等. 非洲猪瘟病毒p30蛋白的真核表达纯化及单克隆抗体的制备[J]. 中国预防兽医学报, 2021, 43 (10): 1074- 1079.
	LIU J , ZHONG J , CHEN W Y , et al. Eukaryotic expression of African swine fever virus p30 protein and preparation of monoclonal antibody[J]. Chinese Journal of Preventive Veterinary Medicine, 2021, 43 (10): 1074- 1079.
20	赵少若, 郝丽影, 王同燕, 等. 猪瘟病毒E2蛋白单克隆抗体的制备及阻断ELISA抗体检测方法的建立[J]. 畜牧与兽医, 2020, 52 (11): 60- 66.
	ZHAO S R , HAO L Y , WANG T Y , et al. Development of monoclonal antibody against E2 protein of classical swine fever virus(CSFV) and establishment of blocking ELISA for detection antibodies[J]. Animal Husbandry & Veterinary Medicine, 2020, 52 (11): 60- 66.
21	白晶晶, 宋欢欢, 白晨雨, 等. 非洲猪瘟病毒p17蛋白单克隆抗体的制备与鉴定[J]. 河南农业科学, 2020, 49 (12): 137- 143.
	BAI J J , SONG H H , BAI C Y , et al. Preparation and identification of monoclonal antibody against African swine fever virus p17 protein[J]. Journal of Henan Agricultural Sciences, 2020, 49 (12): 137- 143.
22	李云霞, 司静, 李煜. 狂犬疫苗单克隆抗体制备过程中细胞融合条件的探索[J]. 生物技术通报, 2010 (12): 167-172, 177.
	LI Y X , SI J , LI Y . A Study on the fusion frequency in the process of preparation and application on monoclonal antibodies against rabies virus[J]. Biotechnology Bulletin, 2010 (12): 167-172, 177.
23	汪国强, 刘建平, 周航. 单克隆抗体Mab-A生产细胞Sp2/0缩小模型培养优化研究[J]. 中国生物工程杂志, 2018, 38 (6): 63- 69.
	WANG G Q , LIU J P , ZHOU H . Study on the optimal scale-down model for cell growth and mab-a production of Sp2/0 cells[J]. China Biotechnology, 2018, 38 (6): 63- 69.
24	赵蕾, 李林, 史爱华, 等. 5株Ⅰ群4型禽腺病毒的分离与鉴定[J]. 中国家禽, 2018, 40 (22): 48- 51.
	ZHAO L , LI L , SHI A H , et al. Isolation and characterization of five strains of group Ⅰ type 4 avian adenovirus[J]. China Poultry, 2018, 40 (22): 48- 51.
25	GUO X , CHANG J , LU S , et al. Multiantigen epitope fusion recombinant proteins from capsids of serotype 4 fowl adenovirus induce chicken immunity against avian Angara disease[J]. Vet Microbiol, 2023, 278, 109661.
26	WANG W , LIU Q , LI T , et al. Fiber-1, Not Fiber-2, Directly Mediates the Infection of the Pathogenic Serotype 4 Fowl Adenovirus via Its Shaft and Knob Domains[J]. J Virol, 2020, 94 (17): e00954- 20.
27	CHEN Y , FENG C , HUANG C , et al. Preparation of polyclonal antibodies to chicken P62 protein and its application in nephropathogenic infectious bronchitis virus-infected chickens[J]. Int J Biol Macromol, 2024, 271 (Pt 2): 132515.
28	CARNACCINI S , PALMIERI C , STOUTE S , et al. Infectious laryngotracheitis of chickens: Pathologic and immunohistochemistry findings[J]. Vet Pathol, 2022, 59 (1): 112- 119.
29	HUANG R , HE Q , LU S , et al. Importin alpha 1 is required for the nucleus entry of Fowl Adenovirus serotype 4 Fiber-1 protein[J]. Vet Microbiol, 2022, 266, 109351.
30	GAO S , CHEN H , ZHANG X , et al. Cellular protein HSC70 promotes fowl adenovirus serotype 4 replication in LMH cells via interacting with viral 100K protein[J]. Poult Sci, 2022, 101 (7): 101941.

包被抗原 Coated antigen	血清稀释度Serum dilution degree
包被抗原 Coated antigen	800	1 600	3 200	6 400	12 800	25 600	51 200	102 400	204 800
P	1.11	1.04	0.73	0.54	0.38	0.27	0.18	0.13	0.10
N	0.07	0.06	0.05	0.06	0.05	0.05	0.06	0.06	0.05
P/N	15.07	17.33	14.16	8.78	8.21	5.78	3.10	2.14	1.89
